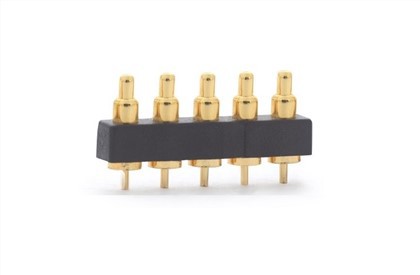

Spring-loaded Plating Gold 5 pin Pogo connector Spring-loaded Plating Gold 5 pin Pogo connector is made of 5 pin pogo pin and a plastic housing for HMI solutions companies and many engineers from...
1) Storage and operating temperature range:-40°C~+85°C 2) Humidity range: 10% RH to 90% RH 3) Salt spray: 48H
Spring-loaded Pogo Pins for Medical Connector Spring-loaded Pogo Pins have the advantages of high precision, small size, durable, high current, waterproof, beautiful appearance, and stable signal...
There are complete production and assembly capabilities, from riveting assembly to packaging and taping. Professional technical team, stable technical support.
Mechanical: 1) Total stroke: 1.10mm. 2) Working position: 4.5mm. 3) Spring Force:75±25gf at working height 4) Mechanical life: 30,000 cycle min.
1) Storage and operating temperature range: -40°C~+85°C 2) Humidity range: 10% RH to 95% RH 3) Salt spray: 48H
High-quality Plating Gold Solder Cup Pogo Pin, has the advantages of high precision, small size, durable, high current, waterproof, beautiful appearance, stable signal transmission, and can be...
Pogo pin electrical Pin gold plated, our electroplating workshop has many mature and stable plating processes, composite plating, and hybrid plating. Conventional plating processes such as Plating...
2 Pin Pogo Pin Charging Pin A pogo pin or spring-loaded pin is a type of electrical connector mechanism that is used in many modern electronic applications and in the electronics testing industry....
Pogo Pin High Current Charging Pin is a ballpoint structure design that can bear high current from 3A-45A, even more than that.
1) Plunger: Brass, Plating Min. 0.25um Au over Min. 1.4um Ni. 2) Barrel: Brass, Min. Plating 0.1um Au over Min. 1.4um Ni. 3) Spring: Stainless steel wire. 4) Housing: PA 4.6 +...
Spring Force at working height: 30~120g Mechanical life: min.10, 000 cycles Plunger: Brass, min. 0.25um Au over min. 1.4um Ni. Barrel: Brass, min. 0.1um Au over min. 1.4um...
