1) Storage and operating temperature range: -40°C~+85°C 2) Humidity range: 10% RH to 95% RH 3) Salt spray: 48H
High-quality Plating Gold Solder Cup Pogo Pin, has the advantages of high precision, small size, durable, high current, waterproof, beautiful appearance, stable signal transmission, and can be...

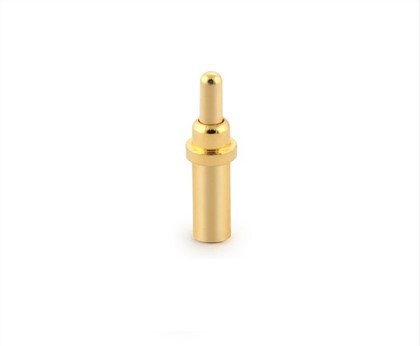

Pogo pin electrical Pin gold plated, our electroplating workshop has many mature and stable plating processes, composite plating, and hybrid plating. Conventional plating processes such as Plating...
2 Pin Pogo Pin Charging Pin A pogo pin or spring-loaded pin is a type of electrical connector mechanism that is used in many modern electronic applications and in the electronics testing industry....
Pogo Pin High Current Charging Pin is a ballpoint structure design that can bear high current from 3A-45A, even more than that.
1) Plunger: Brass, Plating Min. 0.25um Au over Min. 1.4um Ni. 2) Barrel: Brass, Min. Plating 0.1um Au over Min. 1.4um Ni. 3) Spring: Stainless steel wire. 4) Housing: PA 4.6 +...
Spring Force at working height: 30~120g Mechanical life: min.10, 000 cycles Plunger: Brass, min. 0.25um Au over min. 1.4um Ni. Barrel: Brass, min. 0.1um Au over min. 1.4um...
Spring-loaded Pogo pin plated gold 3u" 20u" Electroplating production equipment To better serve customers and ensure the quality of Spring-loaded Pogo pin plated gold , the company has...
So far, the products we have made are from 1-100pin products. 1) Plunger: Brass, Plating Min. 0.25um Au over Min. 1.4um Ni. 2) Barrel: Brass, Min. Plating 0.1um Au over Min. 1.4um...
Free samples, Smallest MOQ< Fast Delivery, Own factory, can be adjustable if urgent Quick response, comfortable communication, constrictive suggestions
1) Plunger: Brass, Plating Min. 0.25um Au over Min. 1.4um Ni. 2) Barrel: Brass, Min. Plating 0.1um Au over Min. 1.4um Ni. 3) Spring: Stainless steel wire. 4) Housing: PA 4.6 +...
Operating Current / Voltage: 1~5A / 5~36V Spring Force at working height: 30~120g Mechanical life: min.30, 000 cycles Plunger: Brass, min. 0.25um Au over min. 1.4um Ni....
