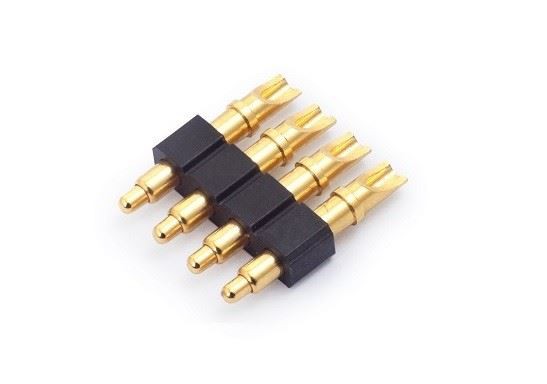

Pogo Pin Solder Cup Plated Gold Pin

Pogo Pin Solder Cup Plated Gold Pin

There are two different design structures of solder-cup pogo pin: flat head and round head，which means that the plunger and the inner part of the solder-cup Pogo pin can have different designs depending on the Actual application and customer demand.

Under normal circumstances, we use a round head structure more. Because it can bear a higher current when charging power.

Characteristics:

Operating Current / Voltage: 1~5A / 5~36V

Spring Force at working height: 30~120g

Mechanical life: min.20, 000 cycles

Plunger: Brass, min. 0.25um Au over min. 1.4um Ni.

Barrel: Brass, min. 0.1um Au over min. 1.4um Ni.

Spring: Stainless steel

A cable Connect a solder-cup pogo pin, which can be welded on the tail and through the internal welding. This is also the biggest difference of this kind since the engineers can choose the suitable design for their programs.

Solder-cup Pogo Pin is a very fine probe, the volume can be very small, so it is used in precision connections The connector can reduce the weight of the connector, save space, and beautify the appearance of products (such as ultra-thin mobile phones, smartwatches, etc.).

Generally, Our Solder-cup Pogo Pin is applied in precision connection in electronic products such as mobile phones, 5G communications, artificial intelligence, TWS Bluetooth headsets, medical equipment, etc.;
