TWS Pogo pin high current charge pin
With the development of smart wearables, TWS (wireless true Bluetooth ) earbuds and headsets, smartwatches, smart bracelets, and fast charging have increased the demand for high-current charge pins for connectors, making the application of pogo pin connectors (spring thimble connectors) more frequent.
Materials and plating for Spring Pogo pins
| Materials and plating for Spring Pogo pins | |||
| plunger | Material | BeCu | Most used material for spring probe for semiconductor. |
| Material | Pd Alloy | Effective for anti-solder migration. No plating is needed. | |
| Plating | Au Alloy | Hardness is higher than Au(Gold) plating and is effective for anti-solder migration. | |
| Plating | Au(Gold) | Good electric conductivity. | |
| Barrel | Material | Copper | Brass, Phosphor Bronze, Nickel Silver, BeCu |
| Material | Alloy | Barrel developed by ourselves. Outer diameter is available from 0.11 to 0.42mm | |
| Plating | Au(Gold) | Good electric conductivity. | |
| Spring | ― | Spring Steel Wire (SWP)（Music Wire） | Operating temperature: -45~125℃ |
| ― | Stainless Steel Wire (SUS) | Operating temperature: -45~140℃ | |
| ― | Stainless Steel Wire for high temperature | Operating temperature: -45~200℃, developed by ZZTKJ. | |

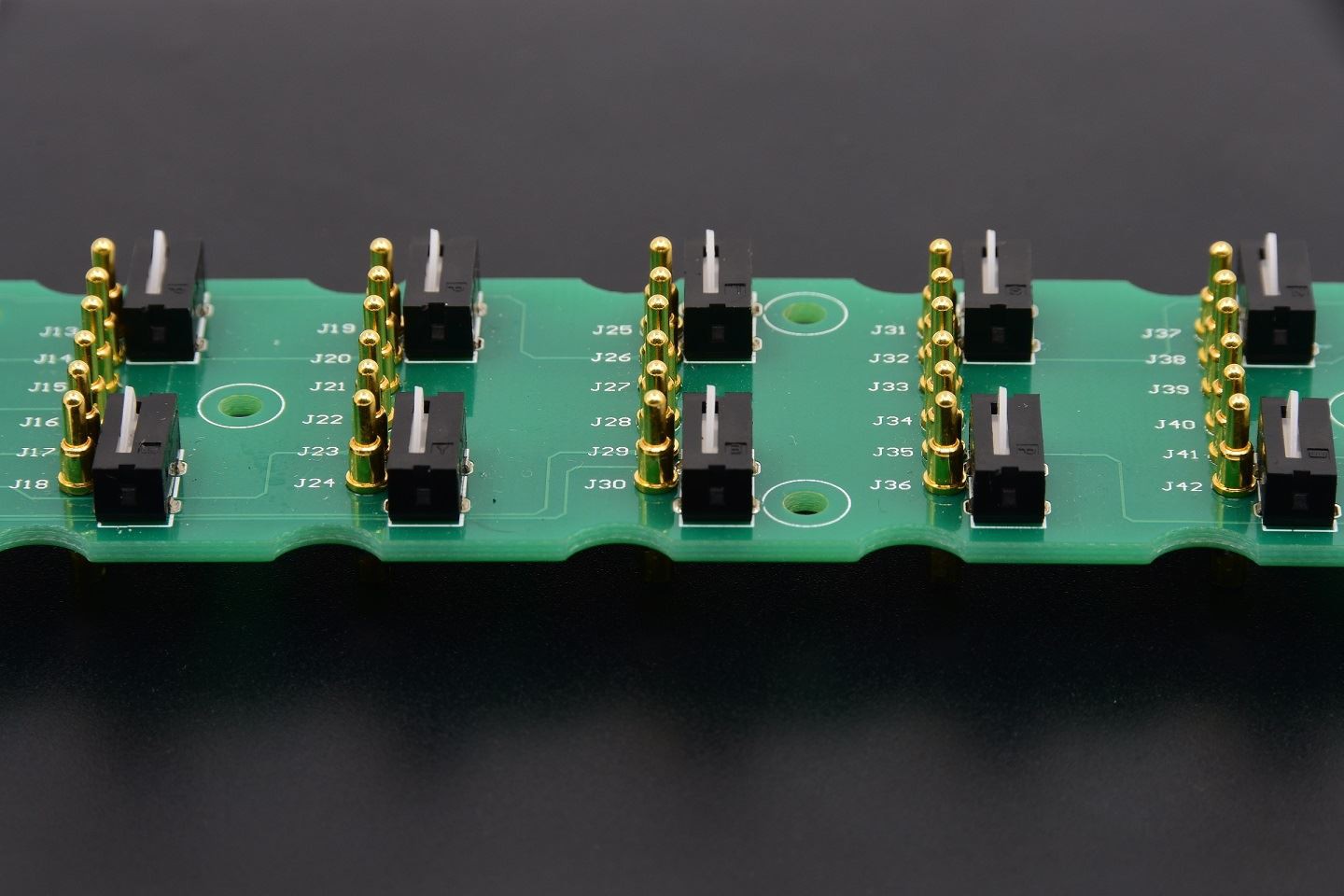

High current charge pin design on PCB board
High current charge pins are always designed by engineers on PCB Board for connectors.
Charing case which the charge pogo pin location
We are a pogo pin technology company and that produces high-quality POGO PIN connectors that integrate design, R&D, manufacturing, electroplating, assembly, packaging, and sales. Now we have applied more for 28 patents, including 10 appearance patents and 8 utility models Has now completed the "National High-tech Enterprise" certification, passed the ISO9001, ISO14001 quality management system, and obtained relevant certificates
More and more product structure engineers are gradually getting to know and understand it. In many high-end product fields, Pogo Pin Connectors are rapidly swallowing and replacing the traditional shrapnel-type connector market, gradually becoming the mainstream of technology! The well-known Apple Inc. has used Pogo Pin Connectors on all series of Mac-Books to realize transmission and conduction, including power supply, data transmission, and signal transmission.
Customers Service
What structural engineers are interested in is its excellent space-saving ability due to the ultra-short and ultra-small size in the design, and the addition of the electroplating process allows our connectors to have excellent conductivity, high-frequency characteristics and extreme In addition to the low on-resistance, the design of the spring in the connector ensures a stable elasticity and life stability of hundreds of thousands! Based on the excellent performance of the Pogo Pin Connector, it is solving the connection technology that the traditional shrapnel connector cannot solve.
