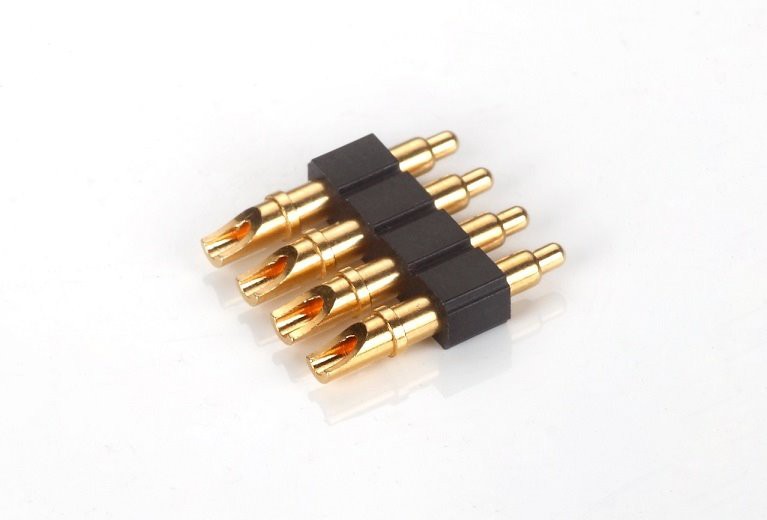

Solder-cup Circuit Pogo Pin

Solder-cup Circuit Pogo Pin

Pogo Pin is a spring-type probe formed by the three basic components of Plunger, Tube, and Spring after being riveted by a precision instrument. It is also called spring probe, and Pogo Pin connector.

Characteristics:

Solder-cup Pogo Pin 4Pins Material

1) Plunger: Brass, Plating Min. 0.25um Au over Min. 1.4um Ni.

2) Barrel: Brass, Min. Plating 0.1um Au over Min. 1.4um Ni.

3) Spring: Stainless steel wire.

4) Housing: A 4.6 + 30% GLASS FIBER; BLACK(UL94V-0)

The bottom of the Solder-cup Pogo Pin's Plunger is usually an inclined structure to ensure that the Plunger contacts with the inner wall of the Tube during work, so that the current mainly passes through the gold-plated Plunger and the Tube to make sure the stability and low impedance of the Pogo Pin.

What structural engineers are interested in Solder-cup Circuit Pogo Pin is its excellent space-saving ability due to the ultra-short and ultra-small size in the design, and the addition of the electroplating process allows our connectors to have excellent conductivity, high-frequency characteristics and extreme In addition to the low on-resistance, the design of the spring in the connector ensures a stable elasticity and life stability of hundreds of thousands.
