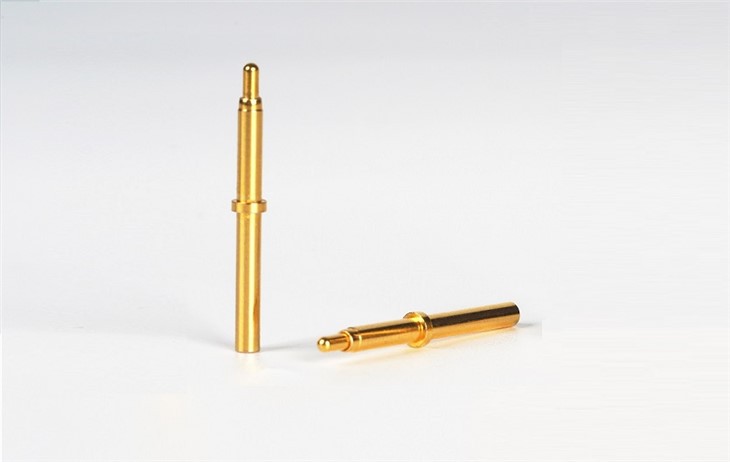

Spring-loaded Micro Pin Pogo Pin Contacts are a spring-type probe formed by the three basic components of Plunger, Tube, and Spring after being riveted by a precision instrument. It is also called spring contact, and Pogo Pin connector.

Plunger： Brass-plated Gold （C3604）. The thickness of the coating changes due to different use occasions. Generally, plating Nickel first 1.25~2.5um(Converted to 50~100µ ”), then plating Gold0.075~0.75um (Converted to 3~30µ ”)

Barrel： Brass plated Gold （C3604）, The thickness of the coating changes due to different use occasions Generally, plating Nickel first 1.25~2.5um(Converted to 50~100µ ”), then plating Gold0.075~0.75um (Converted to 3~30µ ”)

Spring： SUS 304Or beryllium copper

Housing： PA46, PA9T, of which PA4T and LCP are halogen-free materials

There are complete production and assembly capabilities, from riveting assembly to packaging and taping. Professional technical team, stable technical support.

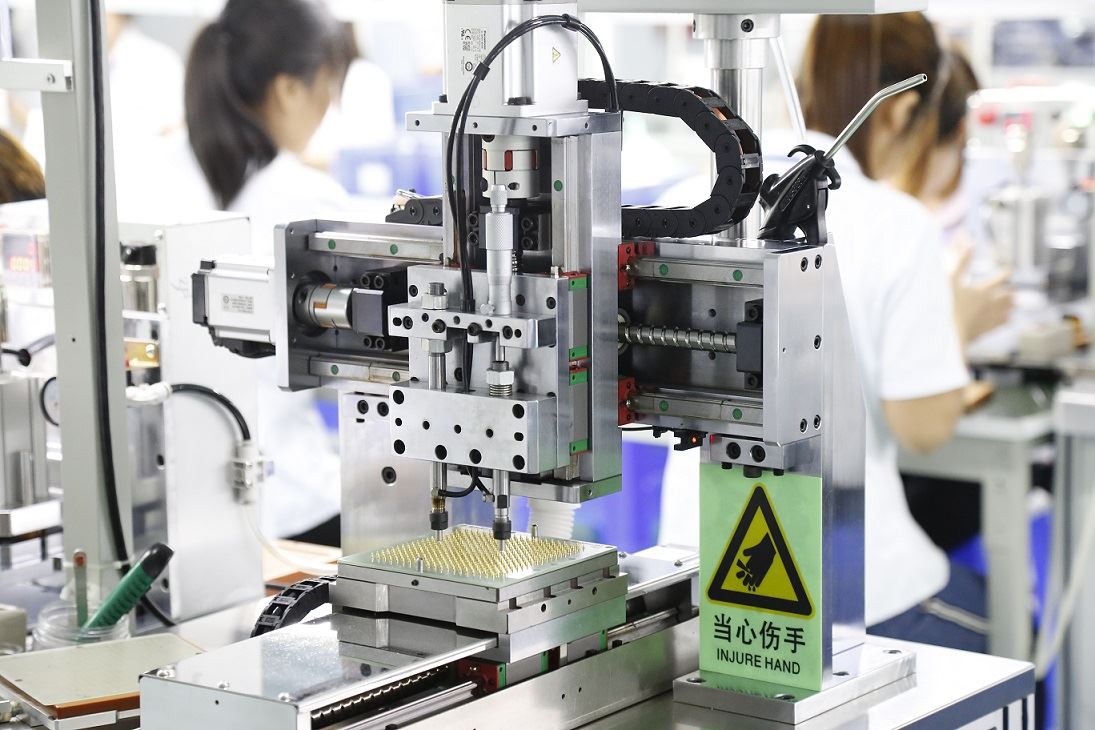

Customized automatic POGO PIN precision riveting machine, higher accuracy, and consistency, shorter delivery cycle, sample delivery only takes 3 to 5 days.

Pogo pin contacts

What structural engineers are looking for is excellent space-saving ability due to the ultra-short and ultra-small size of the design, coupled with the addition and multiplication of electroplating technology; our connector has excellent conductivity, high-frequency characteristics, and very low conduction impedance. In addition, the design of the spring in the connector ensures stable elasticity and hundreds of thousands of life stability! Based on the excellent performance of the pogo pin connector, it is solving the connection technology that traditional spring connectors can't solve.

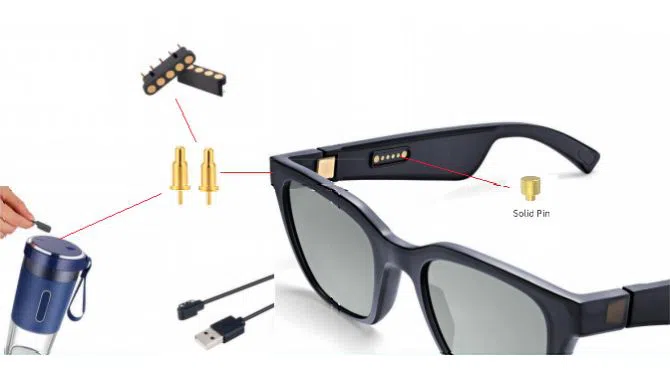

More and more product structure engineers are gradually recognizing and understanding it. In many high-end product areas, the pogo pin connector is rapidly devouring and replacing the traditional fragment connector market, and gradually becoming the mainstream of technology! Famous Apple Inc. has used a pogo pin connectors to realize transmission and conduction on the whole series of matchbooks, including power supply, data transmission, and signal transmission.

✧ As a Chinese technology company that produces high-quality POGO PIN connectors that integrates design, R&D, manufacturing, electroplating, assembly, packaging, and sales. We have been rated as a 5A enterprise in the industry. Passed IS09001 &IS014001 certifications, obtained more than 28 national invention patents, and won the "national high-tech enterprise" certification. We have accumulated a wealth of theoretical and practical experience and can provide customers with complete design and suitable development solutions.
