Spring-loaded Test Pogo Pins

Spring-loaded Test Pogo Pins

Spring-loaded Test Pogo Pins

Material and coating:

Needle: Ph, Au on Ni Plated

Needle i: BeCu, Au on Ni Plated

Needle II: BeCu, Au on Ni Plated

Slingshot: SWP-A/B, Au on Ni Plated

Electronic parameters:

Rated Current: 2 amps

Contact Resistance: 100 mohms max

Bandwidth: 7.3GHz@-1dB

Inductance: 1MHZ@-0.05996uH

Capacitance: 1MHZ@0.425647uF

Spring-loaded Test Pogo Pins

skills requirement:

Full stroke: 1.0mm

Rated stroke: 0.8mm

Rated elastic force: 25±7gf@load 0.80mm

Elastic life: 200,000 cycles

Spring-loaded Test Pogo Pins

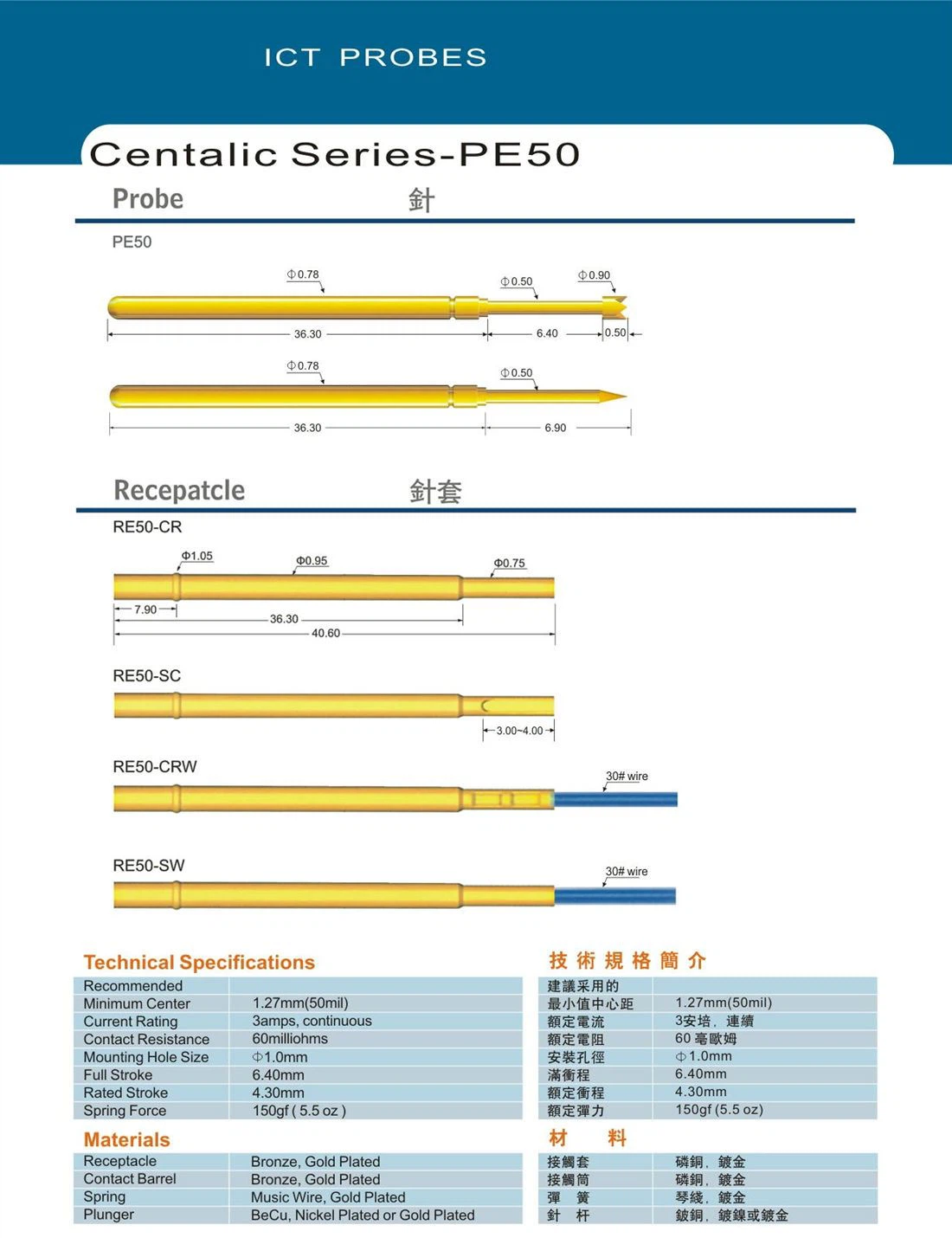

A brief introduction to technical specifications (recommended):

Minimum center-to-center distance: 1.27mm (50mil)

Current Rating: 3 Amps, Continuous

Rated Resistance: 60 milliohms

Mounting hole diameter: ø1.0mm

Full stroke: 6.40mm

Rated stroke: 4.30mm

Rated stretch: 150gf (5.5 oz)

Spring-loaded Test Pogo Pins

Material:

Contact sleeve: phosphor bronze, gold plated

Contact cylinder: phosphor bronze, gold plated

Spring: piano wire, gold plated

Needle Rod: Beryllium Copper, Nickel-plated or Gold-plated

Spring-loaded Test Pogo Pins

• Our strong R&D team provides customers with HIGH QUALITY, COMPETITIVE PRODUCTS, and SERVICES. Meanwhile, we own 37 patent certificates, including POGO PIN CONNECTOR patent certificates. Besides, the whole inspection process is almost handled and operated by automatic inspection testing machines and imported life test machines.

• Our strict procedures and effective testing instruments are in line with the European and RoHS environmental standards, and JIT production management strategy.
