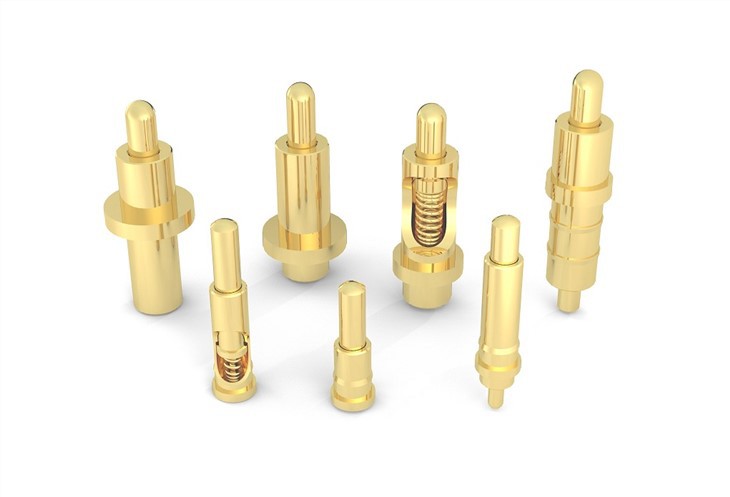

Spring-loaded SMD Pogo Pins Power Spring pins

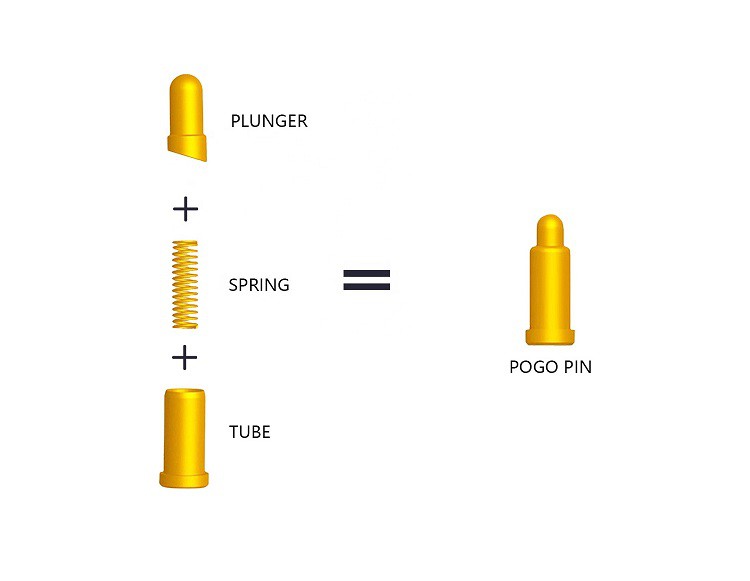

Each spring-loaded PogoPins typically consists of 3 machined parts assembled with internal springs to provide the desired range of motion. All of these components are nickel-plated gold to ensure excellent conductivity, durability, and corrosion resistance over the life of the product.

Spring-loaded Pogo Pin Contacts

Due to the many advantages that spring pins provide, companies in the telecommunications, automotive, medical, transportation, aerospace, and industrial automation industries have discovered the advantages of using spring pins in their designs. Whether your application requires through-hole mounting, surface mount, wire termination, crimping, or alignment capabilities, Spring-Loaded Pogo Pins are available in over 100 styles to ensure you find the right Spring Pin for your design.

Gold Spring

Features of our most spring-loaded Pogo Pins:

. Durable up to 1.000.000 cycles

. Typical contact resistance, intermediate stroke is 20m2

. Tested to at least 50G shock and 10G vibration

. Gold-plated components provide optimum electrical and mechanical performance

. Rated current between 2 and 9 amps continuous @ 10° temperature rise

power spring pins

Spring-loaded SMD Pogo Pins Power Spring pins

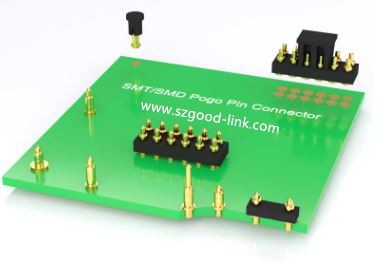

SMD DIP Pogo pin connector Pogo pin Battery Spring Loaded Contact Test Probe Power Charge Header Pins 2.54 Grid 7.0mm High.

Spring-loaded SMD Pogo Pins Power Spring pins

Battery Charge Contact Right Angle SMD PCB Mount Header 2.5MM Pitch 2Pin 3pin 4 Pin Pogo Spring Pin Connector.

Male Pogo Pin (With Spring Loaded)

Female Pad (No Spring Loaded)

1.0 Amps / 12V DC.

Dielectric Withstanding Voltage: 500V AC (RMS)/Minute

Contact Resistance: 30 Millionhms Max.

Pogo Pin for assembly line

Spring-loaded SMD Pogo Pins Power Spring pins

Type: Pin/Socket Serious
Working Frequency: Low
Pin Type: Customized
Shape: Round
Technology: Cold Press
Material: Brass
Rated Voltage: 3.37-36V DC
Rated Current: 0.5--50A continuous per Pin

pogo pin for circuit board
