The surface coating of the 3Pin Side Design Pogo Pin Connector is generally gold-plated, which can better improve its anti-corrosion function, mechanical properties, electrical properties, etc. It is generally used in precision connections in mobile phones, communications, automobiles, medical, aerospace, and other electronic products, which can improve the corrosion resistance, stability, and durability of these connectors. Since POGO PIN is a very fine probe, it can reduce the weight of the connector and the appearance of the volume when used in precision connectors, and make the connector more fine and beautiful.

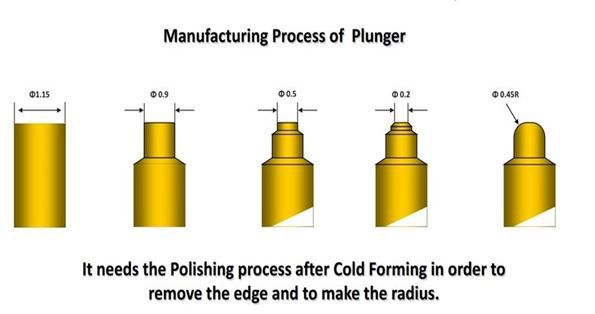

Cold stamping processing can well ensure the precise requirements of slopes and rounded corners. The surface of the product is smooth and uniform, and the dimensional accuracy can reach 0.003mm

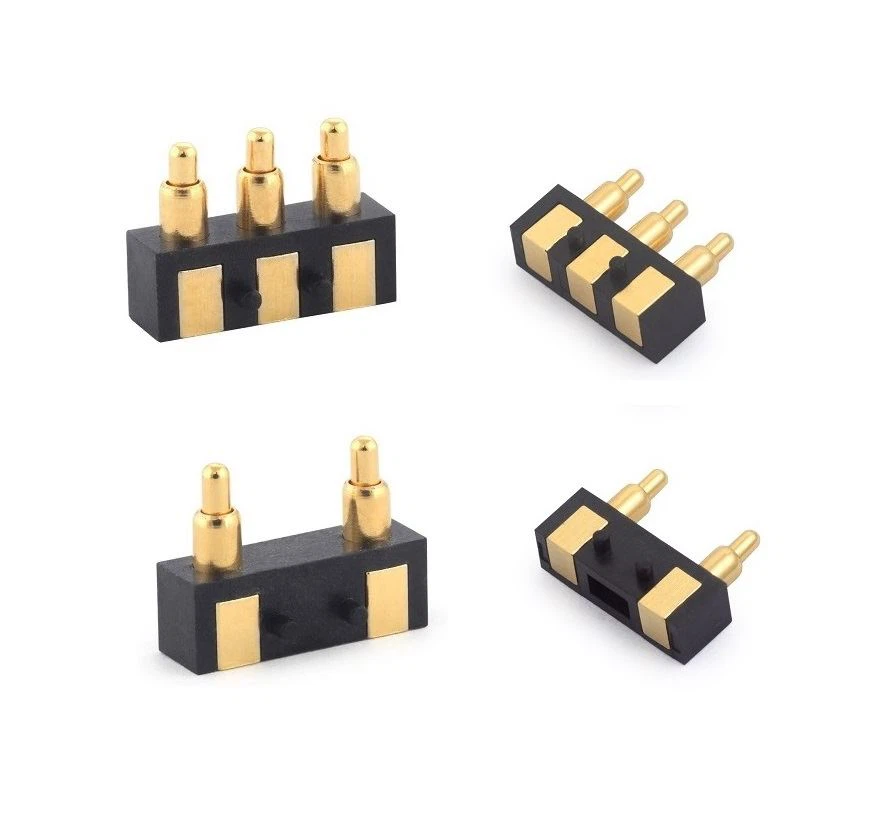

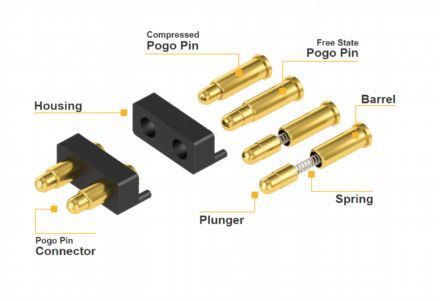

Side design 3pin Pogo Pin connector

Item	Spec.1	Spec.2	Spec.3

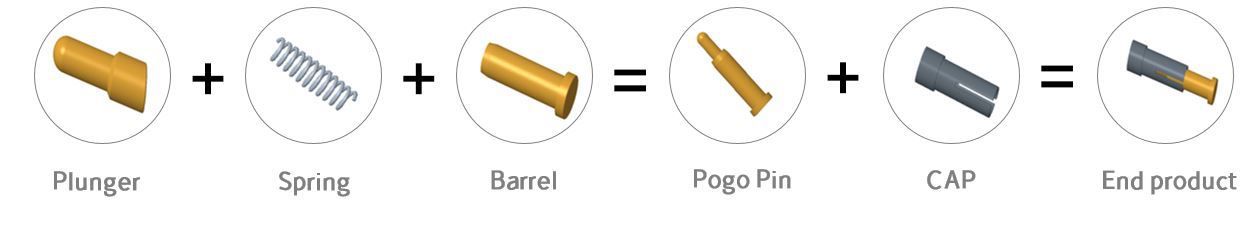

Material	Plunger/Barrel: Brass	Spring: stainless steel
Plating	Barrel: 0.1um gold plated, 1.4um nickel plated	Plunger: 0.4um gold plated, 1.4um nickel plated
Electrical properties	Contact resistance: 30mOhm Max.	Rated voltage: 36V DC Max	Standard current: 2.0A
Mechanical properties	Durability: 10,000 cycle min.

We have applied for more than 28 patents, including 20 appearance patents and 8 utility models as now completed the "National High-tech Enterprise" certification.

✧ Production Technology

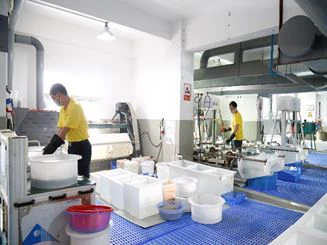

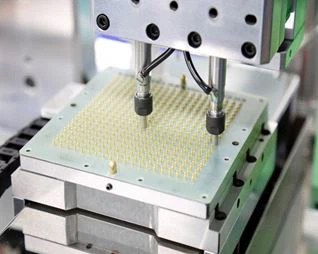

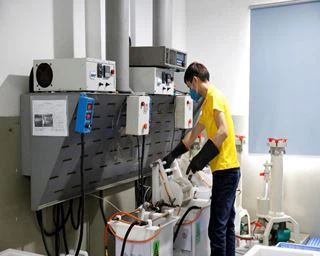

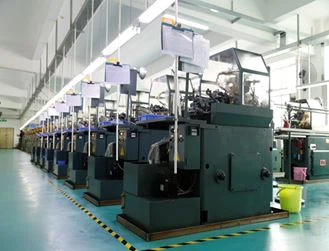

Our company has a complete design and development, production and processing, electroplating, and assembly, from the turning of the material to the surface coating treatment, as well as the final product assembly, reliability testing, and packaging can be completed independently, which can be faster and more efficiently provide customers with products, greatly shortening the product development cycle. We strictly control every production process with advanced manufacturing equipment, starting from the production details.
