14 Pin Pogo Pin Connector For SMT Assembly

SMT Pogo Pin 14 Pin Pogo Pin connector for Assembly line

What you get:

Same price, our quality better, same quality, our price cheaper

Steady quality as you order, production always come same with samples

Fast Delivery, Own factory, can be adjustable if urgent

Quick response, comfortable communication, constrictive suggestions

Free samples, Smallest MOQ

Pogo pin female connector

Pogo pin female connector backside

Pogo pin male connector backside

Pogo pin male connector

Characteristics:

 The Pogo pin Product specification is as follows:

 A. Electrical

     1) Operating voltage: 12V.

     2) Operating current: 3.5A.

     3) Contact resistance: 30mohm Max.

        at working height (Quiescence).

   B. Mechanical

     1) Total stroke: 1.10mm.

     2) Working position: 4.5mm.

     3) Spring Force:75±25gf at working height

     4) Mechanical life: 10,000 cycle min.

     5) Don't exceed the Max. allowed compression

   C. Material/Finish

     1) Plunger: Brass, Plating Min. 0.25um Au over Min. 1.4um Ni.

     2) Barrel: Brass, Min. Plating 0.1um Au over Min. 1.4um Ni.

     3) Spring: Stainless steel wire.

     4) Housing: PA 4.6 + 30% GLASS FIBER; BLACK(UL94V-0)

   D. Environmental

     1) Storage and operating temperature range:

        -40°C~+85°C

     2) Humidity range: 10% RH to 90% RH

     3) Salt spray: 48H

   E. Others

     1) The dimensions marked    are critical,

        Should be checked in production

     2) RoHs compliant product.

Our SMT Pogo Pin design

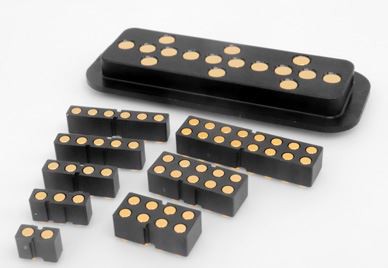

Pogo pin PCB connector Application:

As a pogo pin OEM supplier that has its factory, our SMT spring Pogo pin connector was welcome by engineers when design programs. It's usually for adapter charging, circuit program, HMI solution, pogo pin PCB connector for smart devices.

Our Advantage:

1. Professional Customized Service

2. Rapid Sample Response

3. Strict Quality Control System

4. Processed with Imported Parts

5. High Precision Test Equipment

6. Reasonable Cost Control Program

7. Ten years of experience

8. A series of national product patents
