Side Design 3 pin Gold plated Pogo Pin Connector

Design 3-pin Gold-plated Pogo Pin Connector: A Superior Solution for High-speed Data and Power Transfer

When it comes to connecting electronic devices, reliability, and speed are essential. The traditional options, such as wires, cables, or standard connectors, may suffer from signal interference, contact wear, or complex assembly. Therefore, many engineers and designers turn to pogo pin connectors, which are small, spring-loaded contact pins that provide a flexible and durable interface for various applications. Among the many pogo pin connectors in the market, the SideDesign 3-pin Gold-plated Pogo Pin Connector stands out for its outstanding performance and versatility.

The SideDesign 3-pin Gold-plated Pogo Pin Connector is a customized solution that combines the advantages of gold plating and superior craftsmanship. The three pins are arranged in a triangular pattern and have a diameter of 1.5 mm, which allows for high-speed data transmission and power transfer up to 3A and 30V. The gold plating on the pins enhances the conductivity, corrosion resistance, and contact life, ensuring a stable and low-resistance connection even after thousands of insertions and withdrawals. The pins are also chamfered and polished to minimize the insertion force and prevent damage to the mating surface. Moreover, the housing of the connector can be made of various materials, such as stainless steel, copper, or plastic, depending on the specific requirements of the application.

The SideDesign 3-pin Gold-plated Pogo Pin Connector has multiple applications in different industries, such as consumer electronics, automotive, medical, and aerospace. For example, it can be used as a charging port for smartwatches, earbuds, or other wearable devices that require frequent recharging. It can also serve as a data transfer port for high-speed peripherals, such as cameras, sensors, or storage devices. In the automotive industry, it can enable quick and reliable connections between the dashboard and the various sensors, switches, and displays. In the medical field, it can help to connect the probes or electrodes to the patient monitor or other medical devices without risking infection or discomfort. In the aerospace sector, it can facilitate the communication and power supply between the satellites, the launch vehicles, and the ground stations.

In conclusion, the SideDesign 3-pin Gold-plated Pogo Pin Connector is a powerful and flexible solution that can enhance the performance and reliability of many electronic devices and systems. It combines the benefits of gold plating and superior craftsmanship to deliver a stable and durable connection that can withstand wear and tear. Its small size and easy assembly make it a preferred choice for many industries that demand high-speed data and power transfer. If you need a reliable and efficient connector for your next project, consider the SideDesign 3-pin Gold-plated Pogo Pin Connector and experience the difference.

An essential spring-loaded pin consists of 3 main parts: a plunger, barrel, and spring. Many manufacturers have created their proprietary variations on this design, most commonly by varying the interface between the plunger and spring. Our Side Design Plated Gold Pogo Pin is the right one.

When pogo pins are used in a connector, they are usually arranged in a suitable position, connecting many individual nodes of two electrical circuits.

When used in the highest-performance applications, pogo pins must be very carefully designed to allow not only high reliability across many mating cycles but also the high-fidelity transmission of the electrical signals.

Side design Spring-loaded pogo pin connectors are used for a wide variety of applications, in both industrial and consumer electronics: Board-to-board connectors, smartwatches, TWS earbuds, magnetic charging or signal connectors, Monitor connectors

✧ Manufacturing and Assembly Department

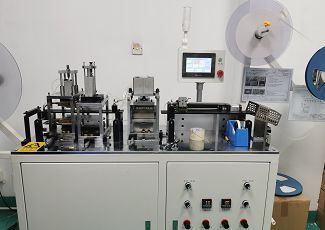

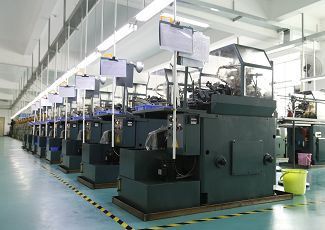

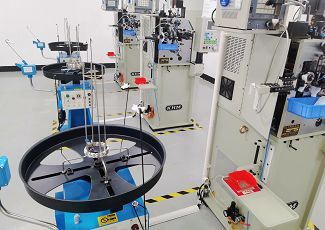

Have an independent machining and turning workshop to control every production process of the product from the source. Independent research and development of bevel pogo pin cutting technology, high processing precision, and stable products. Our company has a separate spring processing workshop, which is clean and dust-free, and controls every production process of the product from the source. Independent processing has high precision, strict control, stable performance, and quality assurance.

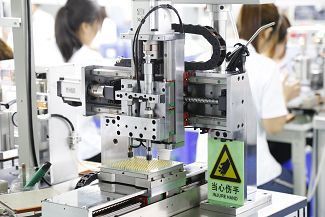

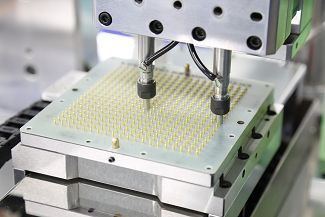

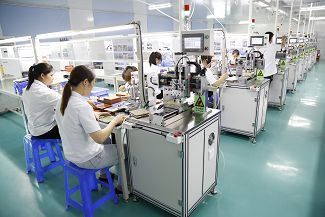

We strictly control every production process with advanced manufacturing equipment, starting from the production details. Our Assembly workshop: skilled assembly process, under the guidance of SOP operating instructions, strictly abide by the assembly production process and operating specifications to ensure that each link is controllable.
