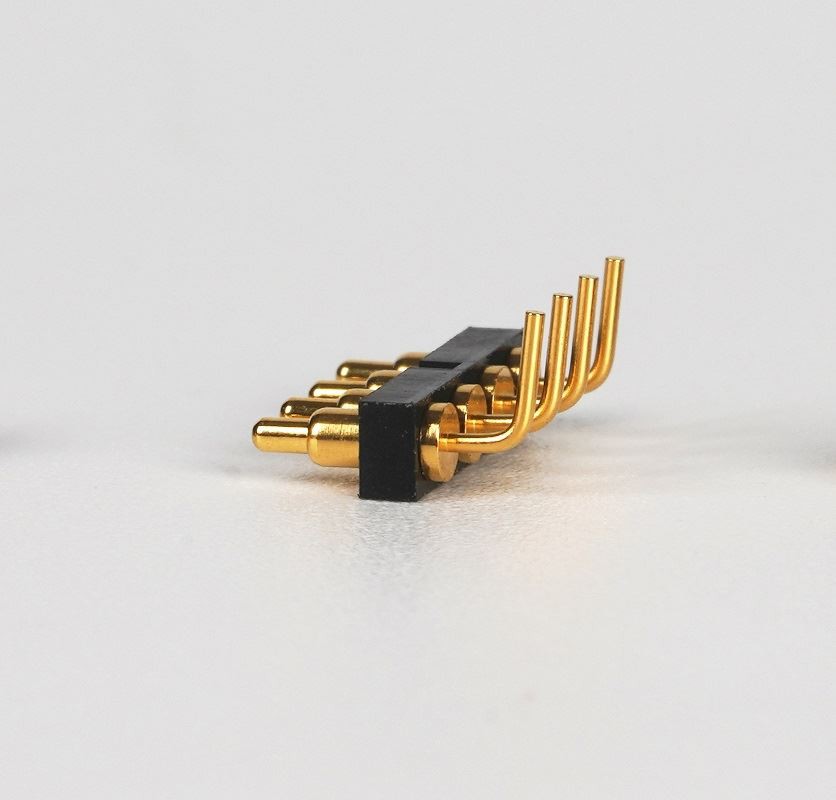

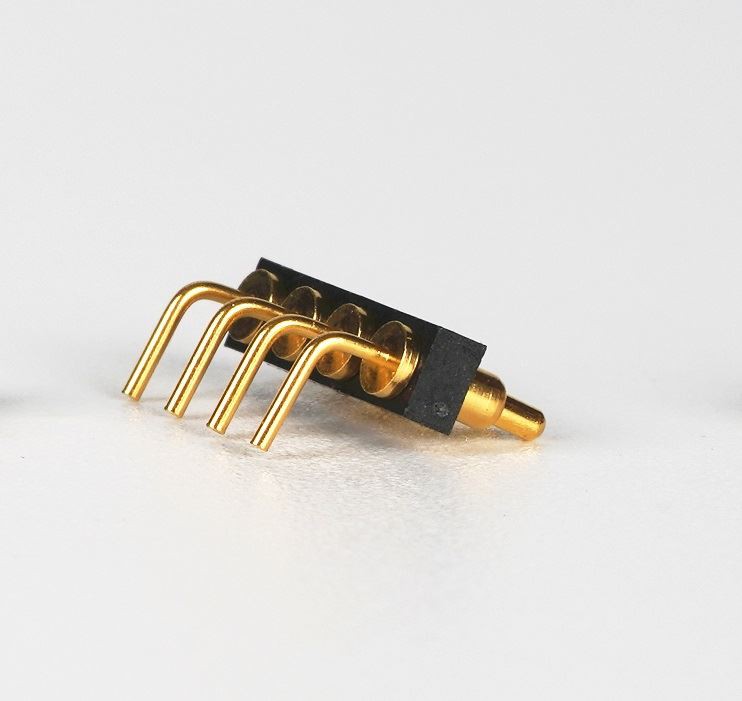

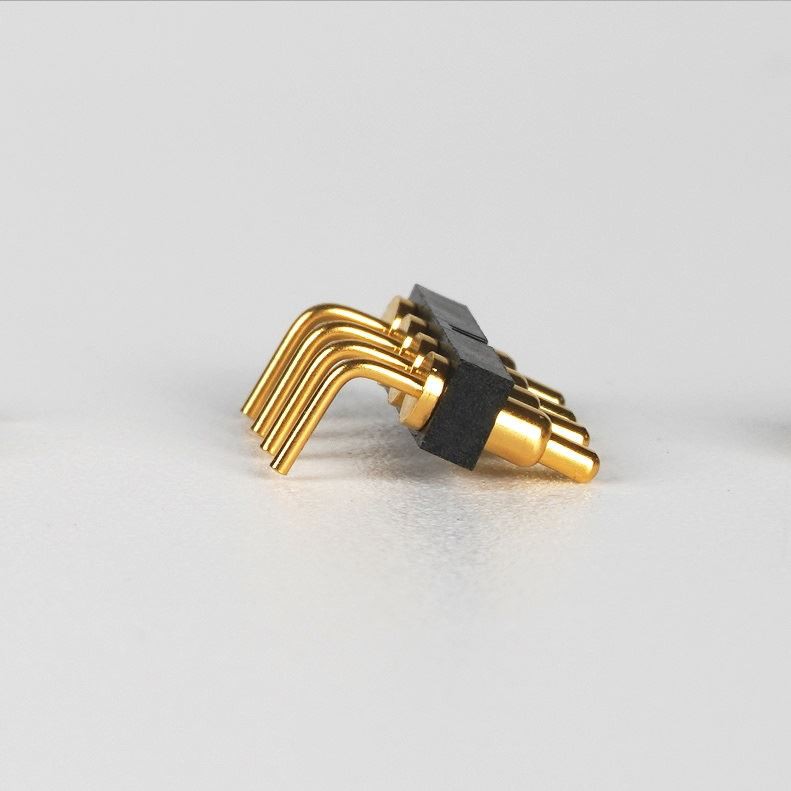

90° Right Angle Pogo Pin Connector
All products have passed the relevant technical level tests and are in line with international technical standards. The main connector (aviation connector) products are the US military standard MIL-DTL-5015, VG95234, MIL-DTL-26482, MIL-DTL-38999, MIL-DTL-22992, etc. It has waterproof IP68 grade and anti-salt spray 500h, RoHs environmental protection standard, high reliability, strong vibration resistance, long service life, and other characteristics, and can work reliably in extremely harsh environments (vibration, shock). Connector products (aviation connectors) are widely used in robots, CNC machine tools, railways, electric power, oil exploration, communications, automation, and other equipment.
90° Right Angle Pogo Pin Connector
90-degree bend spring pogopin connector battery contact charging electrical conductive pin connector.
90-degree bending spring h needle pogopin connector battery contact charging conductive needle test antenna pogo pin.
90° Right Angle Pogo Pin Connector
Our 90 degree bending high current pogo pin automotive connector product has technical advantages
Lead-free process: The metal pipe shaft can be equipped with lead-free (0ppm), low lead (100ppm), or EU standard (40000ppm)
Insulation spring: Material: SUS303 and piano steel wire, the surface can be gold plated or plated with an insulating layer
Vacuum barrel plating: using Japanese technology vacuum barrel plating, the gold plating specification is 1-200u; it can achieve no carbon and no fluorine pollution;
High durability: the product's durable life can be up to 500,000 times;
High current resistance: The product has been mass-produced with high current resistance of 5-10A; it can meet small specifications and high current customized products;
Small impedance value: small impedance value (5 mohm Max) can be customized for special industries
Lateral force: Two special structural designs can enable the needle shaft to be subjected to 180° lateral force under the condition of conventional vertical force, and guarantee the service life of more than 100,000 times;
