What is a Pogo pin magnetic connector？

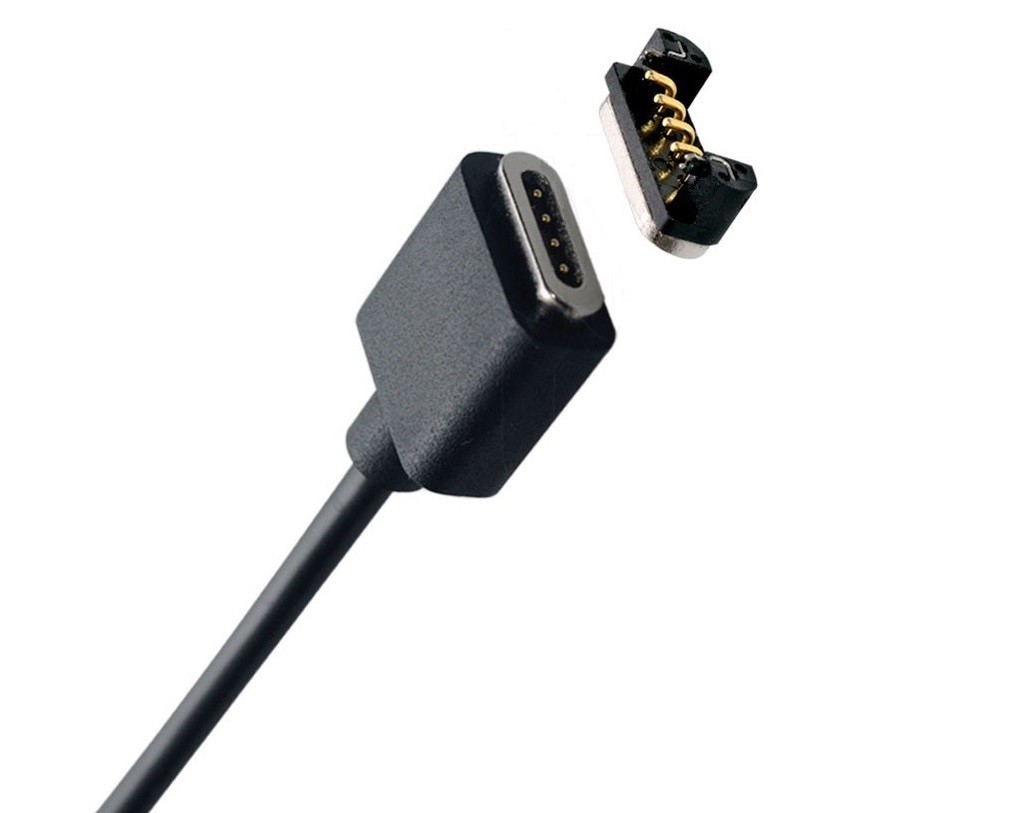

A Pogo pin magnetic connector is also called a magnet connector, magnet connector, magnetic connector, magnetic connector, magnet charging head, etc.; it is a connector widely used in electronic equipment, mainly composed of PogoPin and magnet. Connector. The structure design of the magnet and the magnet contacting and attracting has a large adsorption force, which is suitable for small-sized structures and light and thin products.
The magnetic connector includes a male end assembly and a female end assembly that can be coaxial with the male end assembly. The male end assembly includes a first outer ring rubber part, a first ring rubber part, a first ring magnet, and two male PIN pins. A first ring magnet is arranged between the outer ring rubber part and the first inner ring rubber part, and two male PIN needles pass through the first inner ring rubber part; and the female end assembly includes a second outer ring rubber part, a second Two inner ring rubber parts, a second ring magnet, and two female PIN pins, a second ring magnet is arranged between the second outer ring rubber part and the second inner ring rubber part, and two inner ring rubber parts pass through Female PIN needle, and the first ring magnet will correspond to the second ring magnet, and the opposite end of the second ring magnet has the opposite polarity. The two male PIN needles correspond to the two female PIN needles, and one end of the female PIN needle is provided with a Blind hole for male PIN needle insertion.
The previous magnetic connector includes an insulating body, a plurality of terminals, and magnetic bodies arranged on the insulating body. The front surface of the insulating body has a mating surface, and the mating surface is arranged side by side with several terminal slots penetrating the insulating body. Each terminal slot spaced on the mating surface of the main body is provided with a circle of U-shaped slots arranged around the terminals. The containing slot of the insulating body corresponding to the magnetic body is a U-shaped block, and the magnetic body is contained in the body. In the containing tank. The magnetic connector of this kind of structure design has a large structure, high profile, and small suction force. It is not suitable for some small-sized structures, and it is not suitable for lighter and thinner products.
