Our Pogo Pin Salt Spray Test Report
| 产品料号Product Part Number | ZK200040 | 样品数量 | 5 | 判定 | PASS FAIL | |
| 产品规格Product specifications | PIN-2.0-0.5-1.5-3.0-4.0 | 测试时间 | 2018.4.9 | |||
| 产品材质 product material | C3604（国标铜） | 产品工艺 | 针头针管：镀金3u" | |||
| 项目名称 project name | Salt Spray Test | |||||
| 测试目的 Testing purposes | 按产品要求进行盐雾测试，验证产品是否符合盐雾试验要求Carry out salt spray test according to product requirements to verify whether the product meets the salt spray test requirements | |||||
| 测试设备 Test Equipment | 盐雾测试仪器，力与电阻动态测试仪器 Salt spray test equipment, force, and resistance dynamic test equipment | |||||
| 测试标准 standard test | 1. 测试条件：盐水浓度：5±1％，PH值6.5～7.2 (35℃) 2. 试验箱温度：35±2℃，压力桶温度：47±2℃ 3. 喷雾量收集：1-2mL/hour.80cm²，测试时间：24hours 4. 测试完成后，以清水冲洗样品表面，并用毛刷将样品表面的Nacl沉积物去除 5. 在温室下待其自然恢复2H后观察试样外观，弹力，阻抗需符合规定要求 1. Test conditions: brine concentration: 5±1%, PH value 6.5～7.2 (35℃) 2. Test chamber temperature: 35±2℃, pressure barrel temperature: 47±2℃3. Collection of spray volume: 1-2mL/hour.80cm², test time: 24hours 4. After the test is completed, rinse the surface of the sample with clean water, and use a brush to remove NaCl deposits on the surface of the sample 5. Observe the appearance of the sample after it recovers naturally for 2H under the greenhouse, the elasticity and impedance must meet the specified requirements | |||||
| 判定标准 judgment standard | 1、盐雾测试后，试样表层不可有氧化，腐蚀，变色等异常； 2、弹力，阻抗符合图纸要求。 1. After the salt spray test, there should be no abnormalities such as oxidation, corrosion, discoloration, etc. on the surface of the sample; 2. The elasticity and impedance meet the requirements of the drawings. | |||||
| 测试结果 Test Results | 检查项目 Check item | 检查判定 | 工作行程：0.5mm | |||
| 弹力（g） | 阻抗（mΩ） | |||||
| 测试前 B | 测试后 A | 测试前 B | 测试后 A | |||
| 79.6 | 78.6 | 9.3 | 10.2 | |||
| 外观 outward appearance | 无外观不良 | 84.5 | 82.3 | 8.5 | 9.9 | |
| 针头 pinhead | 无掉Pin | 87.6 | 86.9 | 7.9 | 8.6 | |
| 针管 Needle tube | 无脱金 | 85.5 | 87.6 | 10.5 | 10.1 | |
| 预压 Preload | 顺畅无缩针 | 83.2 | 85.4 | 11.3 | 12.5 | |

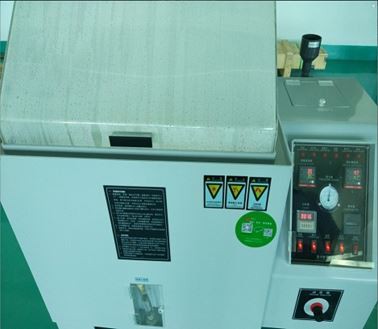

Salt Spray Test equipment
