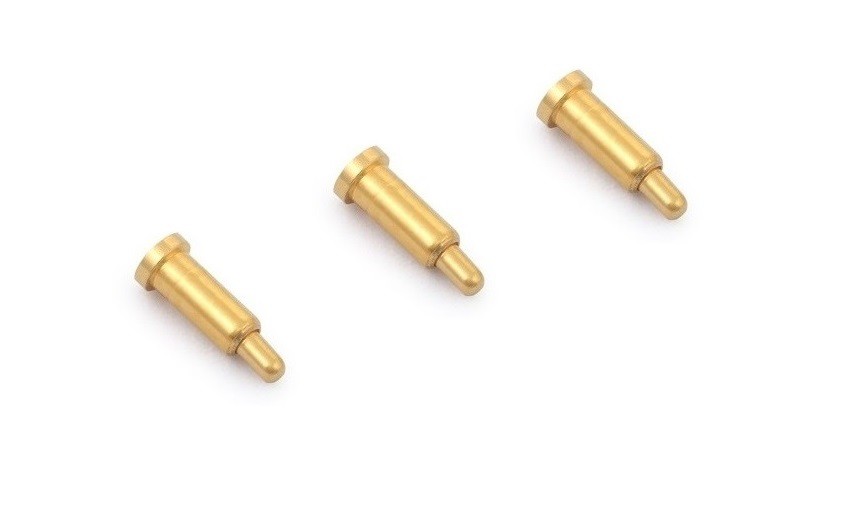

First of all, what is a "miniature pogo pin", just like the name, "miniature pogo pin" is also a kind of pogo pin, but its volume is very small, and the space utilization rate is very low (special saving space)
The first is the application of micro pogo pins. It is a new type of connector system suitable for use in a limited space. If the product requires a flat design, or if the final product is required to be modular, mating connectors should be avoided, so miniature pogo pins are an ideal choice. The connectors are pushed directly onto the contact pads on the printed circuit board.
Second, the product properties of the miniature pogo pin. The rated current can reach 10A, the minimum pin spacing is 0.4mm (Through Hole Mount) / 0.3mm (Surface Mount), and the service life is greater than 50,000 cycles. With high vibration resistance, it can be suitable for data transmission or current transmission of thin and light mobile phone modules (display, audio jack, charging, and other modules).
3. The structure and working principle of the miniature pogo pin. Like a regular pogo pin, the miniature pogo pin connector consists of a thin tube with a spring and a thimble inside. The spring pushes the pins to the contact pads on the printed circuit board, establishing a reliable, vibration-resistant electrical contact.
4. Customized design. Miniature pogo pins are available with a choice of custom pogo pins and use heights that meet specification requirements. The product can be applied to the production line of fully automatic assembly. A choice of custom designs including different shapes of pin and connector housings, protectors, packaging, or matching female headers.
5. Standard design. Customers can freely choose the design according to the special requirements of the project. In addition to irregular structures, customers can also use pogo pin terminals as a new standard for single-row, double-row, or multi-row pin header products.
