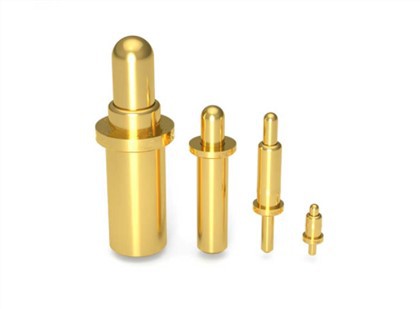

Introduction of Stainless Steel Pogo Pin
Introduction to the composition and physical properties of stainless steel materials;
SUS316F
(Wt%)Fe
Cr
Ni
Mn
Mo
Si
P
S
C
Standard
Balance
16~18
10~14
2
1.75~2.5
1
0.2
0.10(min)
0.08
2. Stainless steel products are used for client version upgrades:
3. The influence of the normal force of the male terminal on the contact impedance of stainless steel products:
Spring Foce | 1 | 2 | 3 | 4 | 5 | Max | Min | Stdeva | Average |
60g | 1006 | 444 | 309 | 591 | 432 | 1367 | 135 | 342 | 613 |
1330 | 421 | 662 | 439 | 310 | |||||
957 | 673 | 607 | 356 | 135 | |||||
1367 | 826 | 340 | 443 | 326 | |||||
1328 | 495 | 563 | 652 | 322 | |||||
80g | 568 | 106 | 254 | 162 | 220 | 811 | 105 | 213 | 321 |
692 | 214 | 249 | 150 | 227 | |||||
731 | 389 | 194 | 245 | 191 | |||||
719 | 423 | 228 | 168 | 170 | |||||
811 | 324 | 340 | 142 | 105 | |||||
100g | 138 | 168 | 164 | 154 | 265 | 265 | 113 | 42 | 187 |
187 | 177 | 258 | 158 | 182 | |||||
151 | 192 | 163 | 172 | 172 | |||||
200 | 247 | 253 | 144 | 231 | |||||
189 | 264 | 164 | 113 | 172 | |||||
120g | 140 | 162 | 119 | 143 | 163 | 276 | 119 | 39 | 167 |
157 | 173 | 147 | 255 | 173 | |||||
128 | 145 | 148 | 157 | 188 | |||||
213 | 157 | 140 | 244 | 159 | |||||
169 | 143 | 141 | 146 | 276 |
4. The testing effect of stainless steel products on artificial sweat:
5. The influence of stainless steel products on electrolysis test:
6. Influence of stainless steel products on pressure drop test
7. The influence of stainless steel products on the temperature rise test
8. Process description for local electroplating of stainless steel products:
