How to use a Pogo pin?

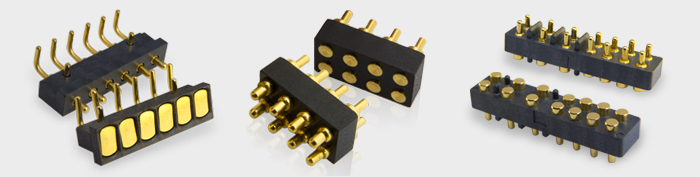

Basic introduction of POGO PIN connector
The Pogo Pin connector is a spring-type probe formed by riveting the four basic components of a needle (Plunger), a needle tube (Tube), a spring (Spring), and a rubber core (Housing) through high-precision equipment. It is also called a pogo pin, Spring thimble, spring probe, Spring Loaded, PogoPin connector. The bottom of the Pogo Pin's Plunger is usually an inclined surface structure. The function of the inclined surface structure is to ensure that the Pogo Pin keeps the needle (Plunger) in contact with the inner wall of the needle tube (Tube) during work so that the current mainly passes through the gold-plated needle (Plunger) and the needle tube. (Tube) to ensure the stability and low impedance of the Pogo Pin.
We provide you with a series of Pogo Pin products. In the connector industry, the pogo pin is a special connection technology. In the past few years, this reliable technology has been accepted by some world-class famous manufacturers and successfully used in their more than one hundred electronic products, such as mobile phone batteries, antenna connections, GPS positioning systems, and laptop computers. , Video game equipment, outdoor street lights, hearing aids, radio receivers, etc.
POGO PIN CONNECTOR BASIC PARAMETERS
Pogo pin (Plunger): Brass gold-plated (C3604), the thickness of the electroplated layer varies with different applications, in general, nickel-plated 1.25~2.5um (converted to 50~100u"), gold-plated 0.125um~0.5um (converted to 5u”~20u”).
Barrel: Brass gold-plated (C3604), the thickness of the electroplated layer is different for different applications, in general, nickel-plated 1.25~2.5um (converted to 50~100u"), gold-plated 0.125um~0.25um (converted to 5u”~10u”).
Spring: stainless steel (SUS304) or piano steel wire
Housing: PA46, PA9T, HTN, LCP (halogen-free material, fire rating UL94V-0)
Cover (CAP): PA46, PA9T, HTN, LCP (halogen-free material, fire rating UL94V-0)

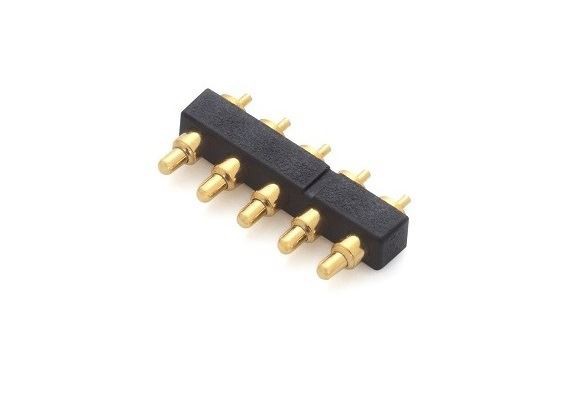

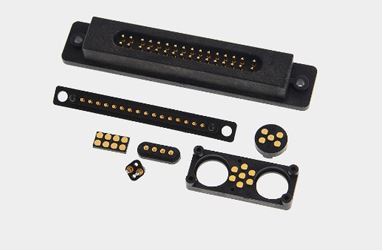

POGO PIN CONNECTOR PRODUCT SPECIFICATION
ADVANTAGES OF THE POGO PIN CONNECTOR
IPX6-IPX7 level waterproof design
Small form factor
High-temperature resistance
Corrosion resistance
Provide customized design
POGO PIN connector application
