The Design and application of magnetic pogo pin connector

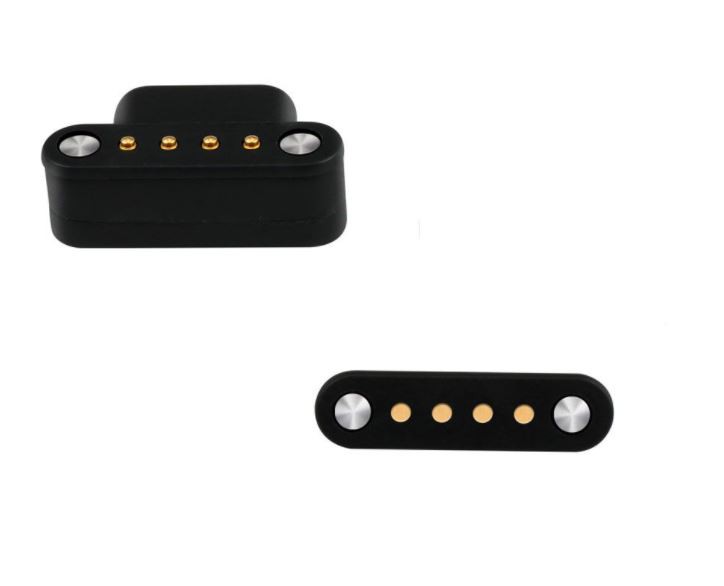

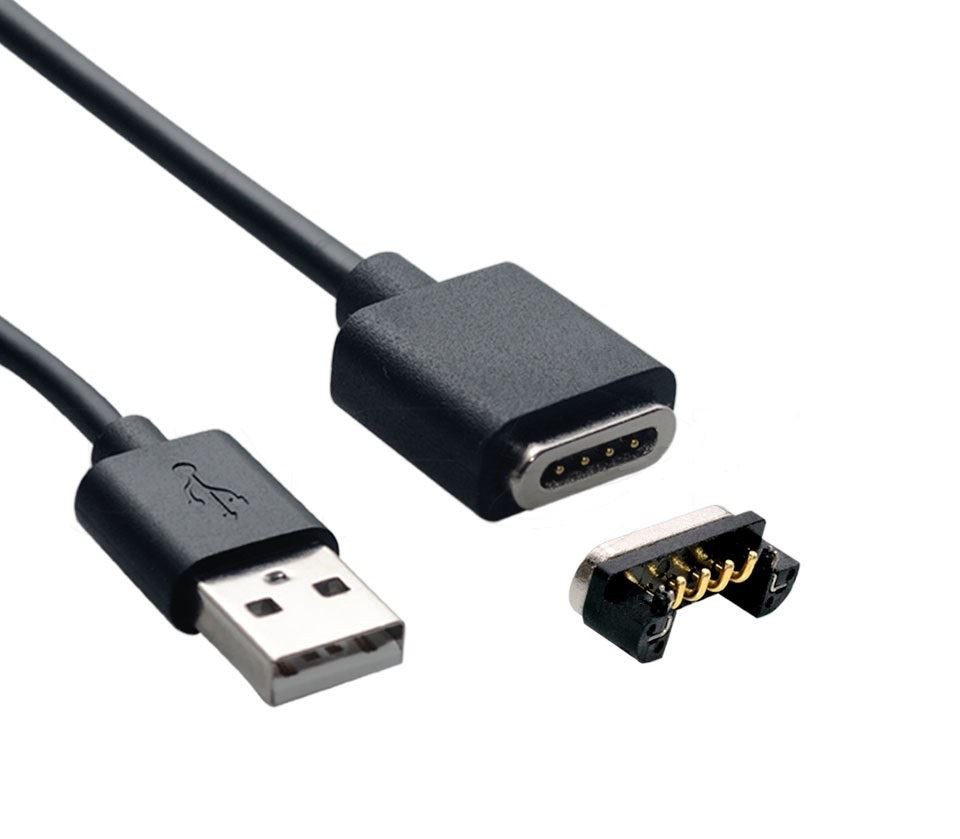

The magnetic data cable and connector refers to the charging cable that is connected to the charging effect by the way of magnet male and female. Magnetic charging cables are also called magnetic charging cables, magnet charging cables, magnetic charging cables, magnetic charging cables, and magnetic data cables. The magnetic data cable is mainly assembled by a magnetic attractor and a wire assembly.
First, magnetic data line design
The design principle is the realization of the function of the product, which is mainly determined by the qualitative structure of the pogo pin and the tightness of the assembly process of the product components. Some small parts require very precise process requirements, and the tight fit of the assembly is excellent. Otherwise, it will cause unstable product performance, or card PIN, spring burning, etc., which will affect the stability of the entire product.
Second, product application of magnetic data cable
In terms of product application, magnetic attractors are mainly used in smart wearables: smart rings, smart collars, smart pendants, children's smartwatches, smart bracelets, smart school bags, smart clothing, smart gloves, smart shoes, Bluetooth headsets, etc., smart homes: Smart home appliances, air purifiers, automatic controls, water purifiers, smart cups, smart door locks, safes, etc. Consumer electronics: Bluetooth headsets, mobile power supplies, children's toys, cameras, beauty equipment, lighting equipment, rehabilitation training machines, Scanners, etc.; aerospace, medical equipment, automotive electronics, automated industrial equipment, data communication equipment, industrial testing equipment, wireless equipment, orbital mobile smart cars; virtual reality equipment (VR), drone equipment, intelligent robots equipment.
Compared with the traditional micro charging method, the magnetic data cable can reduce the number of times of plugging and unplugging of the charging product, and enhance the life of the socket. In addition, most magnetic data cables adopt blind charging methods. When they are placed in a designated position, they can automatically suck and start charging to mourn the connection effect. From this point of view, the magnetic data cable uses the principle of magnetic attraction to automatically connect, so as to increase the service life of the product, and at the same time bring more convenience to people's life.
