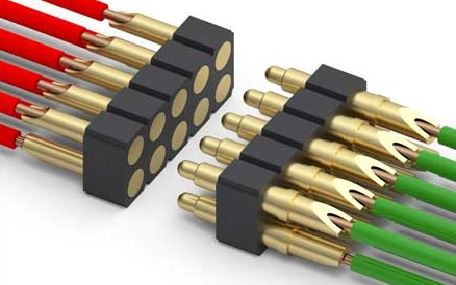

Solder-cup Spring-loaded Pogo Pin Connector

Solder-cup Spring-loaded Pogo Pin Connector

The Solder-cup Spring-loaded Pogo Pin electrical connector product is a replacement product of the old "P" type electrical connector (aviation plug), which has the characteristics of small size, lightweight, convenient use, resistance to plugging, good electrical conductivity, and good sealing. It is widely used in wiring connections between various electrical equipment, instruments, and meters.

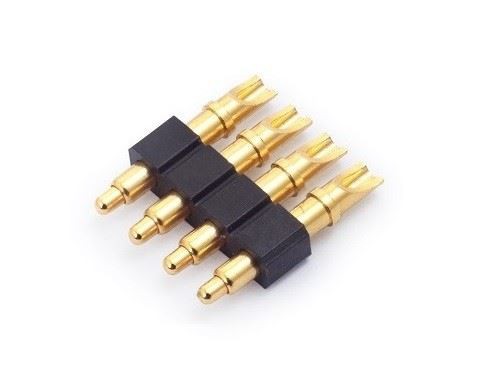

Solder-cup Spring-loaded Pogo Pin Connector

Environmental technical performance

Working temperature: welding type –55℃～125℃, crimping type –55℃～200℃

Vibration: frequency 10Hz～2000Hz, acceleration 147m/s

Constant acceleration: 490m/s

Airtightness: Air pressure resistance 0.2Mpa (only airtight socket)

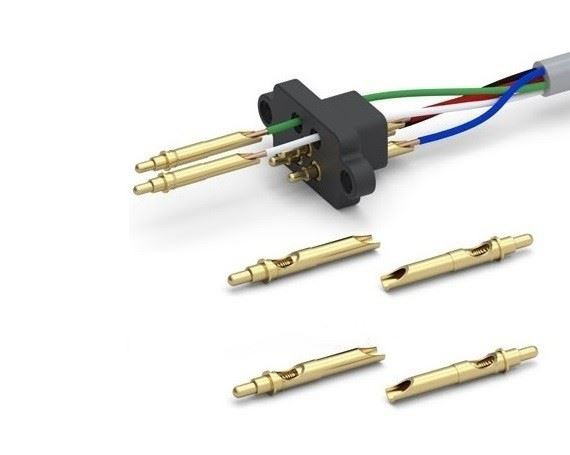

Solder-cup Spring-loaded Pogo Pin Connector

Mechanical properties

Shell: aluminum alloy casting

Coating: spray paint

Insulator: heat-resistant thermoplastic

Contact: Copper alloy material

Plating: Gold

Mechanical life: 100000 times

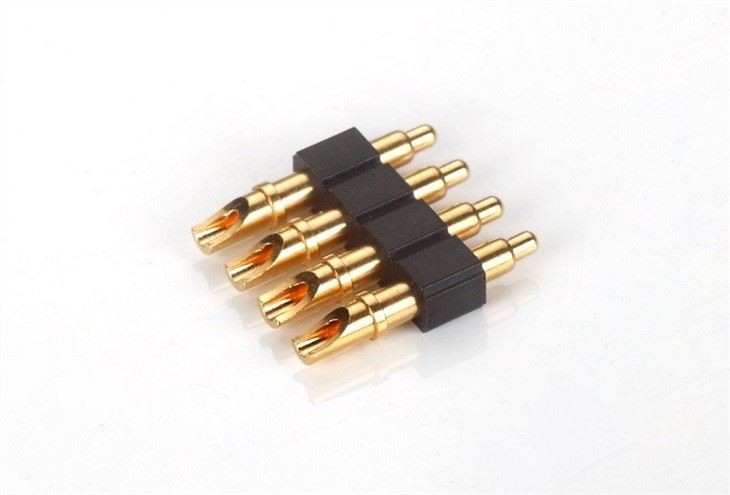

Solder-cup Spring-loaded Pogo Pin Connector

After applying the flux, use a soldering iron to clean the tin on each solder joint. The purpose is to prevent excessive tin from causing false soldering. At this time, only a little tin is left on the surface of the solder joint. When soldering the female connector, pay attention to the operation force not to be too strong, to avoid causing the pins of the female connector to be easily bent by force, and the pads will show up and down, resulting in false impressions during the soldering of the female connector. Welding or false welding, etc.
