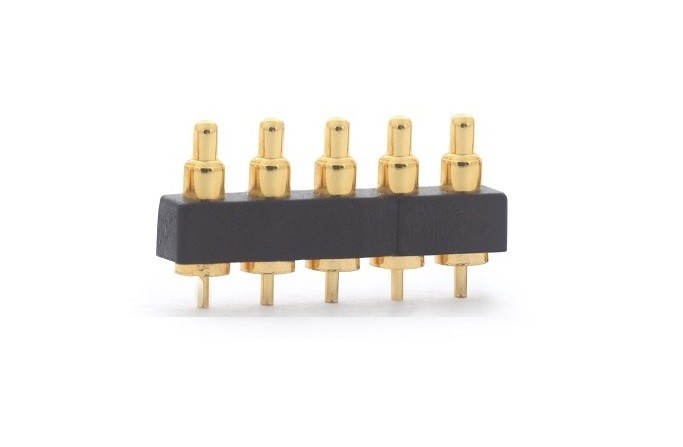

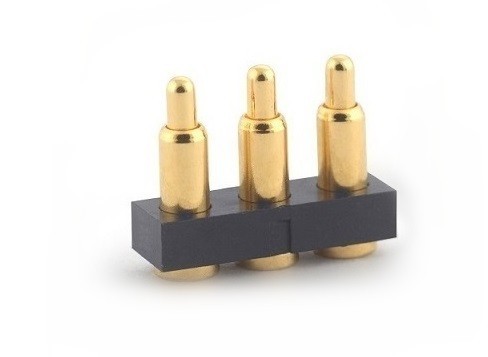

Magnetic Electrical Pogo Pin Connector

Magnetic electrical Pogo pin Connector

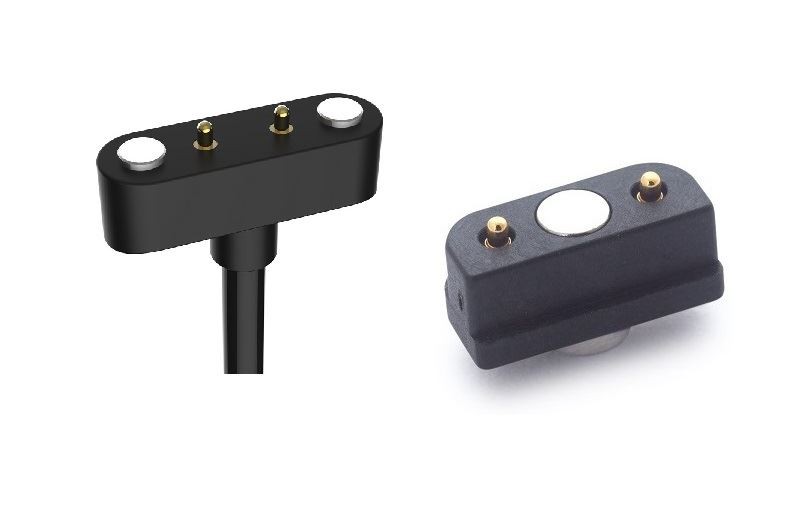

Magnetic connectors are also called: magnet connectors, magnetic connectors, magnetic connectors male and female, adsorption-type magnet connectors, etc., connectors composed of pogo pin and magnet.

Charging and signal transmission is carried out through the contact between the positive pole of the magnet and the negative pole of the magnet. Products are widely used in smart wearables, handheld devices, medical equipment, smart homes, industrial testing equipment, etc. The magnetic connector is a set of male and female, the male end is a pogo pin part, the needle is stretched after being pressed, and the female end has no elastic flat surface part. Because the magnet has positive and negative poles, the magnetic connector is automatically attracted under the action of the adsorption force, and the product only needs to be pulled gently to separate the product.

The Magnetic electrical Pogo pin Connector is in the wireless charging module of the smart sweeping robot. Sweeping robots require a very long connector life. On average, it is plugged and unplugged 3 times a day, so the life span of a year is about 1,000 times, and it needs 10,000 times in ten years.

Efficient charging efficiency requires the connector to reach a power carrying capacity of 3A or more. Assuming that the charging voltage is DC 5V, the charging power is 15W, and the voltage is DC 12V, and the charging efficiency is 36W. Fast charging can also be achieved by increasing the current, which can be achieved quickly by increasing the conductor volume of the connector or increasing the number of conductive PINs.
