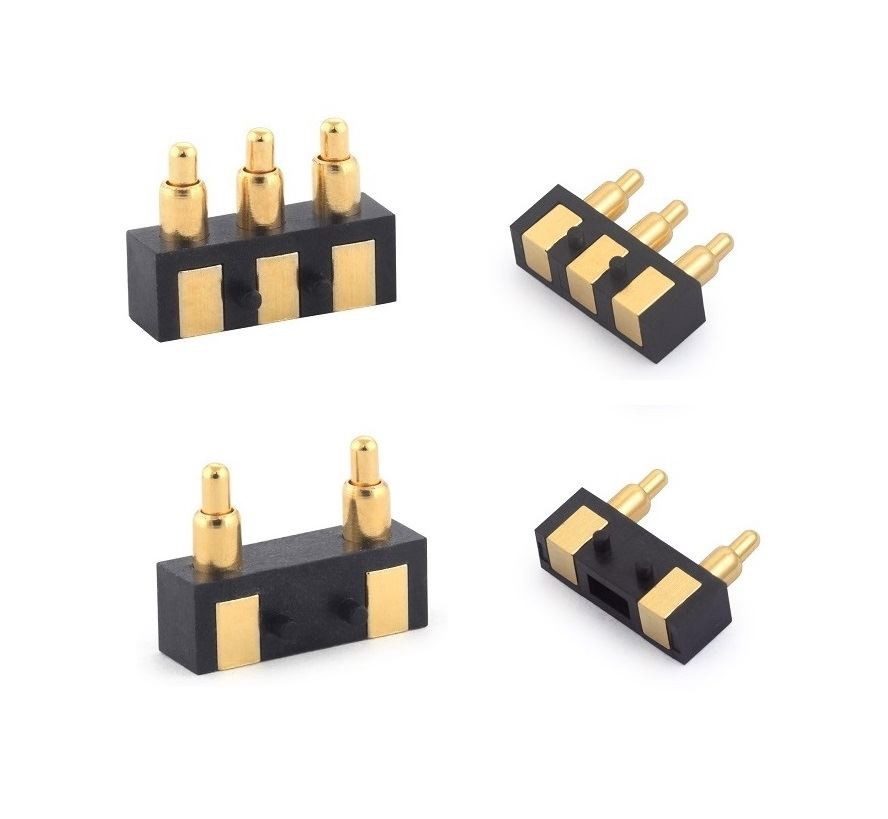

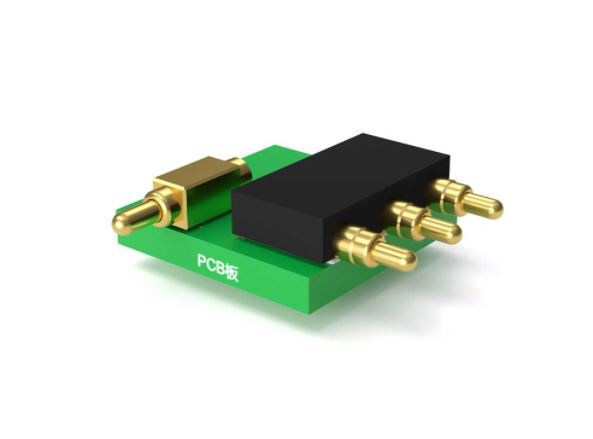

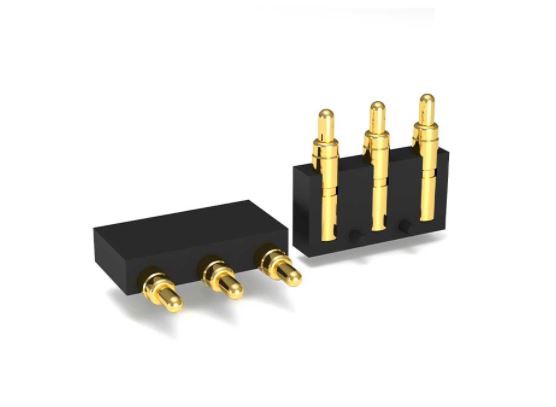

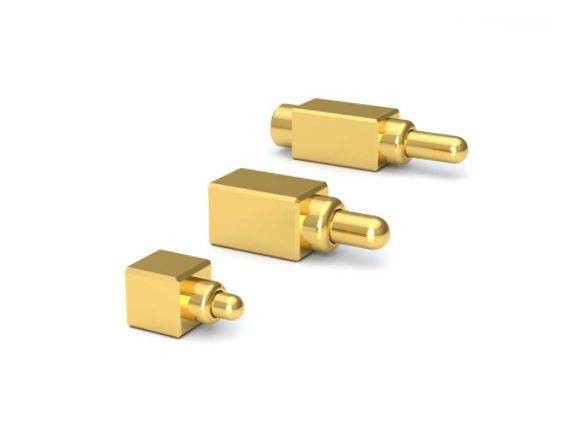

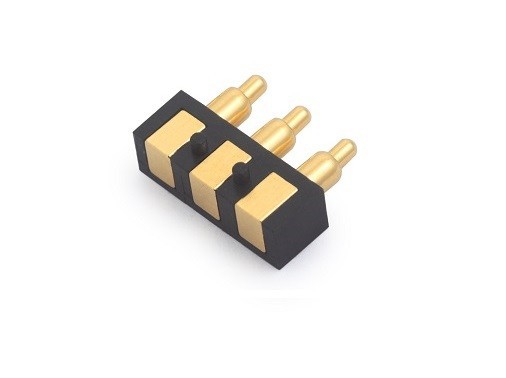

SMD Side Contact Pogo Pin

SMD Side Contact Pogo Pin

Type: pogo pin spring-loaded plated gold

SMD Side Contact Pogo Pin specification:

Material: The needle tube is brass 3604 and the spring is stainless steel 304

Plating layer: nickel-plated needle 100U"-150U" gold-plated 3U"-16U"

Needle tube nickel-plated 100U"-150U" gold plated 4U"-8U"

Product specifications: 2.0 to 5.5

Elasticity: 100 grams plus or minus 20 grams

Continuous working current: 1.0A ~5.0A

Working voltage: 3.2V 3.6V 3.8V 12V

Service life: more than 10,000 times

Working temperature: -25℃ to +75℃ 90% R.H.Max.

Storage temperature: -40℃ to +85℃ 90% R.H.Max.

 Each SMD Side Contact Pogo Pin is gold-plated in order to prolong its service life and use time. The gold-plating can not only prevent corrosion but also be waterproof to a large extent.

Spring-loaded pogo pin for different purposes, different assembly methods. It will be more difficult to assemble the pogo pins with small precision. Since most pogo pins are assembled by hand, SMD Side Contact Pogo Pin can be soldering by machine.
