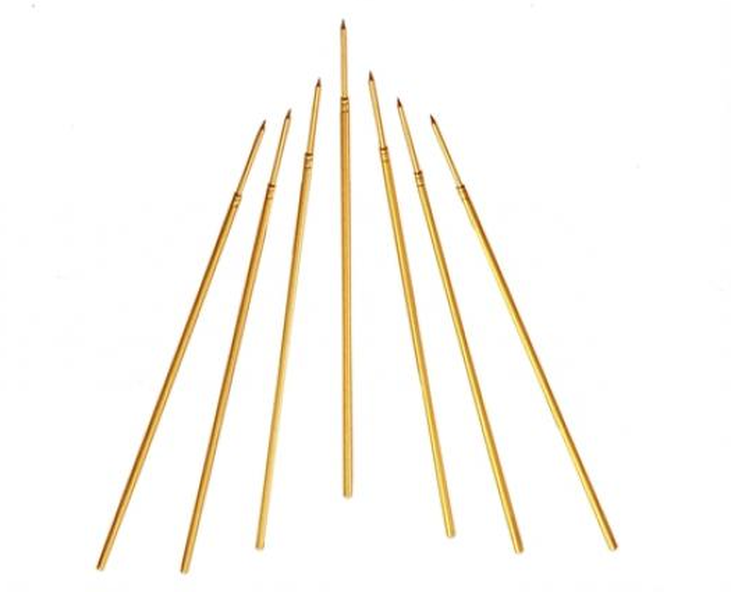

High Current Probe Pin

Probe pin: An Overview of High Current Probe
Probe pin, also known as a high current probe, is an essential tool in measuring and testing high current circuits. It is designed to measure currents that exceed the capacity of an average multimeter, typically ranging from 100 mA to several kiloamperes.

Probe pin works by using a specialized measuring instrument that can detect current changes induced in the surface of the probe. This current is proportional to the current being measured and can be used to determine the current level in the circuit.

Probe pin consists of a shunt resistor, which is used to create a voltage drop that is proportional to the current flowing through the circuit. This voltage drop is then measured by the probe to determine the current level.

Probe pins can be attached to any circuit using a variety of techniques, including direct insertion, clamping, or connecting to a test lead. The type of attachment will depend on the probe's design and the specific application of the measurement.

There are several types of probepins available, each designed for specific applications. Some of the common types include:
1. Hall Effect Probe: This type of probe uses a magnetic field to detect the current flow in a circuit.
2. probe uses an air-core coil to detect the current flow, making it ideal for high-frequency applications.
3. Current Transformer: This type of probe uses a magnetic core to detect the current flow and is ideal for measuring very high current levels.

Probepins are used in a range of industries, including automotive, aerospace, and electrical engineering, among others. They are essential for ensuring the safety and efficiency of high current circuits.

In conclusion, Probepin provides a reliable and accurate way to measure high current levels in circuits. With a range of designs available, probepins can be used in many different applications, making them an essential tool for any engineer working with high currents.
