Flat-bottomed Design Pogo Pins

Flat-bottomed design pogo pins

Pogo pin is a kind of precision connector used in electronic products. It is widely used in semiconductor equipment to connect signals and conduct electricity.

The Design and working principle of Flat-bottomed design pogo pins： When an external force acts on the needle of the pogo pin, the force will compress the spring downwards, the spring contracts, and the needle downwards.

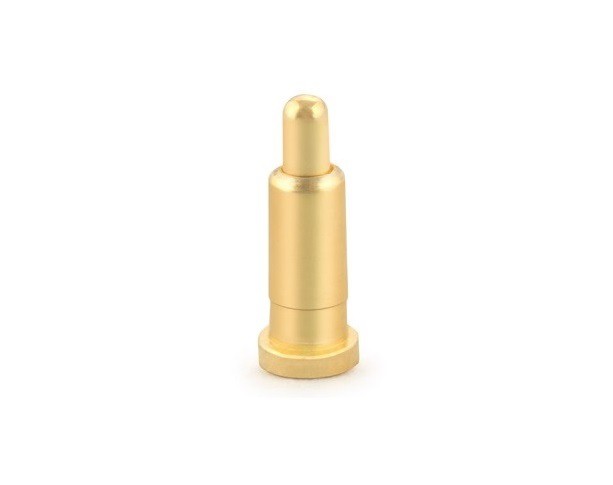

In order to make the contact and conductivity better, the surface of Flat-bottomed design pogo pins is usually plated with gold, which can not only enhance the physical performance, but also increase the electrical performance, and it can also resist corrosion.

The Flat-bottomed design pogo pins energization or conduction, and most of it contacts the copper wall through the oblique lower side, and the spring bears a small amount, so the inner wall of the copper sleeve is required to be smooth.

The bottom is flat, most of the current will be conducted through the spring, and the requirements on the spring will be very high. Of course, it is necessary to ensure that it can be normal when the current suddenly increases.

The Flat-bottomed design pogo pin is a very fine probe, it can be used in precision connectors to reduce the weight of the connector and the volume of the appearance, which can make the connector more refined and beautiful.

There are different appearances according to different applications, but as a whole, there is a precision structure inside the pogo pin. The corrosion resistance, stability, and durability of these connectors can be improved.
