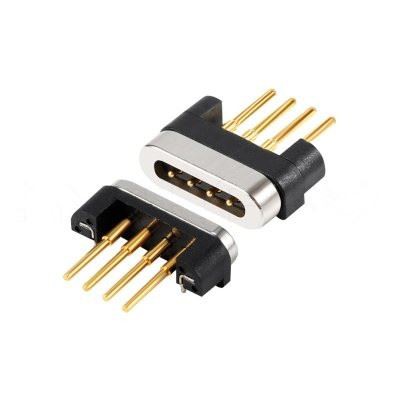

4 Pin Magnetic Male and Female Pogo Pin Connector
4 Pin Magnetic Male and Female Pogo Pin Connector
The two connectors of the sleeve have the difference between a male seat and a female seat. One side of the plug (the protruding connector) is the male header, and the side of the jack (the concave connector) is the female header.
4 Pin Magnetic Male and Female Pogo Pin Connector
Connector, that is CONNECTOR. Also known as connectors, plugs, and sockets in China. Generally refers to electrical connectors. That is a device that connects two active devices, carrying a current or a signal.
4 Pin Magnetic Male and Female Pogo Pin Connector
The company has developed several patents and has successfully passed the ISO quality system certification and ISO14001 environmental system certification. In the process of development, the company respects "integrity" and "professionalism". Professional, efficient, and experienced R&D team, with 60 automatic lathes; 20 precision CNC lathes; 2 turning and milling complexes; 1 automatic testing equipment; a set of professional testing equipment including life tester, automatic riveting Press, quadratic element, current and voltage tester, spring force tester; 8 vertical injection molding machines; 1 assembly automatic discharge machine; pressure tester; swing tester; sealing performance test; and has 13 pogo pins Assembly production line; 3 magnetic data line assembly production lines.
电性能 (Electrical performance) | ||||
1 | 接触电阻 | 30 Mohm Max @wordking stroke | ||
2 | 绝缘电阻 | 500 Mohm Min | ||
3 | 耐电压测试 | No flash-over, air discharge, breakdown, or leakage | ||
4 | 额定电流测试 | 30 °C Max. | ||
机械性能 (Mechanical performance) | ||||
1 | 弹力测试 | refer to product drawing | ||
2 | 保持力测试 | 0.5Kgf(4.5N)Min. | ||
3 | 耐久性 | 10,000 cycles Min. | ||
4 | 振动测试 | No physical damage, no electrical discontinuity more than 1i second. | ||
5 | 机械冲击测试 | No physical damage, no electrical discontinuity more than 1i second. | ||
环境测试性能 (Environmental) | ||||
1 | 可焊性 | solder coverage area Min.95% | ||
2 | 盐雾腐蚀试验 | No physical damage. Resistance after test 100 MohmMax. | ||
3 | 耐焊锡热 | No cracks,chips,melting,or blister | ||
4 | 高湿测试 | No physical damage, Resistance after test 100 Mohm Max. | ||
5 | 冷热冲击测试 | No physical damage, Resistance after test 100 Mohm Max. | ||
6 | 高温测试 | No physical damage, Resistance after test 100 Mohm Max. |

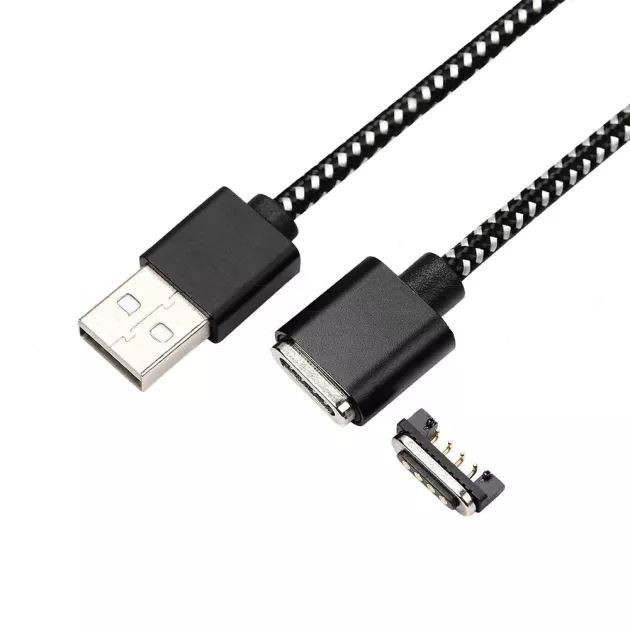

4 Pin Magnetic Male and Female Pogo Pin Cable
Our magnetic data cables are also called magnetic charging cables, magnet charging cables, magnetic charging cables, magnetic charging cables, magnetic data cables, etc. Mainly used in smart wear, 3C digital, smart home, vehicle navigation detection, medical equipment, and other electronic products to achieve charging, signal transmission, and other aspects.
4 Pin Magnetic Male and Female Pogo Pin Connector
The suction between the charging head and the charging cable is very strong, and they are each magnetic. Within a certain distance from the charging head, the charging cable is automatically sucked. This distance range is about 2 cm, and it does not need to consider the direction of the charging cable, all automatically adsorbed.
Our magnetic suction cable is soft and comfortable, freeing hands, throwing, and sucking with one hand, convenient and fast. One-line multi-function, charging and data transmission is not a problem. The connection status is concise and clear. Although the plug has to be inserted into the fuselage all the time, it does not affect daily use.
