Smart Bracelet and Watches Pogo pin Charging Pin
Smart Bracelet and watches pogo pin Charging Pin

Specifications:
Operating Current / Voltage: 1~5A / 5~36V
Spring Force at working height: 30~120g
Mechanical life: min.10, 000 cycles
Plunger: Brass, min. 0.25um Au over min. 1.4um Ni.
Barrel: Brass, min. 0.1um Au over min. 1.4um Ni.
Spring: Stainless steel wire

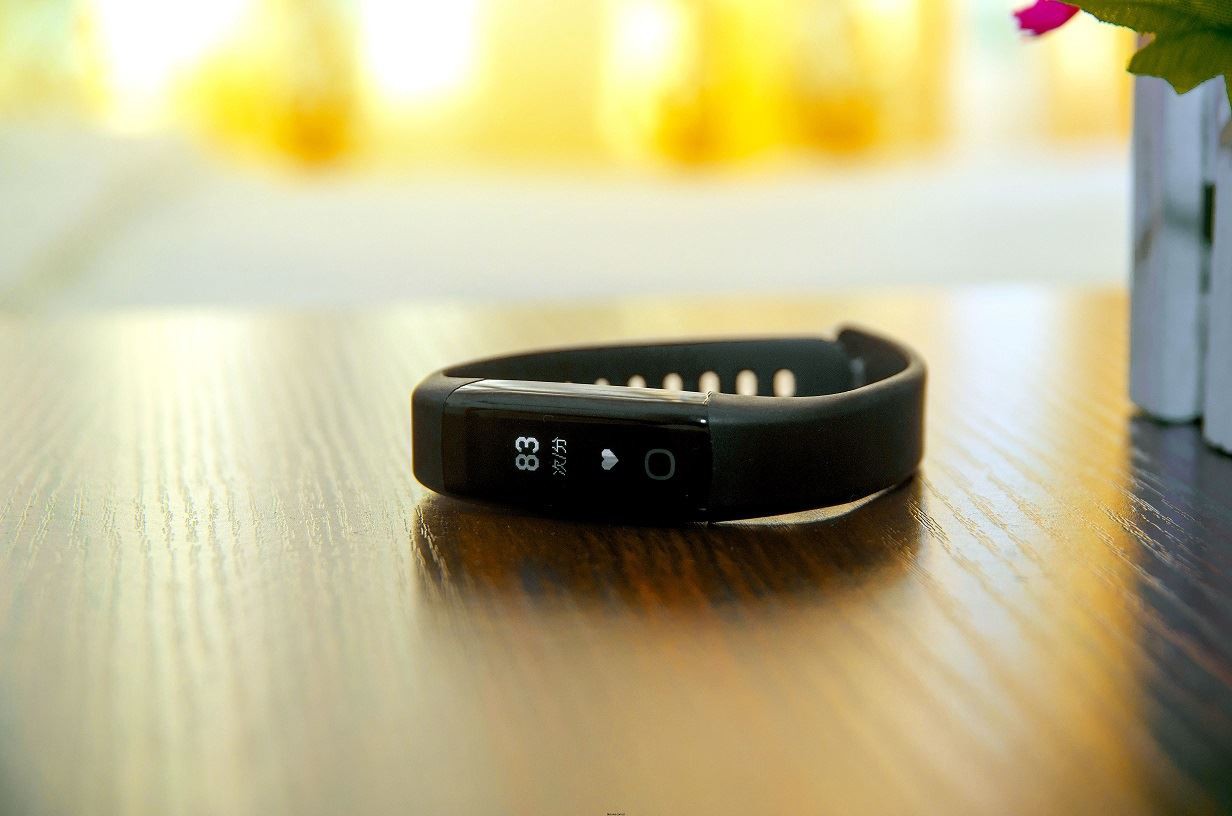

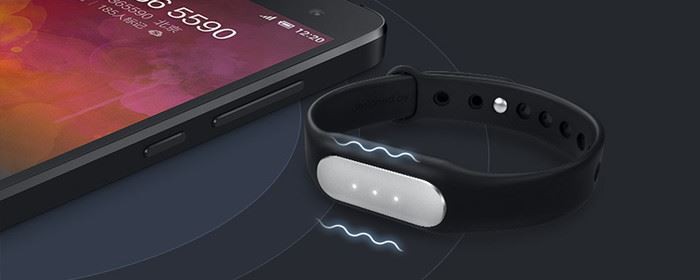

Smart sports bracelets and smart health bracelets are charging through the spring-loaded pogo pin.

How to charge the smart bracelet
Take off the main part of the bracelet and insert the two ends with gold-plated pogo pin contacts into the charging slot.

This method of charging sports bracelets is generally like this. First, find the host part of the bracelet, and then remove the wristbands at both ends. You can see that one end is a USB interface, and the other is a small black bump. Insert the computer in the correct direction and charge it in about two hours.

For example, on the K1 bracelet, you will see several small holes on the side of the screen of the bracelet. Align the front pogo pin charging contacts of the charging clip with those small holes and insert them. If the bracelet vibrates slightly, it will prompt you to enter the charging state. It can be fully charged after 90 minutes of charging, and the screen will also display a full charge icon.

Pay attention that the panel is facing upward; or open the waterproof rubber of the data interface of the bracelet and connect the data cable to it;
