16 Pin Pogo Pin Circular Conectors

16 Pin Pogo pin circular charging connectors

Consumers are not limited to the multi-functionality of electronic products, but they also pursue fashionable appearances and small and thin appearances. The unique advantages of Pogo Pin Connectors can help structural designers very well. To solve the problem of structural design space and connector standards, Pogo Pin Connectors have gradually become the primary and basic considerations of product structure designers.

The utility model discloses a contact terminal of a spring pin connector having a short cylindrical shape with a curved head at one end and a positioning column at the other end with a neck formed between the head and a circle of toothed bumps on the cylindrical surface on both sides of the neck, where the neck diameter is less than the circular diameter in which the tooth protrusion is located. Thus, the contact terminal has a neck structure and the tooth protrusion, ensuring that the contact terminal and the sleeve are closely coordinated, so that the contact terminal can have more reliable electrical contact with the outside world without the left and right offset.

Connector terminal electroplating mainly has two main points: one is to improve the contact interface performance, and the other is to protect the terminal surface from corrosion.

The contact interface between the connector terminals determines the resistance of the terminal, the life of the connector (the number of plugs and pull times without performance failure), and the occurrence of failure.

The contact interface between the terminals exists in two forms:

Separability contact: a connection formed at each insertion of the connector

Permanent contact: the points that the connector attaches to the subsystem that is connected as permanent.

Our products have been successfully and widely used in product areas: smart wearables, TWS Bluetooth headsets, Bluetooth speakers, smart homes, smartphones, 5G communications, medical equipment, portable electronic products, etc.

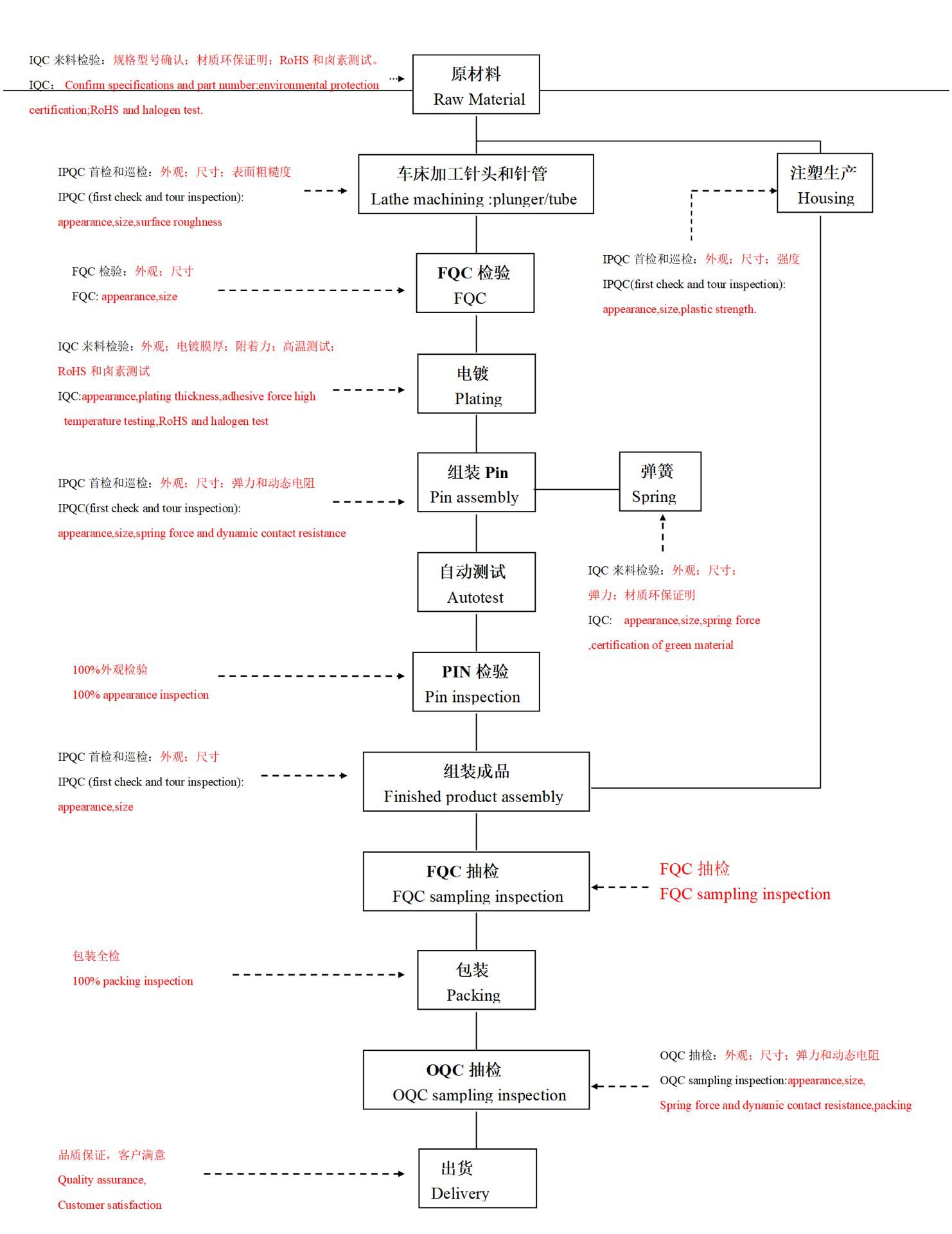

Our quality control system

From raw material storage to final product release, each process is strictly monitored, recorded, and can be tracked and queried.
