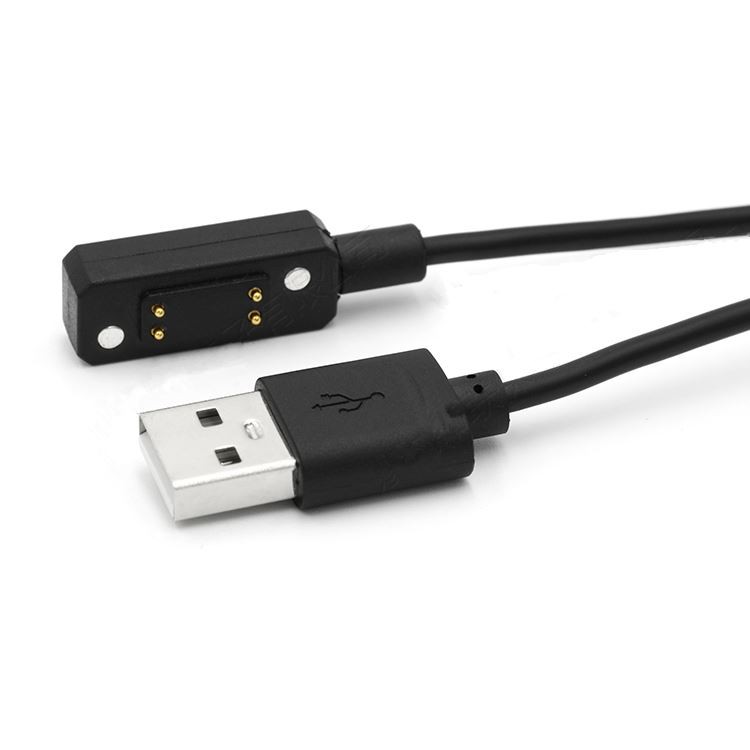

4 Pin Plated Gold Magnetic Connector
A connector uses complimentary magnetic arrays and mating surfaces on its plug and receptacle to facilitate connection and disconnection of the connector. The plug includes a magnetic array wherein the polarity of the magnets facing the receptacle when the plug and receptacle are connected is selected such that they can only be mated with a complimentary magnetic array on the receptacle when the plug has a desired orientation with respect to the receptacle. The plug and receptacle also have mechanical mating surfaces on their circumference that is shaped such that the plug and the receptacle can only be connected with the desired orientation. The plug can be separated from the receptacle by rotating the plug with respect to the receptacle such that the mechanical mating surfaces break the magnetic connection between the complementary magnetic arrays.
4 Pin Plated Gold Magnetic Connector
An electrical plug and receptacle relying on magnetic force from an electromagnet to maintain contact are disclosed. The plug and receptacle can be used as part of a power adapter for connecting an electronic device, such as a laptop computer, to a power supply. The plug includes electrical contacts, which are preferably biased toward corresponding contacts on the receptacle. The plug and receptacle each have a magnetic element. The magnetic element on one of the plugs or receptacles can be a magnet or ferromagnetic material. The magnetic element on the other of the plug or receptacle is an electromagnet. When the plug and receptacle are brought into proximity, the magnetic attraction between the electromagnet magnet and its complement, whether another magnet or ferromagnetic material, maintains the contacts in an electrically conductive relationship.
4 Pin Plated Gold Magnetic Connector
A magnetic connector for connecting various cables to a mobile electronic device includes a connector part in the mobile electronic device and a connector part attached to the cable. One of the connector parts includes a permanent magnet and the other connector part includes magnetic material or another magnet. The attractive magnetic force between the permanent magnet or the other magnet and the magnetic material keeps the connector parts into an engagement. The magnets may themselves form the electrical contacts. The connector parts can also include magnetically operated switches.
4 Pin Plated Gold Magnetic Connector
A mobile computing device is disclosed. The mobile computing device comprises a connector with a plurality of contacts and a processing resource. The connector is structured to mate with different types of connectors. The mobile computing device also includes a data switching component that is configured to detect a type of connector that is mated to the connector. Based on the detected mated connector, the data switching component selects a signal path from the connector to the processing resource along either a first data path or a second data path.
4 Pin Plated Gold Magnetic Connector
A self-aligning connector at the straight rounded edge may comprise a cylindrical magnet oriented with its axis substantially parallel to the straight rounded edge. The cylindrical magnet is for magnetically engaging a magnet of another connector so as to align and connect the self-aligning connector with the other connector. The self-aligning connector may comprise a mounting structure configured to mount the cylindrical magnet at the straight rounded edge of the housing with the axis of the cylindrical magnet being substantially parallel to the straight rounded edge of the housing. The device may include two such self-aligning connectors, spaced apart from one another, along a single straight rounded edge of the device housing.
4 Pin Plated Gold Magnetic Connector
There is provided an adapter for adapting an electronic device to a modular electronic device system. The adapter generally has a housing having two lateral edges, a cavity between the lateral edges and being adapted to receive the electronic device, each of the two lateral edges of the housing having at least one magnetic coupler electrically connectable with at least one magnetic coupler of the modular electronic device system by magnetically engaging the at least one magnetic coupler of the adapter with the at least one magnetic coupler of the modular electronic device system, and an internal electric conductor network electrically connected to the magnetic couplers of the adapter and electrically connected to an internal connector which is electrically connectable to the electronic device when received in the cavity of the housing.
