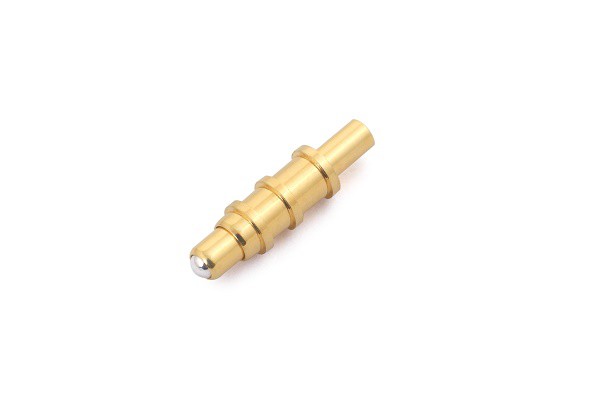

High Current Ball Point Pogo Pin

High current Ball Point Pogo Pin applied for Security Monitor

Smart home

At present, our High current Ball Point Pogo Pin  have been successfully and widely used in product areas: smart wearable, TWS Bluetooth headsets, Bluetooth speakers, smart home, smart phones, 5G communications, medical equipment, portable electronic products, etc.

Characteristics:

   A. Electrical

     1) Operating voltage: 12V.

     2) Operating current: 3.5A.

     3) Contact resistance: 30mohm Max.

        at working height (Quiescence).

   B. Mechanical

     1) Total stroke: 1.10mm.

     2) Working position: 4.5mm.

     3) Spring Force:75±25gf at working height

     4) Mechanical life: 10,000 cycle min.

     5) Don't exceed the Max. allowed compression

   C. Material/Finish

     1) Plunger: Brass, Plating Min. 0.25um Au over Min. 1.4um Ni.

     2) Barrel: Brass, Min. Plating 0.1um Au over Min. 1.4um Ni.

     3) Spring: Stainless steel wire.

     4) Housing: PA 4.6 + 30% GLASS FIBER; BLACK(UL94V-0)

   D. Environmental

     1) Storage and operating temperature range:

        -40°C~+85°C

     2) Humidity range: 10% RH to 90% RH

     3) Salt spray: 48H

   E. Others

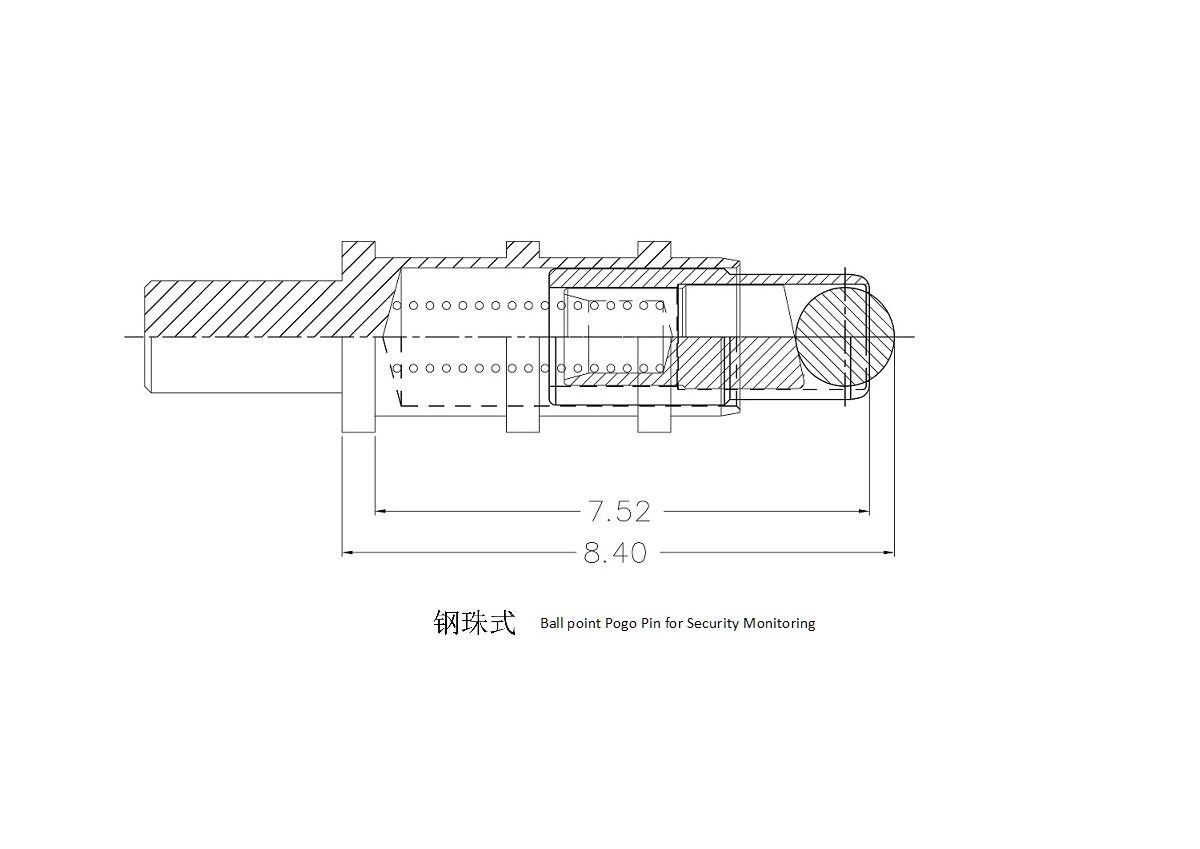

     1) The dimensions marked    are critical,

        Should be checked in production

     2) RoHs compliant product.

 What structural engineers are interested in High current Ball Point Pogo Pin is its excellent space saving ability due to the ultra-short and ultra-small size in the design, and the addition of the electroplating process allows our connectors to have excellent conductivity, high-frequency characteristics and extreme In addition to the low on-resistance, the design of the spring in the connector ensures a stable elasticity and a life stability of hundreds of thousands! Based on the excellent performance of the Pogo Pin Connector, it is solving the connection technology that the traditional shrapnel connector cannot solve.

In fact, our High current Ball Point Pogo Pin have passed ISO9001, ISO14001, and corporate trademark certification. And passed the Guangdong Province high-tech enterprise qualification certification, the company has 3 invention patents and 18 practical patent qualifications. We are committed to ensuring that our six management systems work closely together to meet customer standards.

Service Customers

Customers from all over the world to use our High current Ball Point Pogo Pin  and other High current Pogo Pin. We has a complete production process, including: plating, workshop, from the turning of materials to the surface coating treatment, as well as the assembly and packaging of the end product, all of them are done by ourselves independently, so that we can provide customers with products faster and more efficiently, greatly shortening.
