High-speed, long-distance transmission Ethernet solution

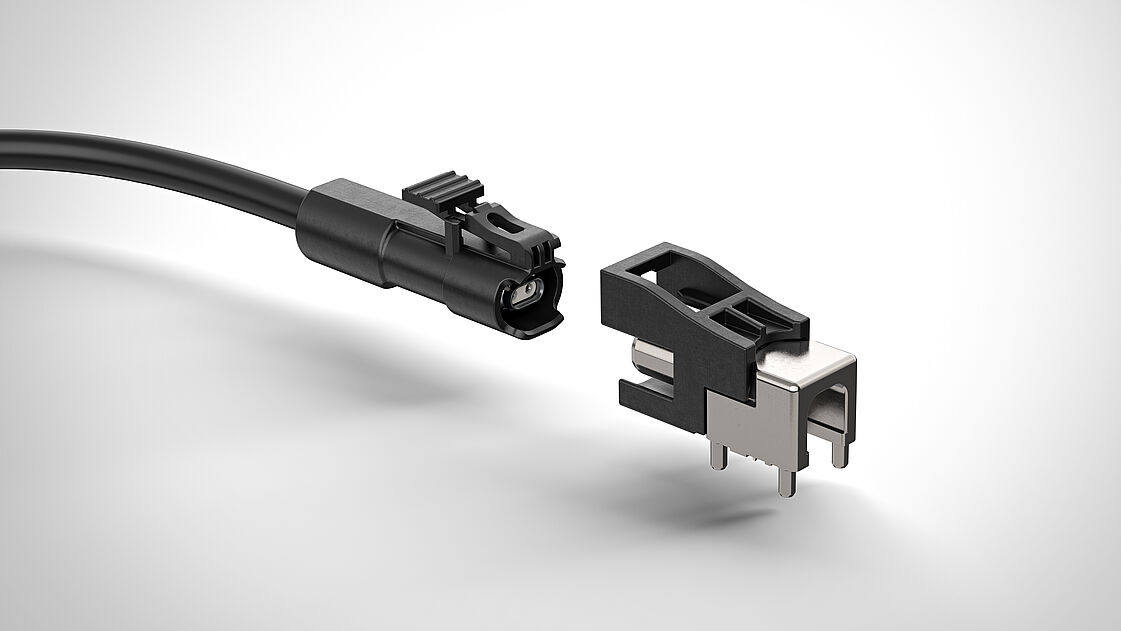

360° Fully Shielded Differential Connector System for Single Pair Ethernet Applications. The newly developed system is housed in a compact and robust industrial-grade housing suitable for high-speed data transmission up to 15 GHz or 20 Gbps.
In addition to ensuring high bit rate data transmission, saving installation space and weight, another major advantage of this connector system is modularity and high flexibility, which makes HMTD compared to other products of the same class, Not only does it support a wider range of Ethernet applications and industrial protocols, but it is also easy to use in designing solutions for the processing and automation industries.
Product Introduction-HMTD
◆ Cable connectors (straight, angled)
◆ PCB connector (straight, angled)
◆ Cable Assemblies

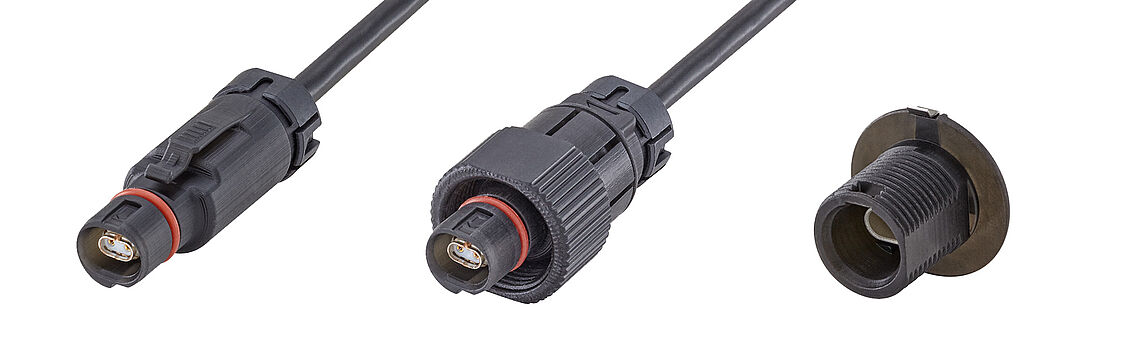

◆ Waterproof version
feature
◆ Impedance 100Ω
◆ DC frequency range up to 15 GHz
◆ High data rates up to 20 Gbps
HTMD
◆ Pluggable times ≥ 25
◆ Waterproof grade, protection grade IP 20 and IP 67
◆ Suitable for STP, UTP and SPP cables
◆ small size
Advantage
◆ High frequency range up to 15 GHz
◆ High data rate up to 20 Gbps
◆ Highly compact and strong
◆ Cost optimization
supported protocols
◆ Ethernet: 100BASE-T1, 1000BASE-T1, multi-gigabit (up to 10Gbps)
◆ Serialization and deserialization: APIX 3, FPD Link 4, GMSL 2, MIPI
◆ PCIe 4.0
◆ USB 3.1 Gen 2
◆HDBase-T
Application field
RoSPE-HMTD Applications
◆ Suitable for Ethernet applications
◆ Internal wiring of SPE machine
◆ All SPE connections not subject to standard IEC 63171
◆ Suitable for STP, UTP and SPP cables
