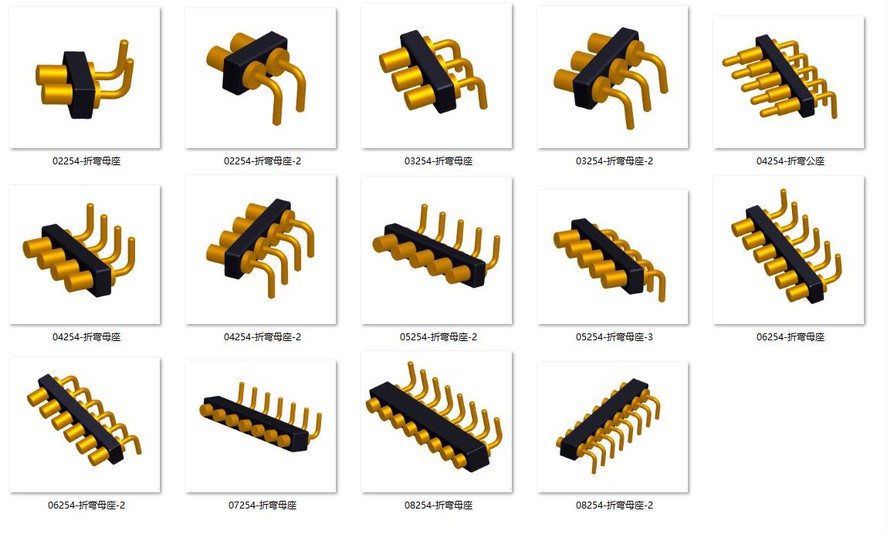

The right Angel spring pogo pin connector

The right Angel spring pogo pin connector, also known as the Z-Spring Needle Connector, is a widely used component in the electronics industry. It is primarily used for low voltage and low current connections in printed circuit boards.

The connector is made up of two parts: the male and female connectors. The male connector is a spring-loaded, bent wire that has been stripped of its insulation. The female connector is a thin copper strip that is soldered onto the printed circuit board.

To join the two connectors, the The right Angel pogo pin connector cable of the male connector is inserted into the female connector. The spring-loaded nature of the bent wire ensures a strong and secure connection between the two components. This type of connector is also designed to make electrical contact upon insertion, preventing the need for additional force to be applied.

One of the main advantages of the bending spring needle connector is its low profile. Its small size and low height make it ideal for use in tight spaces, such as in compact electronic devices. Additionally, the connector’s simple design makes it easy to manufacture and assemble.

However, there are some limitations to the bending spring needle connector. It is not suitable for high current applications, as the small and narrow contact point may cause overheating and result in electrical failure. Additionally, frequent insertion and removal may cause wear and tear on the connector, reducing its overall lifespan.

Despite these limitations, the bending spring needle connector remains a popular choice for low voltage and low current applications due to its small size and easy assembly. Its unique design and reliable performance make it a valuable component in the electronics industry.
