Magnetic Charging Pogo Pin 360° Connector

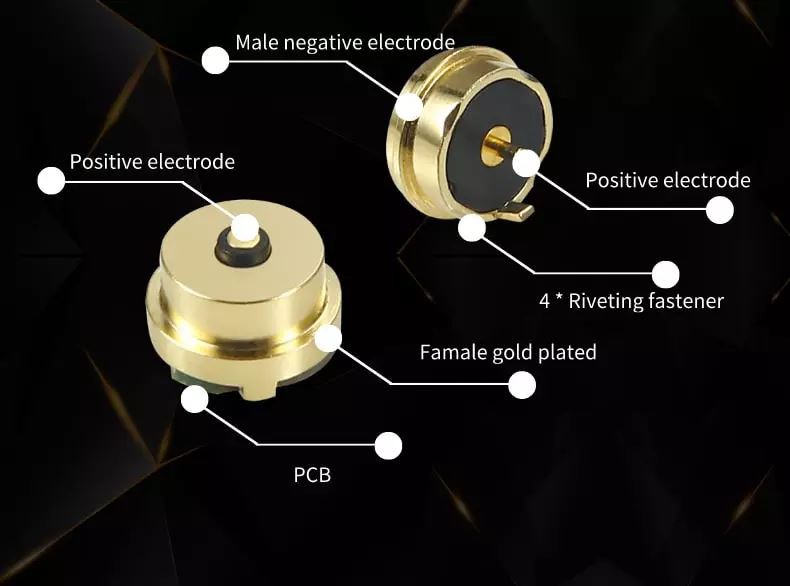

Magnetic Charging 1 pin Pogo Pin 360° connector

8mm circular magnetic connector | magnetic male and female

Magnetic Charging Pogo Pin 360° connector

Type-c attached circular magnetic suction connector diameter 10*10-8mm custom round 3A high current waterproof magnetic head female seat.

Magnetic Charging Pogo Pin 360° connector

Customized circular magnetic connector 2PIN magnetic charging head connector.

Magnetic Charging Pogo Pin 360° connector

Size: 8.0mm--10.0mm

Material: high conductivity copper

Colour: Black

Whether customized processing: no

Main use: 3c digital

Magnetic Charging Pogo Pin 360° connector

Specifications: round 2pin magnetic male and female connectors

Use: power supply

Contact material: lead-free copper gold plated

Rubber core material: HTN

Magnet material: high-performance NdFeB

Whether to customize: support customization

Shape: round

Current: 1A

Contact resistance: 50mΩ

Voltage: 12V/24V

Magnetic attraction: 180g

Waterproof grade: IPX5

Packaging: pe bag/bubble bag

Magnetic Charging Pogo Pin 360° connector

High current and long life waterproof magnetic connector Magnetic charging connector.

Magnetic Charging Pogo Pin 360° connector

High current 5A pair of suction male and female seat diameter 8mm magnetic waterproof connector charging circular adsorption type.

Magnetic Charging Pogo Pin 360° connector

Supply UV disinfection lamp magnetic charging needle magnetic charging connector 2pin circular magnetic connector

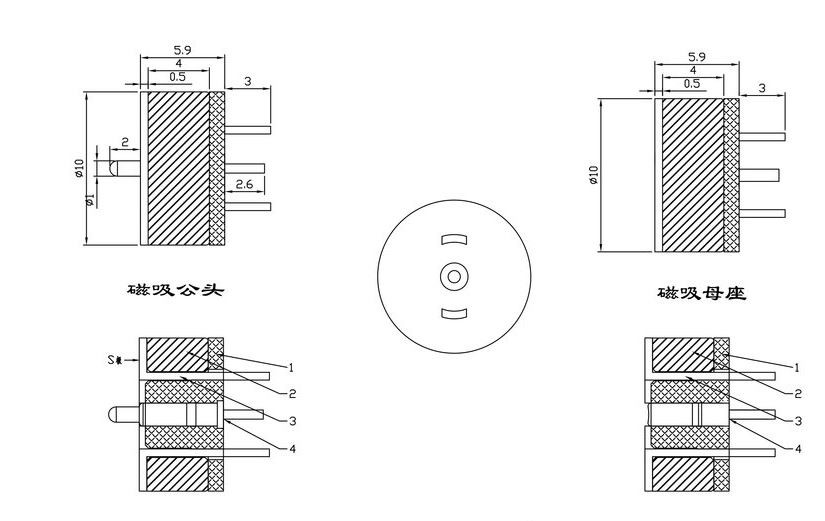

Magnetic Charging Pogo Pin 360° connector design drawing

The magnetic suction connector is small in size and easy to install.

Circular connector Magnetic charging head Printer High current pogo pin.

Magnetic Charging Pogo Pin 360° connector

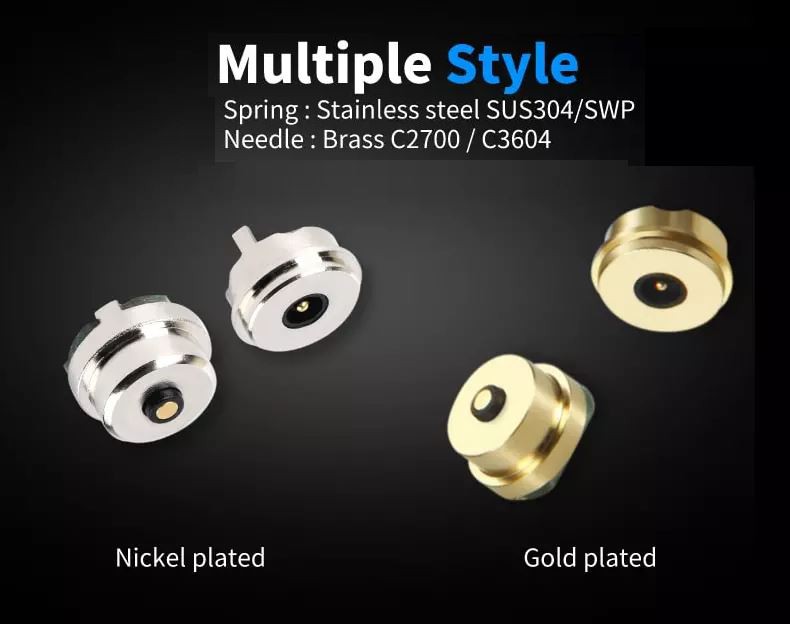

Round magnetic connector Watch waterproof pogopin magnetic charging male and female connector
