Magnetic Pogo Pin Charging Connector
Magnetic Pogo Pin Charging Connector
Product Characteristics
| Material | Brass(C3604) |
| Color | Gold |
| Size | Depends on customer requirements |
| Type | SMT |
| Plated | Gold plated(10U")(can customize) |
| Cycle life | 10,000 times |
| Contact resistance | 50m Ohm Max. |
| Salt fog | 24H |
| Rated current&voltage | 1A~10A/12V(can customize) |
| Applications | PCB,power ,charging equipment |
| Certificate | ISO9001/ROHS/REACH/MSDS/SGS |
| Packing | 1000pcs/PE bag(or according to customer requirements) |
| Payment Term | T/T |
| Payment method | T/T,PayPal, |
| Freight | Air, Sea, Express |
| Sample Lead Time | Inventory simple 2-3day /customized simple3-5day |
| Production Lead Time | 7-10 day |
| Made For | America, Europe, Asia, South African |
| Trade Term | EXW,FOB,CIF |
| Service | High quality at a reasonable price. |
| OEM service, any special size, color, designs are acceptable. | |
| The original sample can be re-made. |
Magnetic Pogo Pin Charging Connector
1. E-PLATING
1.1) Plunger: Brass C3604,1~50 micro inch Au over 50~120 micro inch Ni;
1.2) Barrel: Brass C3604,1~50 micro inch Au over 50~120 micro inch Ni;
1.3) Spring: SUS304, 1~3 micro inch Au;
2. Rated voltage (Per Contact): 12 V;
3. Rated Current (Per Contact): 1.0A-10.0A;
4. Insulation Resistance: 50MΩ Minimum;
5. Dielectric Withstanding Voltage: 100VRMS AT 60HZ;
6. Contact Resistance: 30 mΩ maximum before a test and 50mΩ maximum after test at Pogo pin working stroke;
Magnetic Pogo Pin Charging Connector
A Magnetic Pogo Pin Charging Connector subassembly for a magnetic pogo-Pin switch, including a first adapter connected to the second adapter of a data cable, the first adapter having a plurality of recessed locations for electrical contacts, including a first body, a first interface, and the second interface, the second interface, the first body is provided with a magnetic element, the second adapter includes a second body and a third interface is set on the second body, the third interface has a plurality of pogo-Pin The splicing pole and the second body are provided with a second magnetic element. During use, when docked with the first adapter and the electronic product, the second interface is exposed on the electronic product. An adapter can do the exact second interface. The third interface of the second adapter is close, and it is fixed and connected by magnetic adsorption, and its pogo-Pin splicing pole is plugged in for charging.
Magnetic Pogo Pin Charging Connector
Magnetic Pogo Pin Charging Connector
Recommended Working Stroke & Force: 1) Spring Force:30gf~300gf ;
Mechanical life: 1) Mechanical life: 10,000 Cycles;
Working Temperature Range:-30~85℃;
Salt Spray: 24hours;

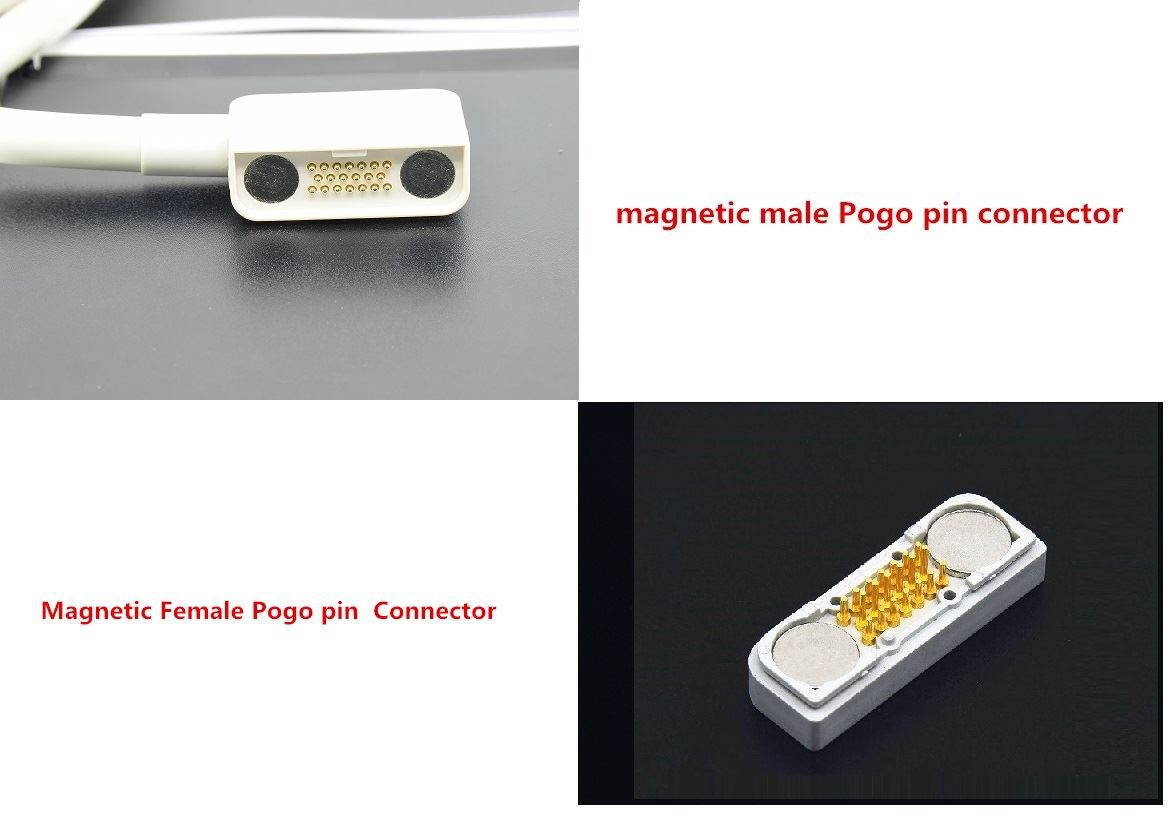

Female pogo pin connector, male pogo pin connector,
Free sample with high-class precision, 0.01mm precision
High recycling, Large Current, Low MOQ, Low-Resistance
Standard & Non-Standard Pogo pin connector
OEM / ODM Can be custom Designed
One row, two rows, three rows
Surface Mount Soldering, Double Head, Flat Head
Waterproof
Magnetic Pogo Pin Charging Connector Plastic Housing
Application:
Electronic Gold Pd-Ni Plated SMT Pogo Pin Power Connector
GPS Stainless Steel Vertical Type Spring Load Pin
Mobile SWP Spring SMA Pogo Pin Electrical Connector
Ethernet Au Plating DIP Magnetic Pogo Pin
Mobile Phone Bronze SMA Pogo Pin Connector
USB C2700 Brass Right Angle Type Magnetic Pogo Pin
PCB Plated Ni SMT Contact Pin
Android TV Box Gold Plating Soldered Type Pogo Pin Magnetic
Magnetic Pogo Pin Charging Connector
Advantages
1. Price: Competitive factory price with good quality.
2. Service:
2.1> Short lead time, 7-10 working days, or according to your quantity
2.2> 100% on-time delivery to our dear customers
3. Low MOQ
3.1> pcs rapid prototype sample is available
4. Near Shenzhen and HK, it's convenient for transportation.
5. OEM is available, and also welcome ODM
6. Quality:
Good experience and technology in manufacturing pogo pins, some engineers have more than 10 years of experience in producing various kinds of precision parts, so could offer good technical support to customers
7. Advanced measurement types of equipment
Make sure all the requirements from our dear customers will be measurable.
8. 100% inspection before shipment.
Quality Assurance
1. IQC: Incoming material control to make sure all the raw materials are qualified.
2. IPQC:
2.1> Operators follow the daily checklist to check the machines to make sure they are in good condition and follow the spec to make products
2.2> Use qualified operators and correct parameters to make sure good quality.
2.3> Technicians/team leaders check the quality online.
2.4> IQPC according to the quality assurance procedure to check the quality.
3. OQC: QC 100% quality check after production with testing machines
