Test Results of Pogo Pin Composite Plating

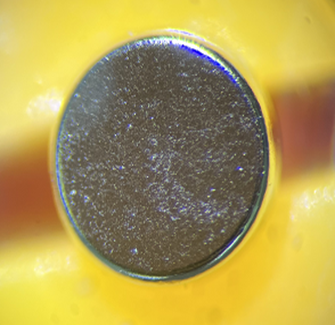

PAD_electrolysis 1min test OK PAD_electrolysis 1min test NG
Due to the edge effect, the copper pillar usually starts to corrode from the edge during the electrolytic test.

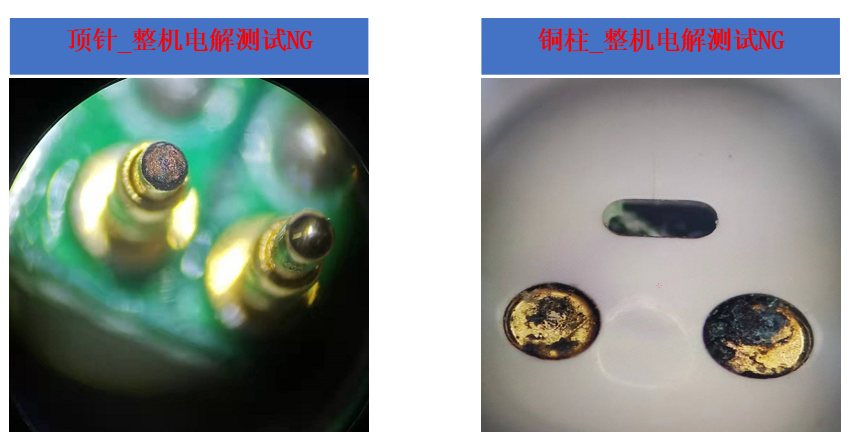

Refer to the electrolytic test results of conventional gold-plating machine
Conventional gold plating is difficult to pass the electrolytic test, our company has officially established a project corresponding to the composite plating process of gold-plated products.

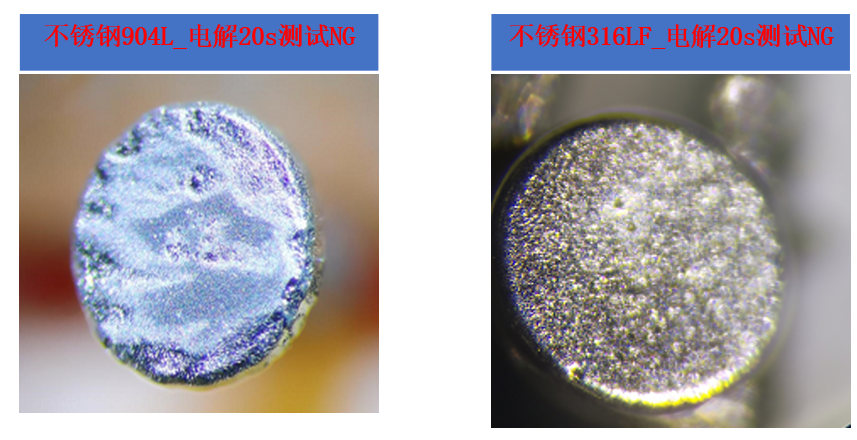

Stainless steel electrolysis test results reference
Notes: Stainless steel has high hardness, but the electrolytic test effect is not ideal, which is the same as nickel plating and gold plating.

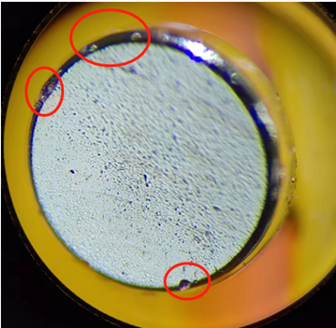

Headphone picks and place test 1w times microscope_164 times magnification result confirmation.
Confirmation of wear resistance test results

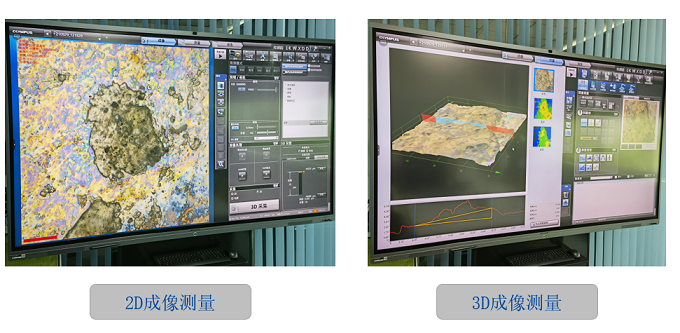

Olympus 3D electron microscope imaging illustration
Mature product production process display
