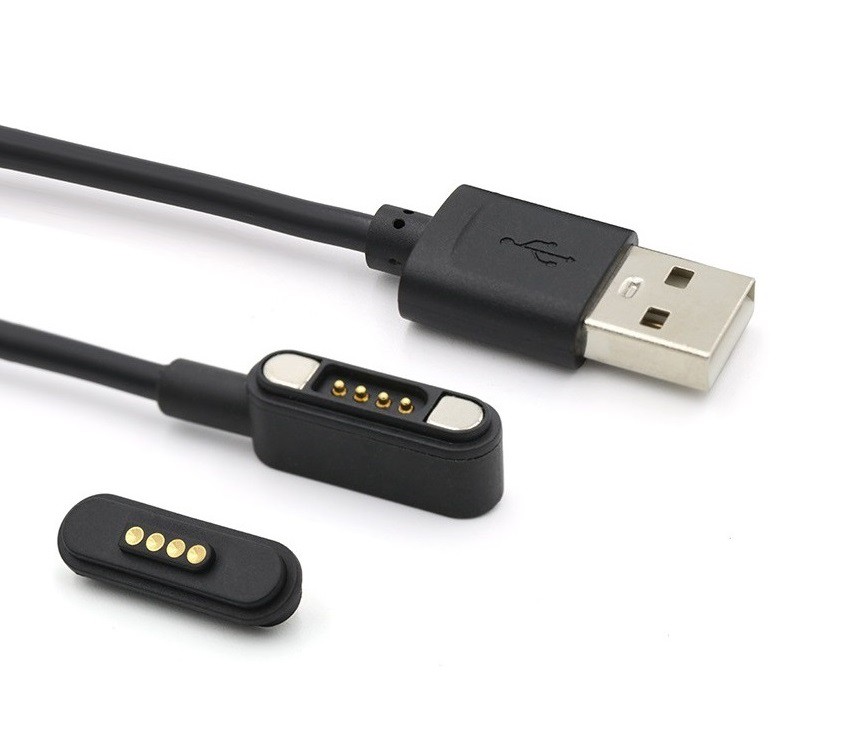

The main feature of the Magnetic charging cable
1. Long service life, the number of times of use can reach more than 100,000 times
2. No mold opening, convenient for customer customization and cost saving
3. Elasticity can be accurately measured and adjusted
4. Production mode that is convenient for customer diversity (SMT, plug-ins, etc.)
5. Small spacing, saving space, giving designers a more flexible configuration structure
6. Low inductance, better high-frequency solution
7. Compliant with RoHS and HF (connector) requirements
Features
Magnet positioning: use magnets to attract, align, and even foolproof automatically
Anti-drop: The adsorption interface is easy to remove, and it is not easy to drive the machine
Long life: more than 10,000 times
Waterproof design: above IP67
Fast charging time: withstand high current transmission 1A-100A design
Customization: Diversified shapes and styles to match the shape of the host product, improve product quality, and create selling points
Magnetic connectors, also known as magnet connectors, magnetic connectors, and magnetic connectors, are one of the connectors widely used in electronic equipment, mainly the connectors composed of pogo pins and magnets. Through the structure design of magnet and magnet contact and attraction, a magnet-type connector with a strong attraction force suitable for small-sized structures and light and thin products is provided.
Magnetic data cable is also called magnetic charging cable, magnet charging cable, magnetic charging cable, magnetic charging cable, magnetic data cable, etc. Mainly used in smart wear, 3C digital, smart home, vehicle navigation detection, medical equipment, and other electronic products to complete charging, signal transmission, and other aspects. Parts are Pogo pin, plastic, magnet (iron-nickel alloy), and wire.
The main tables of the magnetic data line are as follows:
Anti-drop: It is easy to move the machine by sucking the interface and removing it.
Long life: up to 100,000-200,000 times of functional connection and charging.
Waterproof design: The female end of the host can be completely dustproof and waterproof (IPX8).
Fast charging time: accept large power transmission 5A-10A design.
Save space: the female end connector and the PCB transfer can complete the pogo type and SMTDIP jumper connection.
Customization: Diversified shapes and styles to match the shape of the host product and enhance the product level selling point.
Magnet positioning: application of double junction of magnet and mechanism to maintain the whole circuit to prevent fools.
Environmental protection requirements: excellent corrosion resistance level to meet harsh environments.
The magnetic charging cable refers to the charging cable that achieves the charging effect by connecting the male and female magnets to the suction method.
First, the characteristics of the magnetic charging cable
Relying on the magnetic attraction of magnets, the traditional data line connector and the line body are separated, and the two are automatically attracted within a certain distance by magnetism, so the magnetic data line is called magnetic line, magnetic data line, and magnetic charging line. In this way, the data cable can be plugged and unplugged with one hand, and in actual use, the magnetic charging cable is safer than the ordinary data cable.
Second, the advantages of magnetic charging cable
1. The interface is widely applicable to mainstream models.
2. Slim size and miniaturization are widely applicable. Different from the traditional data cable interface that is common in life, the new magnetic charging cable interface has been reduced in size. Even if the mobile phone is used with a mobile phone case, the magnetic charging cable is also suitable for 90 % of the mobile phone case and can be used directly without removing the case, so it is suitable for use in increasingly miniaturized electronic products and equipment and can withstand more than 50,000 repeated plugging and unplugging times.
3. The transmission speed is fast, and it is perfectly compatible with mobile phone data transmission.
4. It is easy to use and can be operated with one hand, regardless of whether it is positive or negative. It can be inserted at will, reducing the error rate to zero. Even a 3-year-old child cannot insert it wrongly. It is very suitable for driving, sleeping, and other life scenarios.
5. The charging speed is fast, leading the similar magnetic suction line products in the market.
The emergence of magnetic charging cables has impacted the market of ordinary data cables because magnetic charging cables are much easier to use than ordinary data cables, bringing too much convenience to life, and the feeling of user experience has also risen. More and more people are beginning to enjoy the convenience brought by the magnetic charging cable to live.
