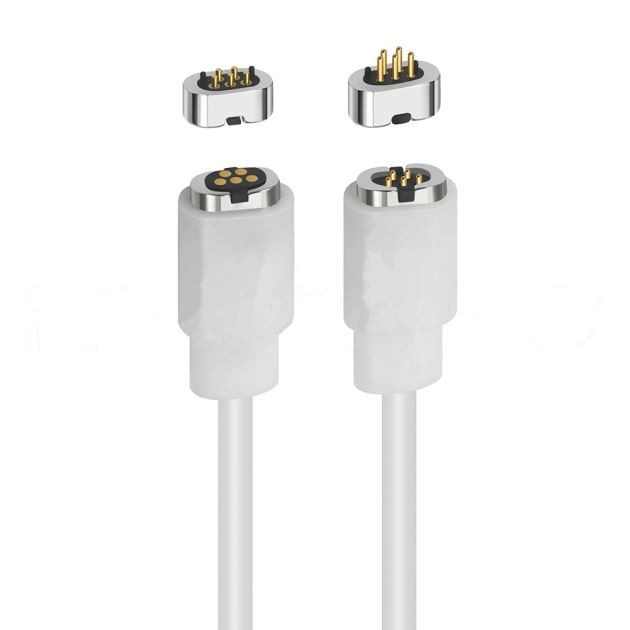

4 Pin Pogo Pin Charging Cable

4 Pin Pogo Pin Charging Cable

The 4PIN connector includes a plastic body and 4PIN conductive terminals. The top of the plastic body is provided with a boss, and the top and bottom of the plastic body are provided with positioning structures; the insertion part of each conductive terminal extends out of the boss of the plastic body. The holding portion of the conductive terminal is accommodated in the plastic main body, and the soldering leg portion of the conductive terminal protrudes from the bottom surface of the plastic main body and is bent and extends out of the side surface of the plastic main body to form a patch type soldering foot structure.

4 Pin Pogo Pin Charging Cable

4PIN pogopin connector pogo pin connector charging pin conductive pin customization. According to the spacing, it can be roughly divided into five categories: 2.54mm, 2.00mm, 1.27mm, 1.00mm, and 0.8mm (other special spacing can also be customized according to needs); according to the number of rows, there are single-row female, double-row female, three-row female, etc.;

4 Pin Pogo Pin Charging Cable

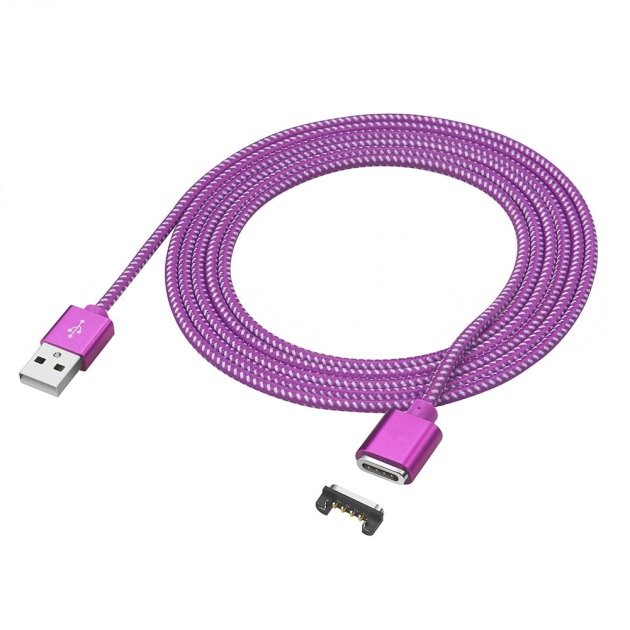

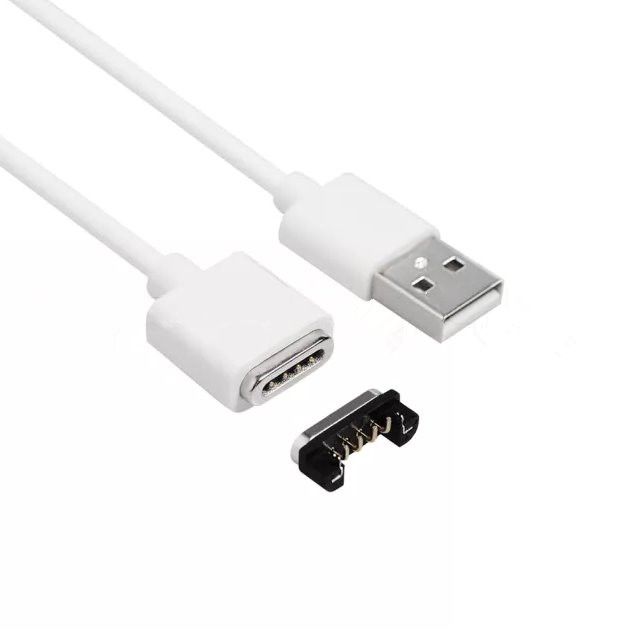

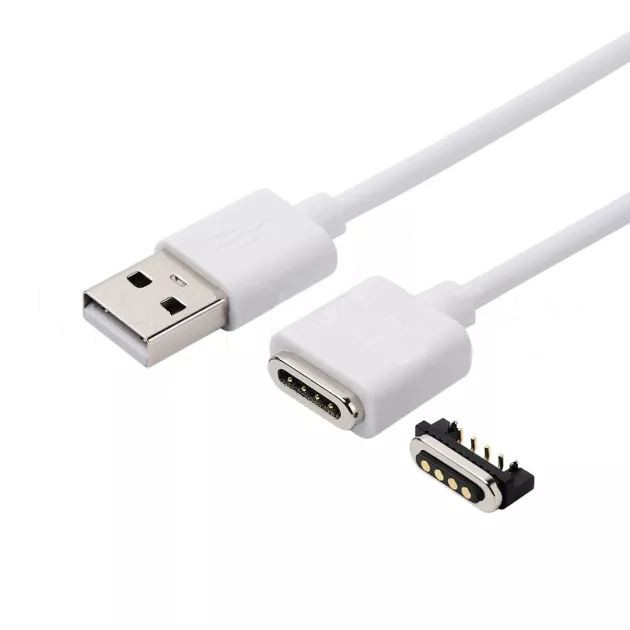

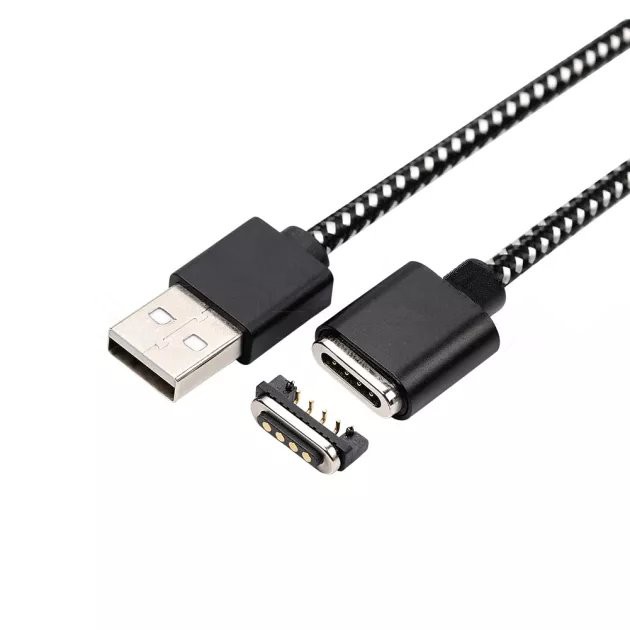

Smart wearable pogopin magnetic connector 4Pin magnetic charging plug Magnetic connector charging

4 Pin Pogo Pin Charging Cable

PCB mainboard power supply At present, most mainboards have 4PIN interfaces. There are also 4PIN male connectors in the power supply of electronic equipment, which can be inserted accordingly. The power supply 4PIN male connector interface is used to connect to the motherboard 4PIN female socket.

4 Pin Pogo Pin Charging Cable

According to the packaging usage, there are SMT, plug-in DIP (straight insertion/bent insertion), etc.; at the same time, to use the corresponding pin headers, different sizes of female headers and plastic heights can be customized.

The 4 Pin Pogo Pin Charging Cable connector seems to be a simple part, but its process is extremely delicate and complex. From lathe processing, electroplating, and assembly, we have good quality control and a perfect manufacturing process level.
