Introduction of spring-loaded Pogo pin

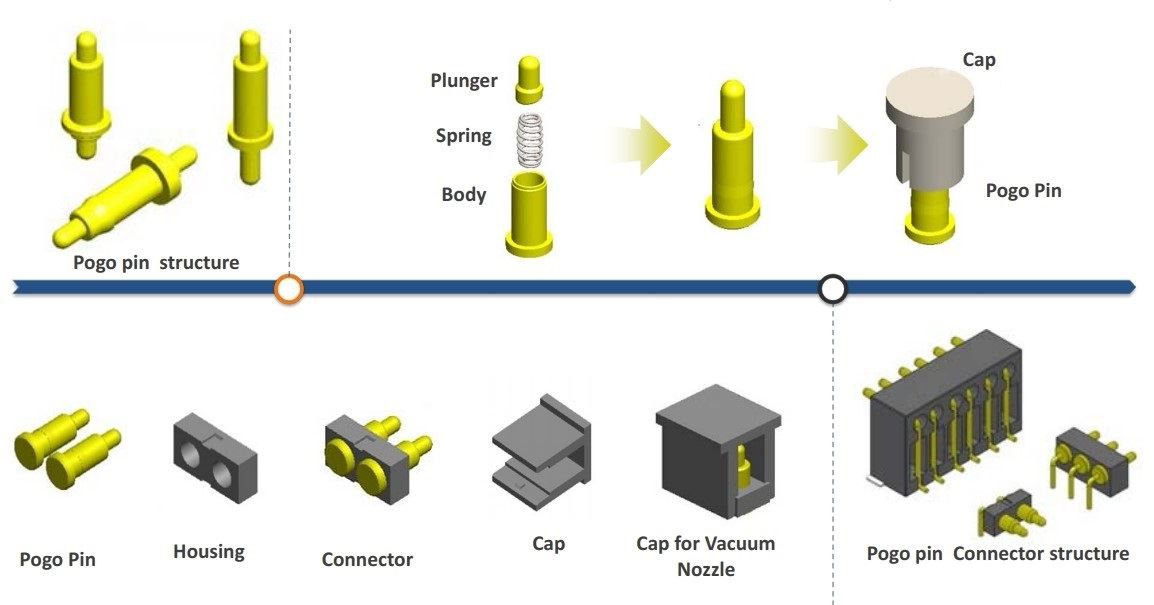

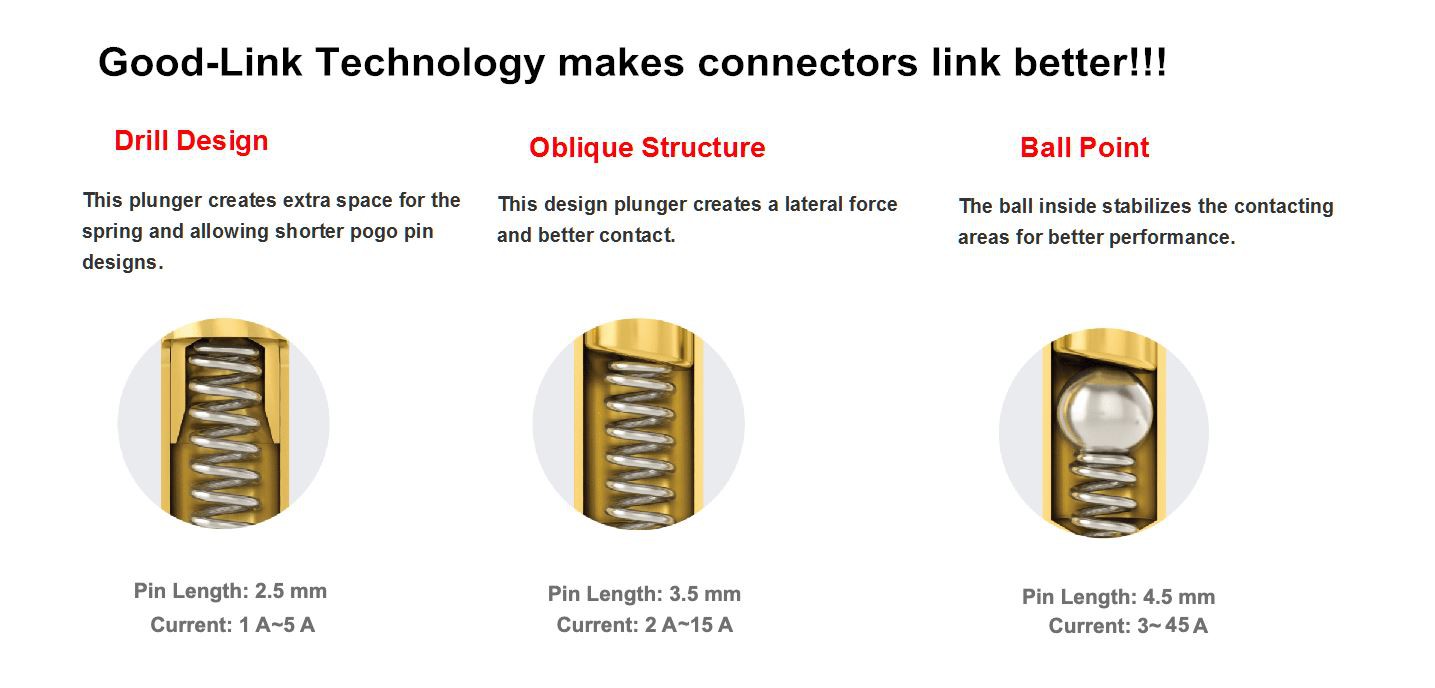

The spring-loaded Pogo pin is composed of the plunger, needle body, springs, and other parts. In order to stabilize the performance of the connector, connector manufacturers divide the high current spring-loaded Pogo pin into three types: Drilling structure, Oblique Structure, and needle Ballpoint structure.
Pogo pin connector is a precision connector used in all electronic equipment such as mobile phones, computers, automobiles, aviation, etc. It is widely used in semiconductor equipment, and its main function is to connect.
According to different product applications, pogo pin connectors have different appearances, but there is a precision spring structure inside as a whole. The surface of the product is usually plated with gold or nickel according to different products. Pogo pin connectors range from a single pin to dozens of single pin combinations, forming different connector shapes in different products. When the product has more than a single needle, there is usually a rubber sleeve made of environmentally friendly plastic to fix the pogo pins together, and the rubber sleeve is usually black.
The function of the pogo pin connector is the connection of the connector, such as the most common mobile phone charger head and the contact inside the mobile phone charging port. Both parts have connectors. In addition, there is a pogo in various interfaces inside the car. The existence of a pin connector.
