How to design a magnetic data cable?

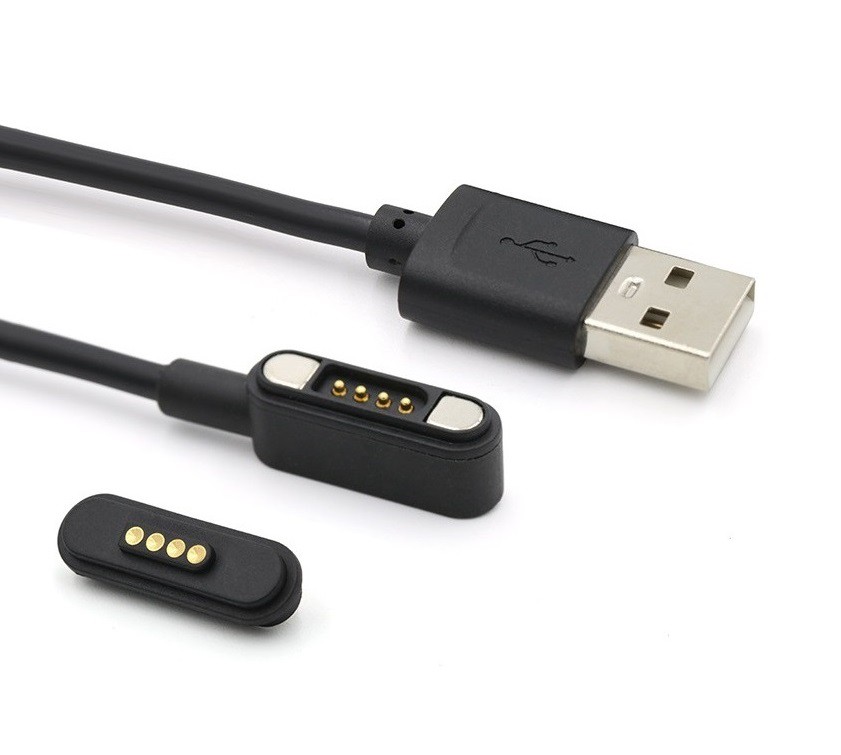

The magnetic data cable refers to the charging cable that connects and charges through the magnet male and female pair. Magnetic charging cables are also called magnetic charging cables, magnet charging cables, magnetic charging cables, magnetic charging cables, magnetic data cables, etc. The magnetic data cable is mainly formed by the magnetic attractor and the wire assembly.
In terms of application, magnetic attractors are mainly used in smart wearables: smart rings, smart collars, smart pendants, children's smartwatches, smart bracelets, smart school bags, smart clothing, smart gloves, smart shoes, Bluetooth headsets, etc., smart homes: Smart home appliances, air purifiers, automatic controls, water purifiers, smart cups, smart door locks, safes, etc., consumer electronics: Bluetooth headsets, mobile power supplies, children's toys, cameras, beauty equipment, lighting equipment, rehabilitation training machines, Scanners, etc.; aerospace, medical equipment, automotive electronics, automated industrial equipment, data communication equipment, industrial testing equipment, wireless equipment, orbital mobile smart cars; virtual reality equipment (VR), drone equipment, intelligent robot equipment.
Its design principle can be summarized as the product realization function, which is mainly determined by the qualitative structure of the pogo pin, and the tightness of the product components assembly process. These small parts require very precise process requirements, and the assembly tightness must be excellent. Otherwise, it will cause unstable product performance, or PIN card, spring burning, etc., which will affect the stability of the entire product.
Compared with the traditional charging method, the magnetic data cable can reduce the number of times of plugging and unplugging the charging product, thereby increasing the life of the socket. In addition, most of the magnetic data cable adopts a blind charging method, as long as it is placed in the designated position, it can be automatically sucked up and started to charge to achieve the connection effect. From this point of view, the magnetic data cable is automatically connected by the principle of magnetic attraction, thereby prolonging the service life of the product and making people's lives more convenient.
