Detailed introduction of pogo pin connector

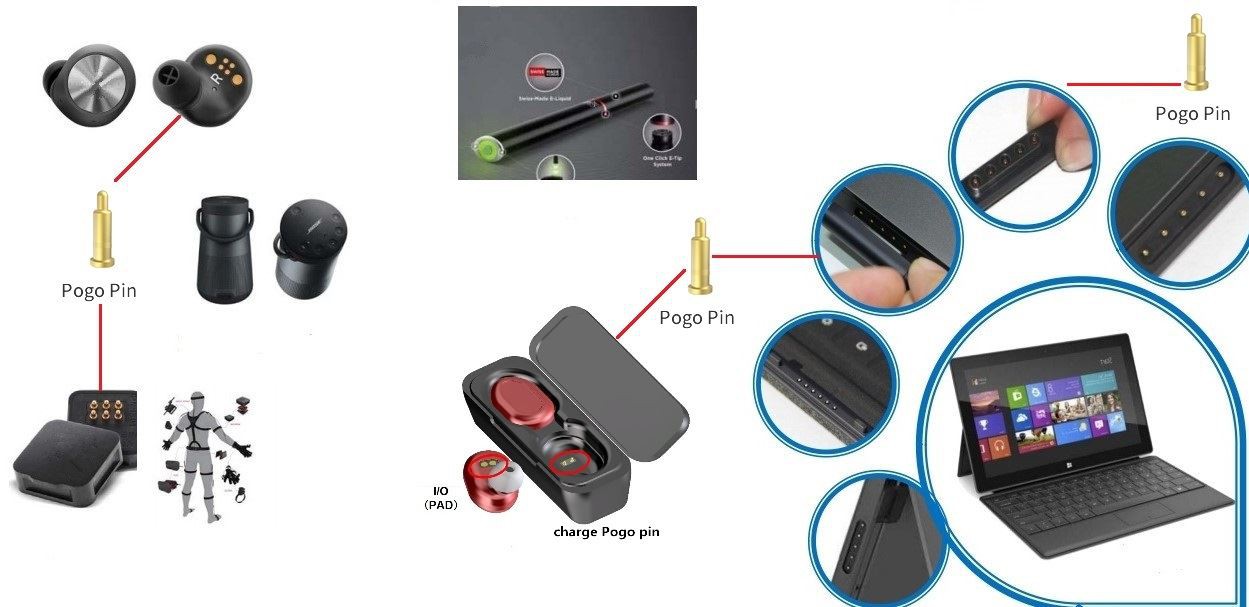

As an indispensable component in electronic products, pogo pin connectors are well-designed, which can not only save space but also greatly reduce the difficulty of assembly. In recent years, electronic products have developed in the direction of light, thin and compact, and electronic manufacturers are in order to save space has enabled the rapid development of pogo pin connectors. The detailed introduction of pogo pin connectors is as follows:
1. Stable contact resistance;
2. Durability;
3. Mechanical toughness;
4. The connector is easy to install;
5. Small size, high density, and lightweight;
6. Good mesh and separation feel;
7. Low meshing force
8. Orientation protection;
9. Sufficient connection performance;
10. Waterproof;
11. Anti-electromagnetic radiation;
12. Insulator: wide temperature range, self-extinguishing;
13. Easy wiring harness assembly;
14. Easy to repair.
Elastic pin connector:
Robust and reliable elastic pin connector, suitable for demanding but compact applications.
Sturdy, durable, and reliable elastic pin connector, suitable for demanding applications, where size and weight are of the utmost importance.
The connector can withstand shock and vibration while maintaining its electrical integrity. They provide a variety of options for specific needs and applications: plastic spacing 25 mil (.64mm) centerline and 9.0 mm mating length: the smallest military-quality circular connector at present, the outer diameter is extremely small, ranging from 3.1mm to 5.5mm Wait. Threaded metal: connectors with different waterproof and sealing grades up to IP68 can be configured.
Housing material and surface treatment include nickel-plated brass and back oxide stainless steel. Twist lock: sizes include 05, 12, 16, and 27. The terminals have discrete wires and cables. Fracture: A connector designed to release when subjected to a predetermined force due to an additional retaining spring in the design. It also provides a pair of additional waterproof seals up to IP68. IP67 disconnect: Like all loops, these use the Flex-Pin contact system. The spacing is .64mm centerline, and the smallest outer diameter ranges from 8.3mm to 9.8mm.
