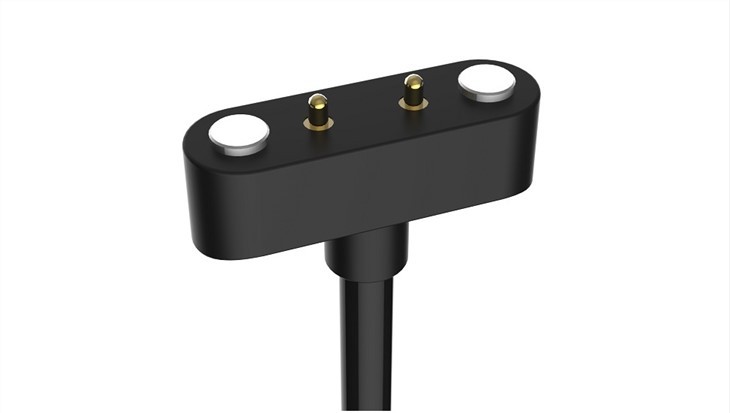

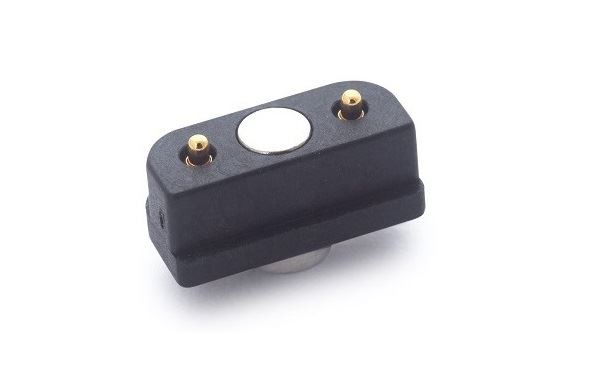

Magnetic 2 Pogo Pin Connector
The Magnetic 2 pogo pin connector production plant area is strictly implemented by the 7S standard, the dust-free workshop is used for production operations and the working environment is clean and tidy. We strictly implement quality control by ISO90001 quality management system standards.
We have an independent laboratory and are equipped with related experimental equipment, roughness tester, elastic impedance tester, life tester, current temperature rise tester, electroplating film thickness tester, salt spray tester, high and low-temperature environment tester, ROHS measuring instrument, etc.
Magnetic 2 pogo pin connector We can ensure the quality of products in the process of product design, development and manufacturing, and at the same time provide customers with technical support such as synchronous development.
SPECIFICATION | ELECTRICAL PERFORMANCE |
| 1.0 Housing： HTN UL94-V0 | 1.0 Rated voltage(Per Contact): 12 Volts |
| 2.0 Magnet： Al-Fe-B N35 Ni | 2.0 Rated Current(Per Contact): 5A maximum |
| 3.0 Contact plating:brass Au5u"over 50-100u" Ni | 3.0 Insulation Resistance: 100MEGA OHMS Minimum |
| 4.0 Contact solder area plating: brass Au5u" over 50-100u" Ni | 4.0 Dielectric Withstanding Voltage: 100VRMS at 60HZ |
| 5.0 Spring: SUS | 5.0 Contact Resistance: 100mΩ maximum at pogo pin |
| 6.0 Spring force：80±20g | 6.0 Adsorption force：600g |
| 7.0 Pitch：2.80mm | 7.0 Mechanical life:10000 cycles Min |
1.0 Automatic positioning and butt suction connection through the male and female end magnets, which can avoid plug-in butt and effectively prevent foolishness.
2.0 It is convenient to disconnect the suction port, which can effectively prevent the machine from being broken or broken by external forces.
3.0 Charging is more efficient, charging and transmission are synchronized at the same time and withstand large current transmission 1A-10A.
4.0 Long life span, at least 10,000 times or more.
5.0 Waterproof rating can reach up to IP68.
6.0 It can be customized according to customer needs to meet different application needs of customers, improve product quality, and increase product selling points.
