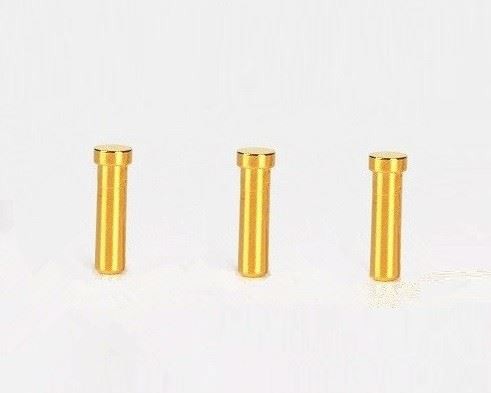

Gold Plated Solid Pin Female Pogo Pin

Gold Plated Solid Pin Female Pogo Pin

Main feature: High resistance to salt spray 1000 H+

High sweat resistance 240 H+

Meet biocompatibility requirements (such as nickel release testing)

Gold Plated Solid Pin Female contact Pin

Types and Applications of Charging Contacts (Solid Pins)

The charging contacts (solid pins) can be divided into three types: flat bottom type, plug-in type, and wire-bonding type according to the welding type.

Charging Contact  Solid PIN Connector

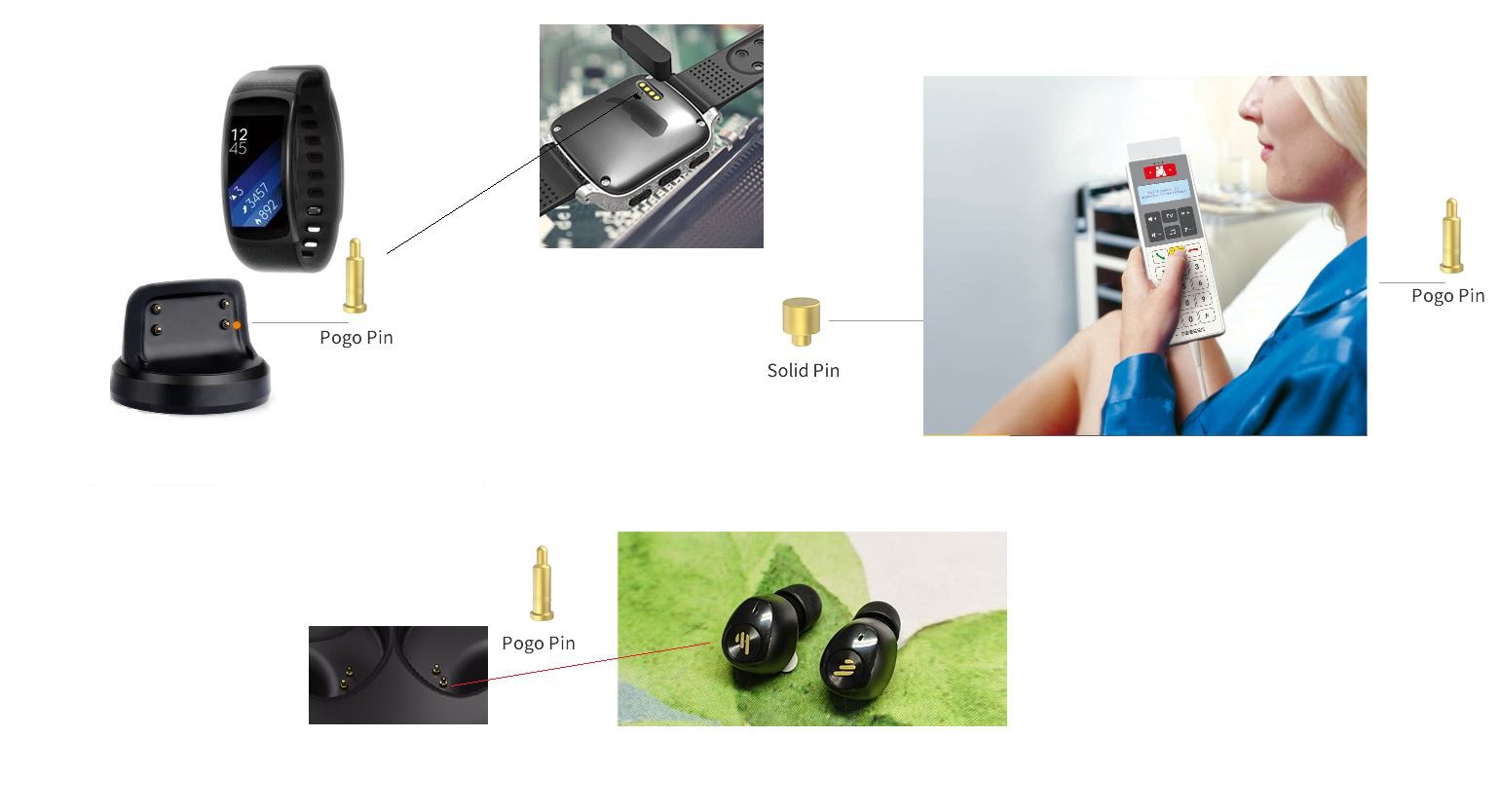

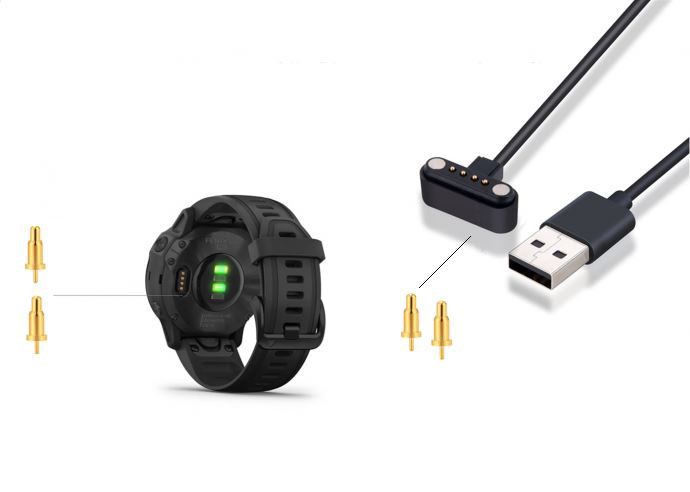

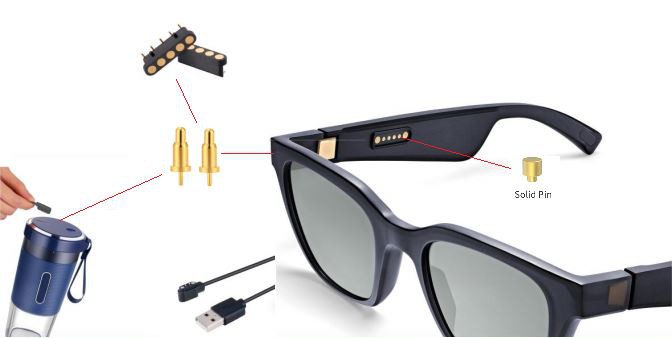

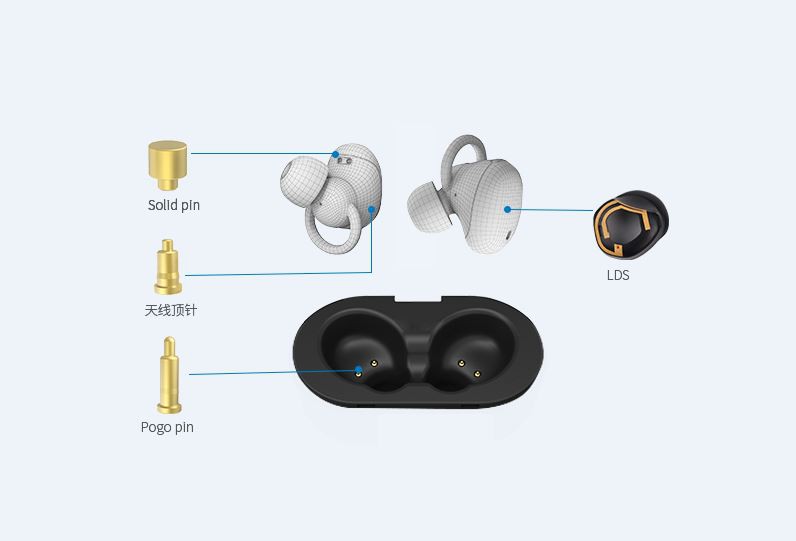

We provide high-precision charging contact (solid Pin) car parts and connectors of various structures, which are used together with pogo pins, which are widely used in smart wearable fields such as TWS earphones, watch bracelets, etc., fully satisfying the needs of different customers. Appearance, assembly, corrosion resistance, and other requirements.

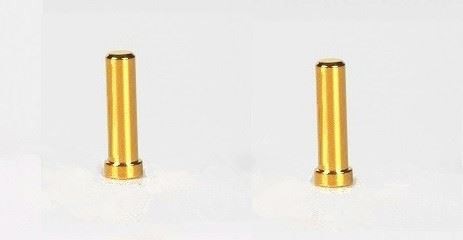

Gold Plated Solid Pin Female Contact charging Pin

Inner concave and convex arc surface contact surface. The concave structure is easy to accumulate dust, which affects the contact stability; the inner concave and convex surfaces are difficult to measure, and the consistency is difficult to control.

Gold Plated Solid Pin Female charging contact Pin

Flat contact surface, The flat contact surface is used the most, and it is relatively easy to process and control.

Common materials for charging contacts solid Pin

Commonly used copper materials for charging contacts (solid Pin)

· Lead Brass: C3604; C3602

· Lead-free brass: C6801

· Lead-free tin bronze: C5191 C5210

· Leaded tin bronze: C5440

·Beryllium copper C17300

·Copper tellurium C14500

Gold Plated Solid Pin Female Pogo Pin

Charging contacts (solid Pin) commonly used stainless steel

·SUS316LF

·SUS303

·SUS904L (high salt spray resistance, high sweat resistance)

·SUS430 (magnetic, can attract each other with magnets)

· Hastelloy C276, C-22, Hastelloy alloy X (high salt spray resistance, high sweat resistance)

Gold Plated Solid contact Pin Female charging Pogo Pin

The main factors to consider when selecting materials

Hardness & Machinability

·Conductivity

·Submission strength

·Scalability

·cost

Corrosion resistance, environmental performance, etc.

Gold Plated Solid Pin Female Pogo Pin has been widely used in medical, smart home, smart wear, TWS headset, and other industries and fields.
