6 Pin Right Angle Pogo Pin Connector
6 Pin Right Angle Pogo Pin Connector is a type of connector that is widely used in various industries. It is designed to provide a secure and reliable electrical connection between two devices. The connector consists of six pins that are arranged in a right-angle configuration.
One of the main advantages of 6PinRightAnglePogoPinConnector is its compact size. It is small enough to be used in devices with limited space, such as smartphones, tablets, and miniaturized electronic devices. It is also lightweight and easy to install, making it suitable for high-volume production environments.
Another advantage of the 6Pin Right Angle Pogo Pin Connector is its high reliability. It uses spring-loaded pins that make firm and consistent contact with the mating surface. This ensures that the electrical connection is stable and free from signal noise and interference. This makes it ideal for applications that require high-speed data transmission or high-frequency signals.
6Pin Right Angle PogoPin Connector is also highly customizable. It can be designed to meet the specific requirements of different applications, such as pin count, pitch, and plating. This makes it a versatile connector that can be used in a wide range of industries, including consumer electronics, medical devices, automotive, and aerospace.
In conclusion, 6PinRightAnglePogoPinConnector is a highly reliable, versatile, and customizable connector that is widely used in various industries. Its compact size, high reliability, and customization capabilities make it an ideal choice for applications that require a secure and stable electrical connection.
Well adapted to the high-end needs of the market, it is widely used in magnetic connectors, medical equipment, security equipment, computer digital (tablets, laptops, audio-visual equipment), TWS Bluetooth headsets, smart wearables (bands, watches, VR, AR) ), smart home, smart door locks, smart cameras, smart robots, e-cigarettes, drones, shared charging, printing devices, GPS devices, 5G communications, new energy vehicles, radio frequency antennas, automation, and industrial equipment; aerospace models, Military electronics and communications, etc.;
We're a Chinese technology company and original manufacturer that produces high-quality POGO PIN connectors that integrate design, R&D, manufacturing, electroplating, assembly, packaging, and sales.
| Materials and plating for Spring Pogo pins | |||
| plunger | Material | BeCu | Most used material for spring probes for semiconductors. |
| Material | Pd Alloy | Effective for anti-solder migration. No plating is needed. | |
| Plating | Au Alloy | Hardness is higher than Au(Gold) plating and is effective for anti-solder migration. | |
| Plating | Au(Gold) | Good electric conductivity. | |
| Barrel | Material | Copper | Brass, Phosphor Bronze, Nickel Silver, BeCu |
| Material | Alloy | Barrel developed by ourselves. Outer diameter is available from 0.11 to 0.42mm | |
| Plating | Au(Gold) | Good electric conductivity. | |
| Spring | ― | Spring Steel Wire (SWP)（Music Wire） | Operating temperature: -45~125℃ |
| ― | Stainless Steel Wire (SUS) | Operating temperature: -45~140℃ | |
| ― | Stainless Steel Wire for high temperature | Operating temperature: -45~200℃, developed by ZZTKJ. | |
A right-angle connector belongs to the technical field of connectors and aims to solve the problem of large volume in the prior art, including a shell, a base, a sheet-like snap, a fastener, and an insulator rubber core, the same number of female terminals and four-pin terminals.
The shell is a "D"-shaped thin-walled structure, the insulator rubber core is filled in the shell on the side close to the base, the female terminal and the four-pin terminal are electrically connected and arranged in the shell and the base at a right angle, and the female terminal end is in the shell, Only the connection holes are exposed after being covered by the insulator rubber core, the 6 pin terminals are in the base, the shell is fastened on the base, the sheet buckles are symmetrically arranged on both sides of the base, and the buckle ends of the sheet buckles Parallel to the base, there are two fasteners, which pass through the casing in turn, the base and the sheet-like buckle are fixed in the installation position, and the sheet-like buckle and the four-pin terminal are higher than the side of the base that is perpendicular to the casing, and the female The terminals are arranged in three rows, and the four-pin terminals are arranged in two rows.

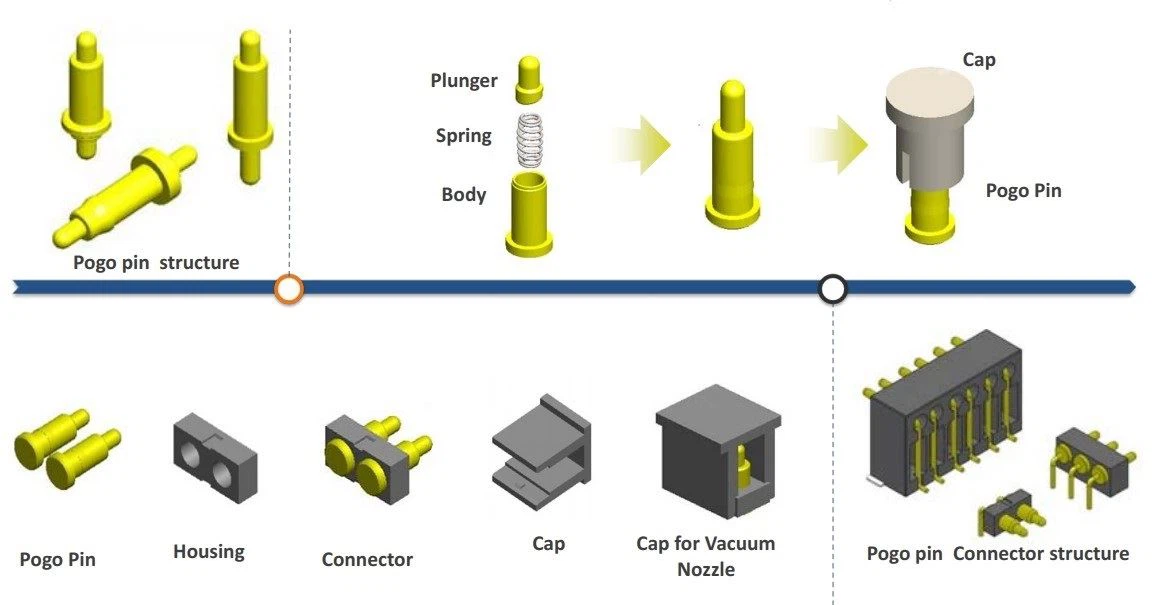

A basic spring-loaded pin consists of 3 main parts: a plunger, barrel, and spring. 2.54mm pitch pogo pin connector.
Packing and Certificate:
Our right-angle connector portfolio gives you the design flexibility you need to solve specific performance challenges. You can consider our high-speed backplane connectors for server, switch, router, and fiber optic transport applications.
We apply our system-level signal integrity design expertise to every high-speed product to get the best performance from the connector. The modeling and simulation skills we acquire in our labs. Our pogo pin products have been successfully and widely used in product areas: smart wearables, TWS Bluetooth headsets, Bluetooth speakers, smart homes, smartphones, 5G communications, medical equipment, portable electronic products, etc.
Hot Tags: 6 Pin Right Angle Pogo Pin Connector, China, suppliers, manufacturers, factory, customized, wholesale, buy, bulk, in stock, free sample
