Provide your customized and standard E-bike connector with the best choice!
We are very excited to announce that we have a new line of E-Bike charging connectors. With the success of the reform of the electric scooter market, we decided to expand into the electric bicycle market, which we call E-bike.
Electric bicycles will gradually replace typical bicycles. For today's young and old or those who move slowly, personalized transportation facilities are becoming more and more important, and electric bicycles have gradually become a symbol of living in the city. A popular commuter option for both fitness and activity.

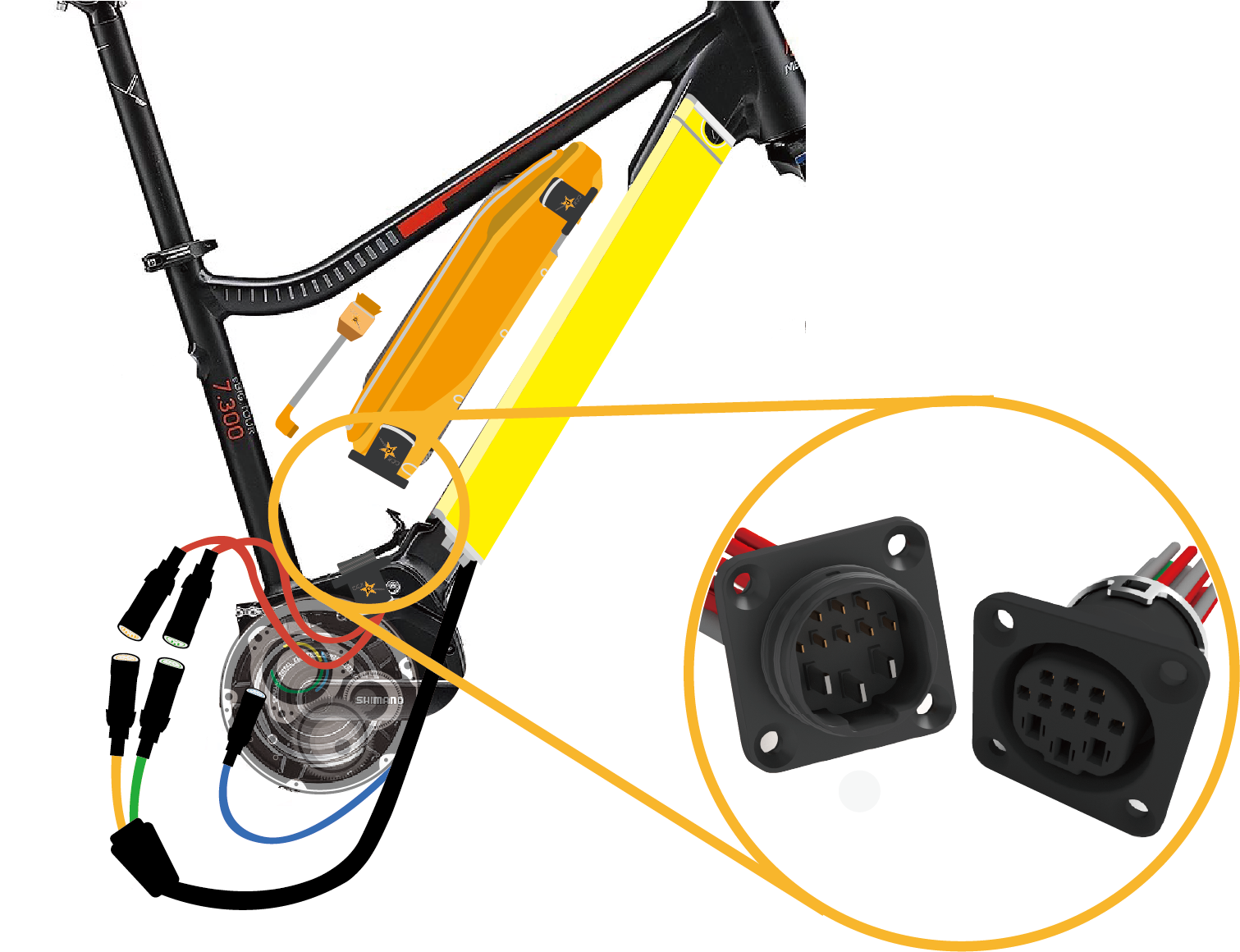

The electric bicycle connector has 3 power terminals and 8 signal terminals, allowing you to control it completely, and the plug design has a low insertion force and automatic calibration function, which is very friendly to operation.
项目 | 电源 | 信号 |
针脚数 | 3 | 8 |
尺寸(长*宽*高) | 29.5*29.5*23mm/ 29.5*29.5*24.6mm | |
直流电压 | ~400V DC Max | |
电流 | ~35A Max | ~5A Max |
线宽 | ~10AWG Max | ~20AWG Max |
使用寿命 | ~10000 times | |
防水等级 | ~IP67 | |
防火等级 | UL 94 V-0 | |
电阻 | 5mΩ | 20mΩ |
插拔阻抗 | 100MΩ@500VDC | |
交流电压 | 1000V AC | |
操作温度 | -40℃ - +85℃ (125℃ Peak) | |
