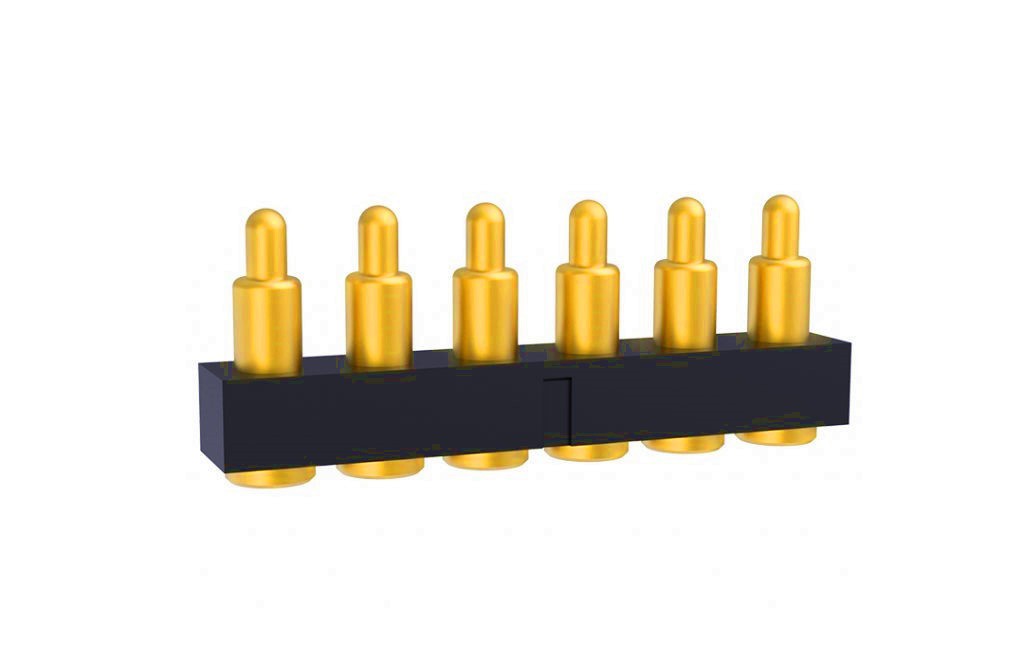

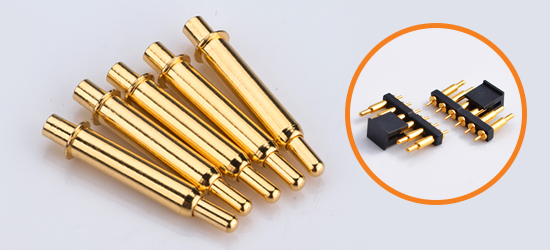

6 pogo pin connector
1. Spring pin connector material and plating: the barrel is brass alloy, nickel-plated 80-120μ, gold-plated 3μ, the needle is brass alloy, nickel-plated 80-120μ, gold-plated 3μ, and the spring is stainless steel SUS304.
2. Continuous working current of pogo pin connector: 1.0A, 3. Working voltage: lower than 12V@25℃ 4. Service life: more than 10000 times 5. Durability: 10000
1. Spring thimble connector material and plating:
The barrel is brass alloy, nickel-plated 80-120μ" gold plated 3μ".
The needle is brass alloy, nickel-plated 80-120µ" gold plated 3µ".
The spring is stainless steel SUS304.
2. Continuous working current of pogo pin connector: 1.0A
3. Working voltage: lower than 12V@25℃
4. Service life: more than 10000 times
5. Durability: 10000 times the spring force remains within the range.
6. Salt spray test: 5% salt solution has no rust for 48 hours.
7. Solderability test 230±5℃±1Seconds wet welding coverage rate is more than 95%.
8. Pogo pin connectors are widely used in mobile, communication, shared power banks, chargers, sports bracelets, GPS trackers, smart watches, beauty equipment, medical equipment, drones, etc.
9. Support OEM and ODM, we can customize any specification you want.
