The function of pogopin magnetic connector

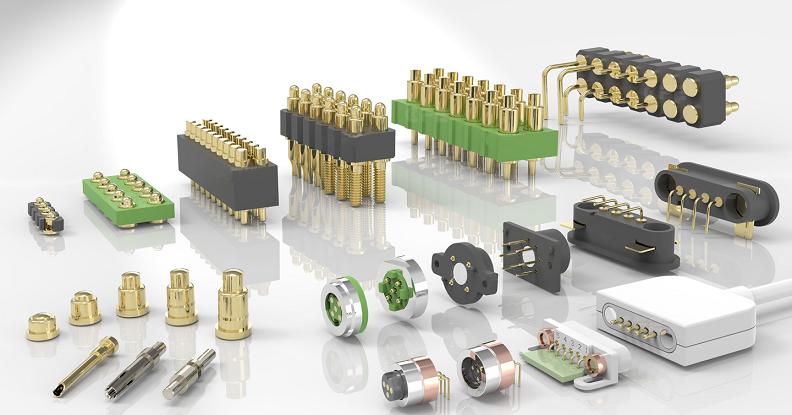

Magnetic connectors, also known as magnetic connectors, magnetic connectors, magnetic connectors, magnetic connectors, magnet charging heads, etc.; are widely used in electronic equipment, mainly composed of POGOPIN and magnet devices. Through the structural design of the magnet and the magnet in relative contact and attraction, a magnet-type connector with strong adsorption force and suitable for small structures and thin and light products can be provided. It has the following features:
1. Humanized design: automatic suction connection experience
2. Humanized anti-fall: the suction interface is simple and convenient to disassemble, and it will not easily drive the machine;
3. Long service life: more than 100,000-200,000 functional connections;
4. Waterproof design: the female end of the host can be dustproof and waterproof (IPX8);
5. Fast charging time: can withstand large current transmission 5A-10A magnetic connector design;
6. Space saving: female connector and PCB transfer can realize POGO type and SMTDIP jumper connection;
7. Customization: Diversified styles, matching the shape of the host products, increasing product grades and selling points;
8. Magnet positioning: the magnet and the mechanism double contacts are used to protect the entire circuit from falling;
9. Environmental protection requirements: It has an excellent corrosion resistance grade (48H-120H) to meet the application in harsh environments.
