How to choose a suitable magnetic charging cable?

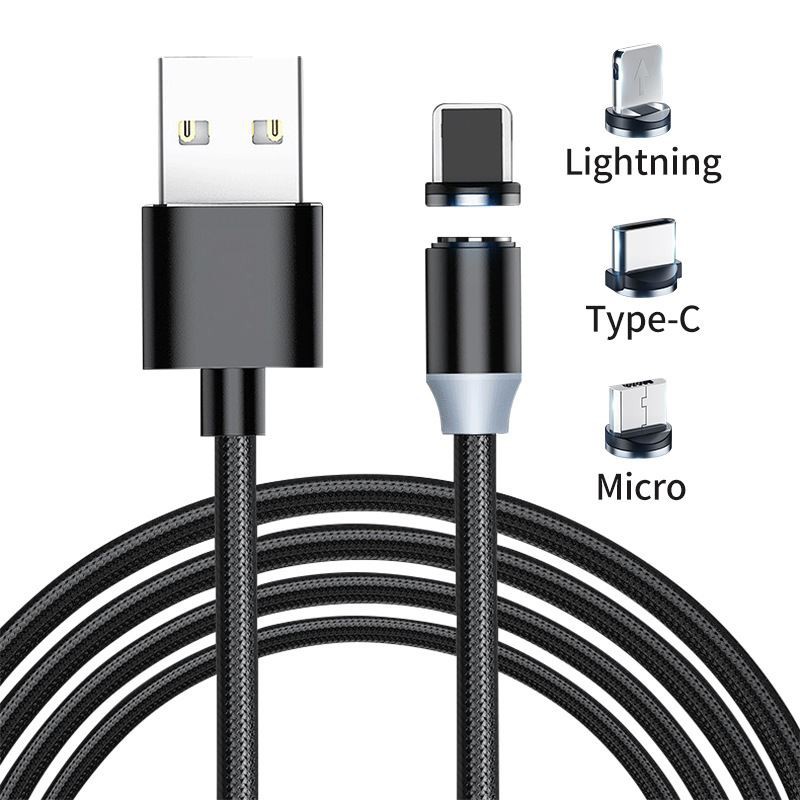

This is a magnetic cable with three heads, which is guaranteed to fit most mobile phones on the market. Another feature is that the maximum current that the cable can carry is 3A, which ensures that the fast charging protocol of Apple2.4 and QC3 can be used normally, which is much better than no-name cables.
After opening the package, we can see the whole picture of this data cable. The convenience of the magnetic data cable is indeed a lot. The first is to reduce the damage to the mobile phone interface by plugging and unplugging, and it can be easily operated with one hand, which is very convenient when driving; secondly, in actual use, if you do not know or forget it. Picking up the mobile phone will also reduce the damage to the mobile phone and the data cable itself.
The wire part is made of high-density nylon braided material. This material has good flexibility, is not easy to knot, and is resistant to pilling. It is currently the favorite among data cables.
The USB interface part is made of aluminum alloy material with anti-oxidation and anti-corrosion, and the SR I-head design can withstand bending, which is no different from most of the data cables of Jiletang. The joints are treated with fishtail rubber to improve the bending resistance.
The magnetic part of the connector is the core of this cable. If the design is not good, it will affect the charging and cause a high temperature. This data cable adopts a slot-type structure and is connected through five sets of contacts, which can effectively reduce the situation of poor contact. Thickened PCBA board can prevent corrosion, positive and negative adsorption, very stable.
There is also a detachable organizer on this data line, which is used to store and save three connectors, so it is also very convenient to take it out. However, in order to ensure that the connector can be stabilized in this organizer, inserting and pulling it out is a bit laborious and requires a certain skill.
Three joints can play like this, interesting, right? You can also play with the children and entertain them.
The interface can be placed on the interface of your mobile phone for a long time, but there is a little bulge, which depends on personal preference. If it is used, it can be connected by direct suction. Through the animation below, we can clearly see that its suction is strong enough to drag an iPhone 6 Plus, and it is still very firm.
Now we use the KT001 load device of POWER-Z to test the actual power. The first is the Apple iPhone XS Max, the remaining power is 45%, and the actual test power reaches 9.23W. Because the current Apple mobile phone only supports Apple2.4A and PD two kinds of fast charge, ordinary data cables can only use the Apple2.4A protocol, you don't need to consider if you like PD.
Then we tested the Huawei P30, the remaining power was 66%, we could see that the power reached 13.2W, and Huawei's own FCP fast charge was turned on, which performed well. The LED light on the connector part is not a breathing light, it lights up when it is powered on.
Finally, we tested the MicroUSB interface, using an older mobile phone OPPO R11s, the remaining power is 78%, the actual power is 7.61W, and the current peak value of the standard MicroUSB interface is only 2A. Not bad.
In fact, there are more or less small problems with the magnetic data cable. For example, if it is plugged into the mobile phone interface for a long time, it still has a certain impact on the interface. But for the convenience of the magnetic data cable, this problem is no longer a problem. The magnetic data cable is actually a good innovation, but generally big brands will go through development and debugging for a period of time, which also gives a lot of opportunities for three-no products to take advantage of. If you are going to buy a magnetic data cable, it is better to buy a big brand with design and development capabilities.
