4 Pin Magnetic Cable

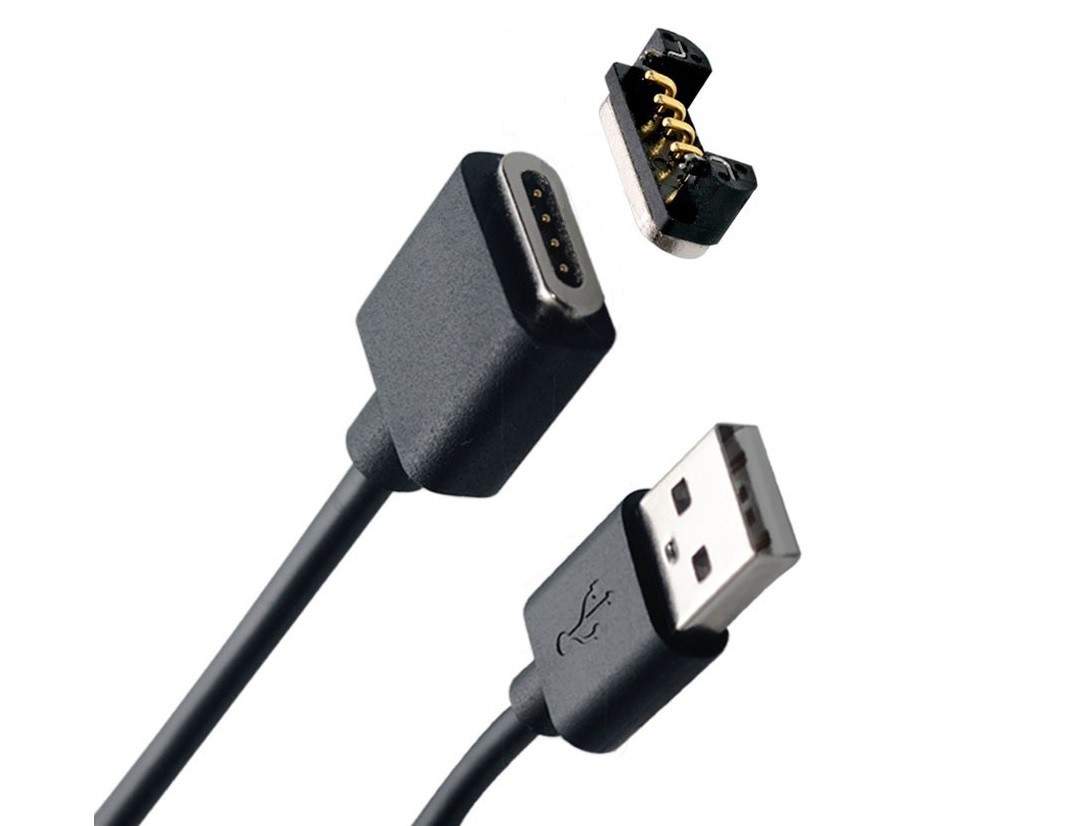

4 Pin Magnetic Cable Connector

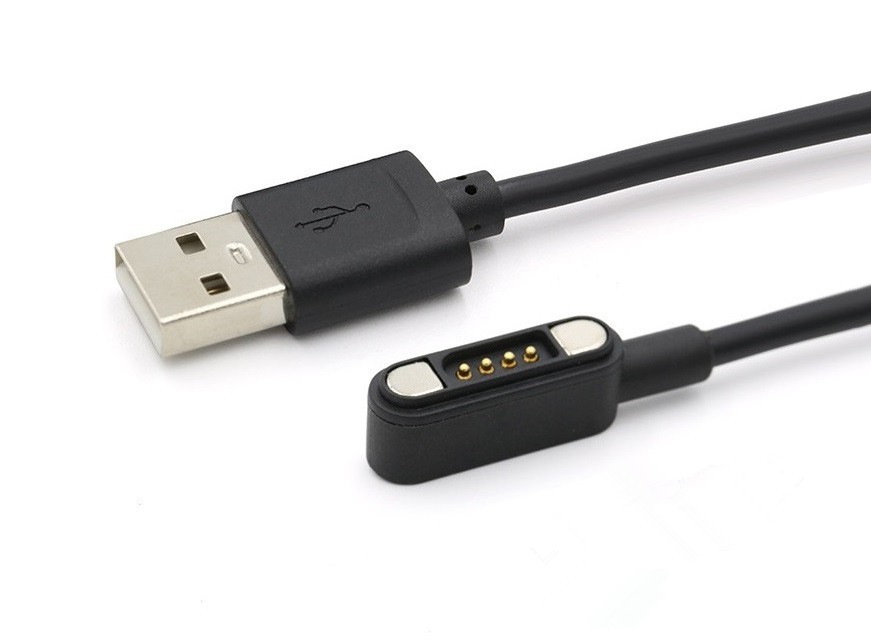

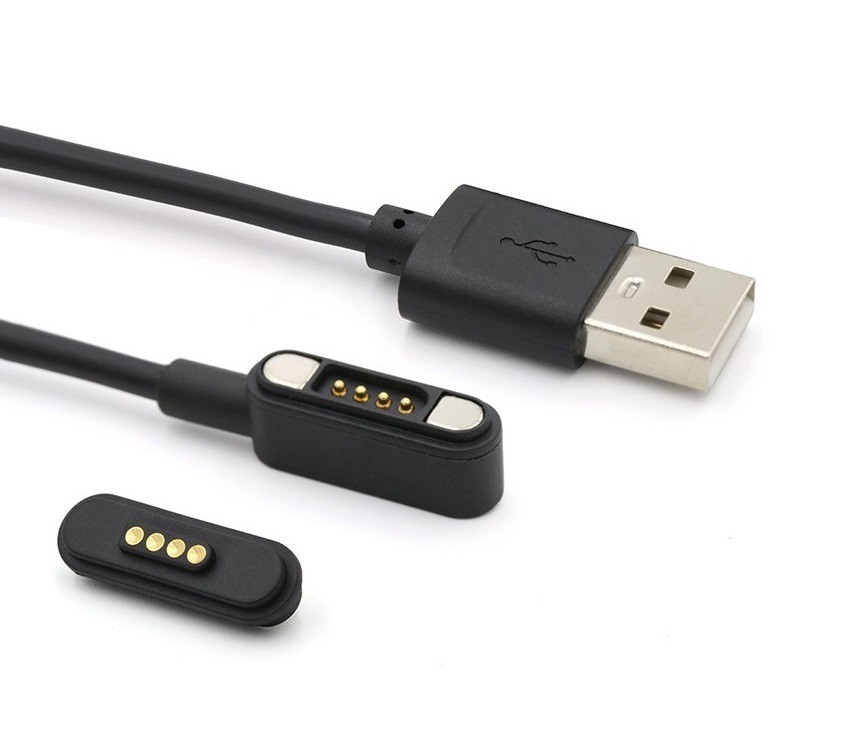

The magnetic charging cable includes a male end component and one that is coaxial with the male end component.

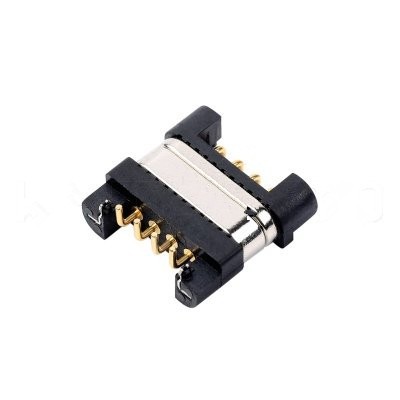

4 Pin Magnetic Male and right angle female connector

Receptacle components, using the principle of magnetic to achieve the effect of adsorption. The magnetic suction line is relatively easy to use in the process of use. A magnet is fixed on it, and a magnetic substance is also set at the other end. As long as the two ends are close to each other, suction and charging can be achieved. At present, according to the different charging products and structures, magnetic charging cables with various mechanical structures have been developed on the market, such as circular structures, square structures, elongated structures, special-shaped structures, etc., adsorption method magnet-magnet, magnet-Different choices of alloys, magnets and iron sheets can solve the circumvention of the magnetic field requirements of different structural ends, and the magnetic force will never decay.

4 Pin Magnetic Cable

Magnetic data cable is also called magnetic charging cable, magnet charging cable, magnetic charging cable, magnetic charging cable, magnetic data cable, etc. Mainly used in smart wear, 3C digital, smart home, vehicle navigation detection, medical equipment, and other electronic products to achieve charging, signal transmission, etc.

4 Pin Magnetic Cable

The structure of the magnetic data cable is mainly an outer sheath, an inner sheath, and a conductor. Common transmission conductors include copper and aluminum wire.

4 Pin Magnetic Cable

The outer sheath of the magnetic data cable is also called the protective sheath, which is a layer of sheath outside the power cable. This outer sheath plays the role of protecting the power cable. The outer sheath has powerful characteristics. Such as high-temperature resistance, low-temperature resistance, resistance to natural light interference, good winding performance, high service life, environmental protection, and other characteristics.

The characteristics of the magnetic 4 Pin charging cable

Relying on the magnetic attraction of magnets, the traditional data line connector and the line body are separated, and the two are automatically attracted within a certain distance by magnetism, so the magnetic data line is called magnetic line, magnetic data line, and magnetic charging line. In this way, the data cable can be plugged and unplugged with one hand, and in actual use, the magnetic charging cable is safer than the ordinary data cable.

4 Pin Magnetic Cable

Inner sheath: The inner sheath, also known as the insulating sheath, is an indispensable part of the middle structure of the power cord. The main purpose of the insulating sheath is insulation, which ensures the electrical power of the power cord is safe so that the copper wire and the air are not separated. There will be any leakage phenomenon, and the insulating sheath should be soft to ensure that it can be well embedded in the middle layer. It is a layer that wraps the cable between the shielding layer and the core, usually polyvinyl chloride plastic or polyethylene plastic. There are also low-smoke halogen-free materials. Use by the process rules, so that the insulating layer will not be in contact with water, air, or other objects, to prevent the insulation from being damp and the insulating layer from mechanical damage.

4 Pin Magnetic Cable

Slim size and miniaturization are widely applicable. Different from the traditional data cable interface that is common in life, the new magnetic charging cable interface has been reduced in size. Even if the mobile phone is used with a mobile phone case, the magnetic charging cable is also suitable for 90% of the mobile phone case can be used directly without removing the case, so it is suitable for use in increasingly miniaturized electronic products and equipment and can withstand more than 50,000 repeated plugging and unplugging times.
