Pogo Pin 3 pins connector

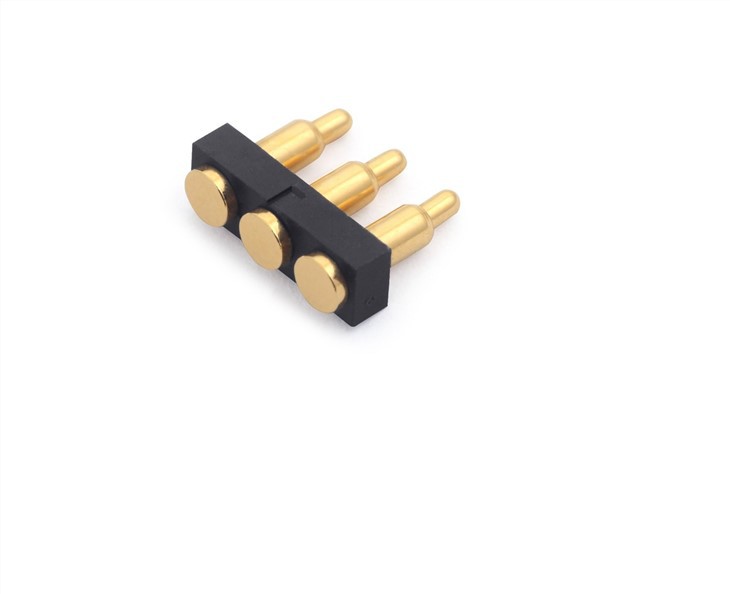

SMT Pogo Pin 1Row 3pins For Assembly Line

Specification

The Pogo pin Product specification is as follows:

Material materials and plating

1 Barrel is a brass alloy, which needs to be electroplated, nickel-plated and gold-plated. The thickness of the plating layer is different due to different product use occasions.

2 Plunger is a brass alloy, which needs to be electroplated, nickel-plated and gold-plated. The thickness of the plating layer is different due to the different uses of the product.

3 Spring is stainless steel SUS 304, or it can be electroplated piano steel wire.

4 The plastic is a high-temperature resistant material, such as PA46, PA4T, LCP, PA9T, and so on.

Pogo pin connector for PCB terminal Applied

As a battery spring-loaded SMT pogo pin connector supplier, our SMT Pogo Pin for the high current charge is applied for the adapter, circuit program, HMI solution, and PCB board design.

Parameters

1. Working voltage: 12V

2 Continuous working current: 1.0A

3 Service life: 10000 times

4 Working temperature: -25℃ to ﹢75℃ 95%R.H.Max.

5 Storage temperature: -40℃ to ﹢85℃ 95%R.H.Max.

Our SMT Pogo Pin design

How we do:

1. two well organized own brand audited factory

2. 38 advanced lathing lines and 12 quality Digital machine

3. Over 100 clients and 1000 orders around the world every year

4. 6 inline QIC and 12 final QC, Control Every step as your order

5. 136 skilled workers,15 experienced production workshop managers

6. 12 professional sales managers, 7*24 hours service

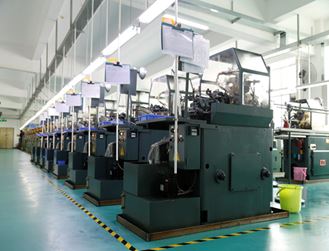

Production Machines & Testing Equipment

more than 80 automatic precision lathes

mature and stable manufacturing technology

What We Guarantee:

POGO PIN precision riveting machine

POGO PIN riveting test

Pogo pin Assembly line workshop

Professional technical team

Our Capacity

■Pogo Pin  1.3KK pcs / Day;

■New components 300  K Sets/ M

■Fixture parts  100 K  Sets/ M

■Precision parts 100  KK pcs /M

Quality Assurance System about spring contact pin

 Environmental performance

1 High-temperature resistance 260℃, no discoloration or blistering after 6min.

2 Constant temperature and humidity 95%R.H, 60℃, 96hours constant temperature and humidity test after contact impedance <200mohm, no apparent damage.

3 Salt spray test A 5% salt solution will be free of corrosion for 48 hours.

4 Soldering tin test 245±5℃, time 2~3 seconds, the wet area above 95%.

Service Customers

Electrical performance:

Contact resistance: The contact resistance at the working point is <30mohm.

Withstand voltage: 500VAC for 1 minute, the maximum leakage current is 0.3mA.

At present, our products have been successfully and widely used in product areas: smart wearable, TWS Bluetooth headsets, Bluetooth speakers, smart homes, smartphones, 5G communications, medical equipment, portable electronic products, etc.

The reliable and trusted Pogo Pin Manufacture! Good-Link Technology makes connectors link better.
