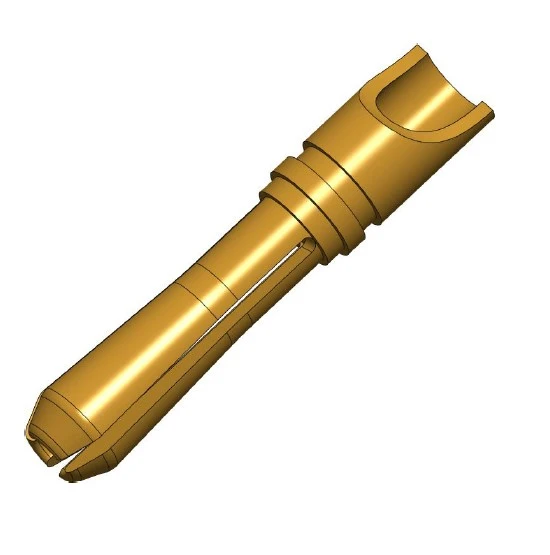

High Current Spring-loaded Pogo Pin

High Current Spring-loaded Pogo Pin

Founded in 2009, we are a comprehensive high-tech enterprise integrating design, R&D, manufacturing, and sales of precision pogo pin spring pin connectors and magnetic connectors. We also provide precision turning parts POGO PIN, injection molding parts, and magnetic connectors, magnetic charging lines, component assembly, and other services and the design, development, and manufacture of automated production and testing equipment.

Pogo pins are also called pogo pins or pogo pins. Conventional pogo pins are made of three parts: needle shaft, spring, and needle tube, which are riveted by precision equipment. CFE has developed dozens of new pogo pin structures for customers to solve special applications in the past ten years. : Precision insulating beads, precision positioning columns, precision positioning tail plugs, precision inner bushings, precision outer sheaths, precision steel balls, precision spring reeds, PEEK sleeves, sealing rings, and other components, and have obtained several pogo pin inventions and practical applications New patents.

Compared with the shrapnel connector of the same size, the pogo pin connector has a greater amount of compression and more stable contact. When subjected to a strong impact from an external force, the spring pressure change of the pogo pin connector is relatively small

1. Good contact reliability
The pogo pin connector has greater compression than the shrapnel connector of the same size, and the contact is more stable. When subjected to a strong impact from an external force, the spring pressure change of the pogo pin connector is relatively small.

2. Can effectively save PCB board space
Under the same amount of compression, pogo pin connectors take up less space than shrapnel connectors.

3. The contact point is more stable
The contact point of the pogo pin connector does not move when it is compressed, while the shrapnel connector will move relative to the position. The stable contact point can make the product obtain stable electrical performance and better play the performance of the product.

4. Longer service life
The pogo pin connector can be stretched at least 10,000 times, and the pogo pin connector with better quality can be stretched and stretched more than 100,000 times, which also makes the service life of the product longer.

5. Fast production speed and low cost
The pogo pin connector does not require mold opening and stamping, and the development, sampling, and mass production time are short, so the pogo pin connector is an economical and fast connector selection method.
