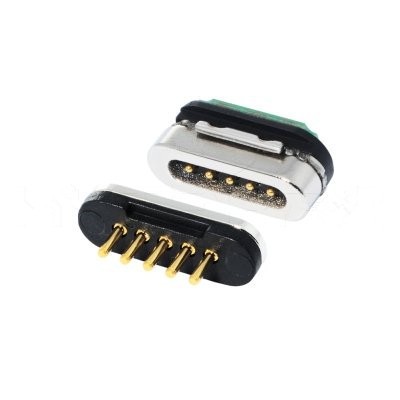

Spring-loaded Plated Gold Pogo Pin Socket

Spring-loaded Plated gold Pogo pin socket

We have been serving customers in the field of communication electronics. At present, this field has become one of the three major business directions that the company attaches great importance to. It mainly serves more than 10 customers in this field, which are distributed in two categories: military products and civilian products. Among them, military products are mainly based on several subsidiaries and supporting suppliers under the Aviation Industry Corporation of China, producing switch connectors, etc. The bullets needed on the components: In the civilian field, it mainly provides communication base station connectors for several leading enterprises in the industry led by Huawei: Pogopin, Pogopin connector, magnetic connector.

Spring-loaded Plated gold Pogo pin socket

Most of the projects we participate in in the communication electronics industry start from the early stage of research and development. We meet all-round requirements such as size, strength, conductivity, corrosion resistance, disease resistance, and consistency that customers put forward, from material washing to bullet design, Ding Yi setting, surface treatment, pre-pressing treatment, automatic sorting of measuring tooling, and other aspects to cooperate with customers to do research and development and manufacturing work.

Spring-loaded Plated gold Pogo pin socket

During the years of providing services to the above-mentioned leading companies in the communication electronics industry, we have continued to learn and grow: starting from the early stage of providing high-quality products, and then participating in the simultaneous research and development of core bombs and other components. Since 2018, it has cooperated with customers to develop intelligent manufacturing equipment such as fully automated spring-forming, sorting, and pre-assembly for a single project, which not only greatly improves production efficiency, consistency, and yield, but also helps customers solve large-scale automated assembly processes. Some difficult problems, greatly reducing costs and assisting customers to win greater business opportunities.

Spring-loaded Plated gold Pogo pin socket

The precise size and good consistency

Some customers found us by solving the problem that the original supplier's spring size often exceeded the tolerance, which is not old. It will affect the assembly efficiency of the customer's automated production line, and will also cause abnormal fluctuations in the spring force. We through the selection of a high-precision automatic spring coiling machine, supplemented by online measurement and sorting and installation, can be used in high-speed coil springs.

Based on the outer diameter tolerance, the tolerance is controlled within +1-0.01mm, and the free length tolerance is controlled within +/-0.03mm.

Inside, completely solve the customer's worries.

Spring-loaded Plated gold Pogo pin socket

Resist fatigue and avoid decay

The force value of the spring is attenuated, and the original size of the fatigue resistance is usually due to the obvious overstress of the spring yellow design.

force, which leads to the problem of obvious increase and decrease of spring length and force value of the spring in the early stage of use.  On the one hand, Tarot tries to help customers eliminate the risk of overstressing by optimizing the design; on the other hand, it takes the lead. Developed a fully automatic feeding and pre-pressing machine suitable for slender springs with an outer diameter of 0.8-3mm, which efficiently and stably

The overstressed spring is automatically shaped to meet the fatigue requirements of 5,000-100,000 times.

Spring-loaded Plated gold Pogo pin socket

Not easy to bend, no abnormal sound

Pogopin springs are particularly slender due to their large height-to-diameter ratio, and sometimes spring bending occurs during compression.

The problem of bending and friction noise. Aspects by balancing wire diameter, outer diameter, number of turns, pitch, stiffness and

The matching of many parameters such as the helix angle reduces the risk of bending during the spring pressing process; on the other hand, in the spring

A special stabilizing structure is added to the structure to further suppress bending and abnormal friction noise.
