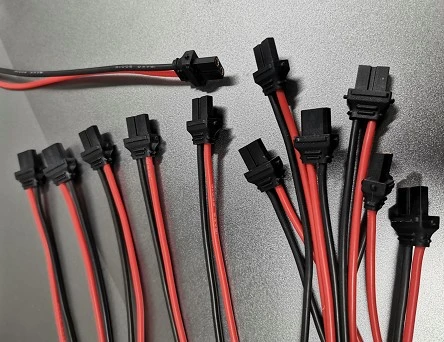

High Current 10A-15A Pin Connector

High Current 10A-15A pin connector Structural technical requirements:
1. Connectors include male, female, and male sockets. The connector type is 2P, and the reference pin spacing is 4.2mm;
2. The external structure of the male head includes 4 screw holes. The size requirements are shown in the figure below. The male head supports welding 18# AWG silicone wire:
3. The end of the female head is designed to be covered with rubber, and the length of the rear end of the rubberized head does not exceed 5mm. The female head supports the welding of 18#AWG silicone wire;
1. Female head 2. Male head 3. Male head seat 4. Anti-reverse insertion structure corresponding to male and female heads, and marked on the plastic shell+
5. The size of the male seat plastic shell is as shown in the figure, and the pin type also supports welding 18#AWG silicone wire;
6. The required range of insertion force: extraction force 1~2kg, insertion force 2~4kg;
Total length≤20mm

Electrical technical requirements:
1. Continuous current 12~15A, instantaneous current 25~30A;
2. Use voltage ≤ 250V, withstand voltage ≥ 1500V;
3. Contact resistance ≤ 0.8mΩ, insulation resistance ≥ 500MΩ;
4. The surface of the copper parts is gold-plated 2U, and the service life is more than 1000 times;
5. Support wire gauge up to 18# AWG;
6. Temperature resistance range -25~120℃;
7. Flame retardant grade UL94-VO, RoHS compliant;
Male head φ1,4 Copper piece 6,2 Female head Silicone wire Male head seat 8,4 Length after encapsulation≤5mm. Total length≤15mm N

The high current of the spring thimble can reach 60A, and the special structure can also reach hundreds of amperes. We have been committed to product innovation design and meeting the needs of the market and customers. We have never stopped researching and exploring high-current charging modules and customized high-current charging solutions with pogo pins as the core. We have excellent product design capabilities, structural Simulation capability, and complete pogo pin reliability testing capability to provide a safe and reliable pogo pin charging connection solution.

The high current range of pogo pins generally refers to more than 5A. With changes in market demand, diverse application scenarios, and the need for faster-charging rates, the design, and application of pogo pins for high current charging have increased challenges. In 2010, the first pogo pins with a transmission current of 30A were developed.

Now more and more people have bought cars for transportation, long-distance travel, and delivery of goods, which can be said to be a part of life. People spend more and more time in the car and sometimes use their mobile phones to watch videos or turn on the computer for office work in the car. As people stay longer in the car, the car charger can charge mobile phones, laptops, and other office equipment in the car. Naturally, it is as important as a charging treasure, and it is an indispensable and important accessory for every car owner.
